Teltonika TSW101
Product.Nr.: TSW101000000
Manufacturer: Teltonika
116,50 EUR
incl. 19 % VAT
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- delivery time auf Anfrage: sales@mikrotik-store.eu
- weight 0,44 kg
product description

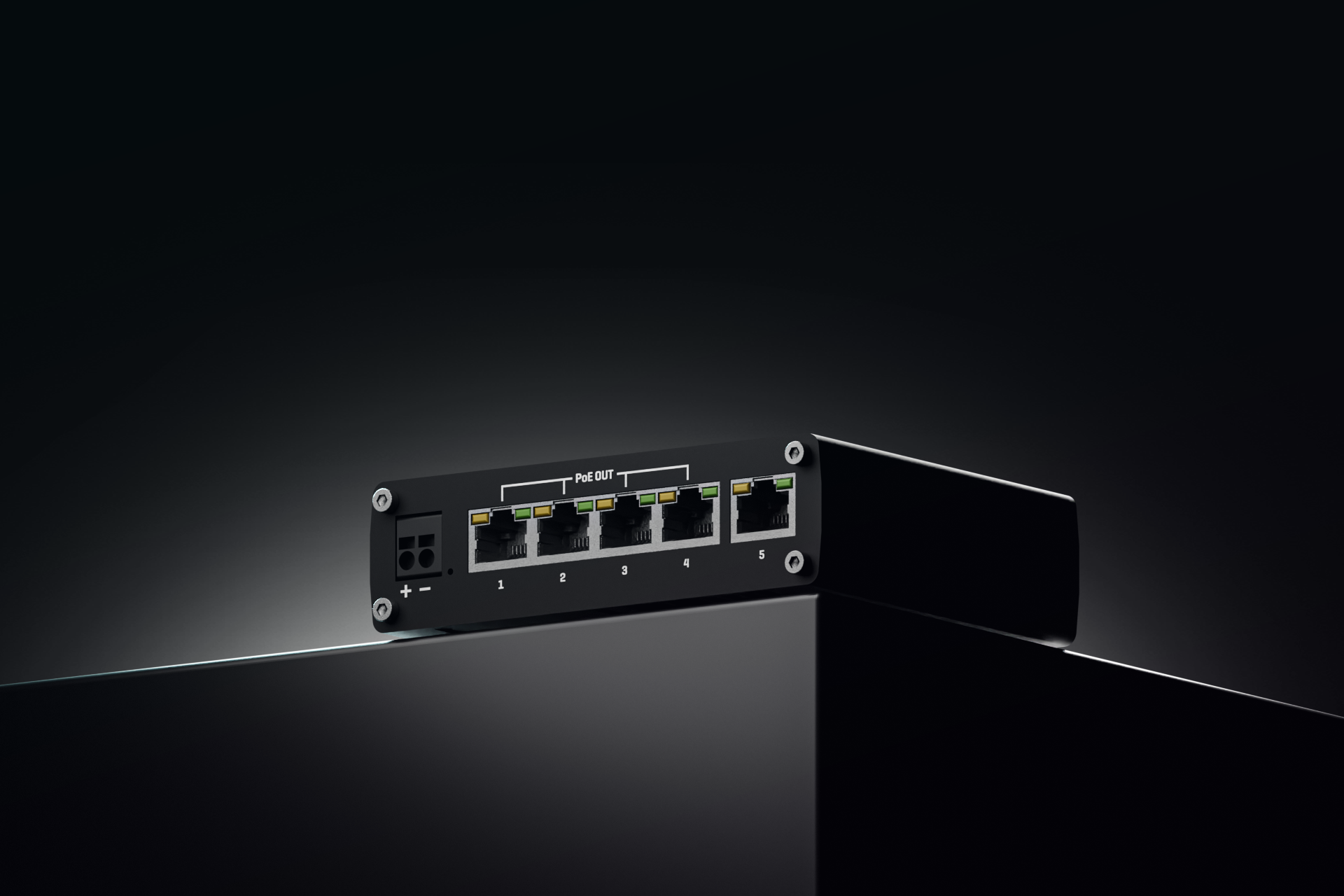

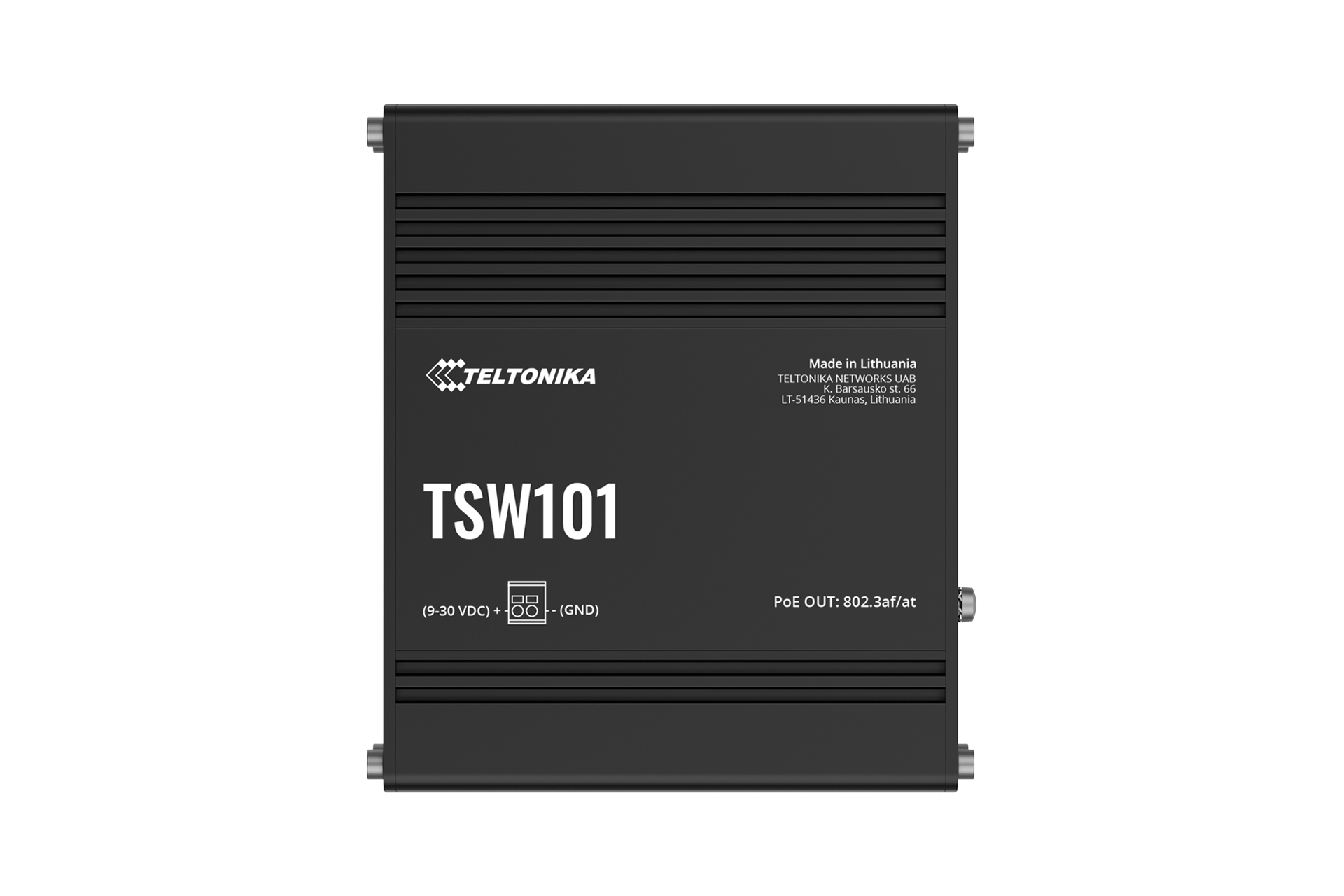

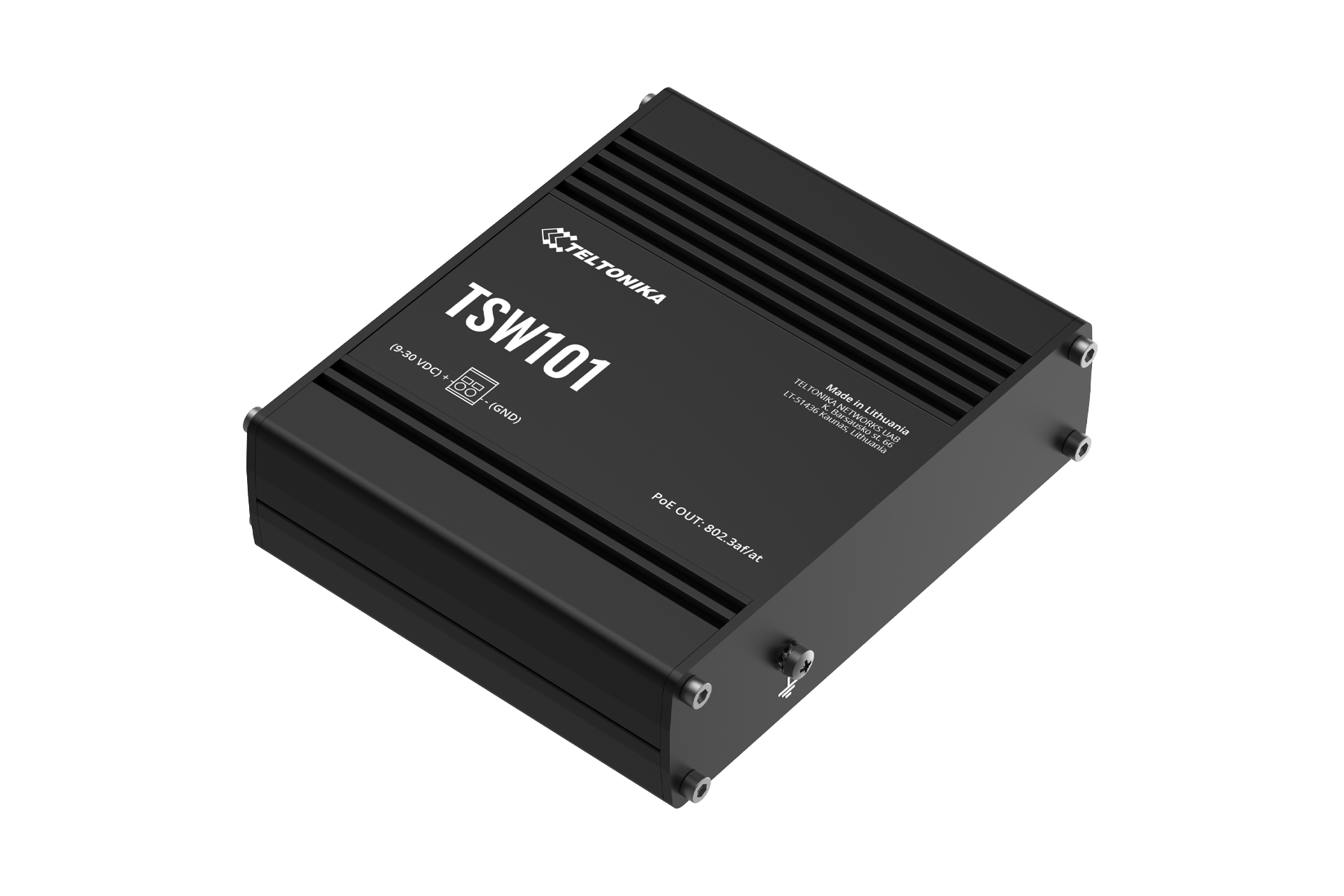

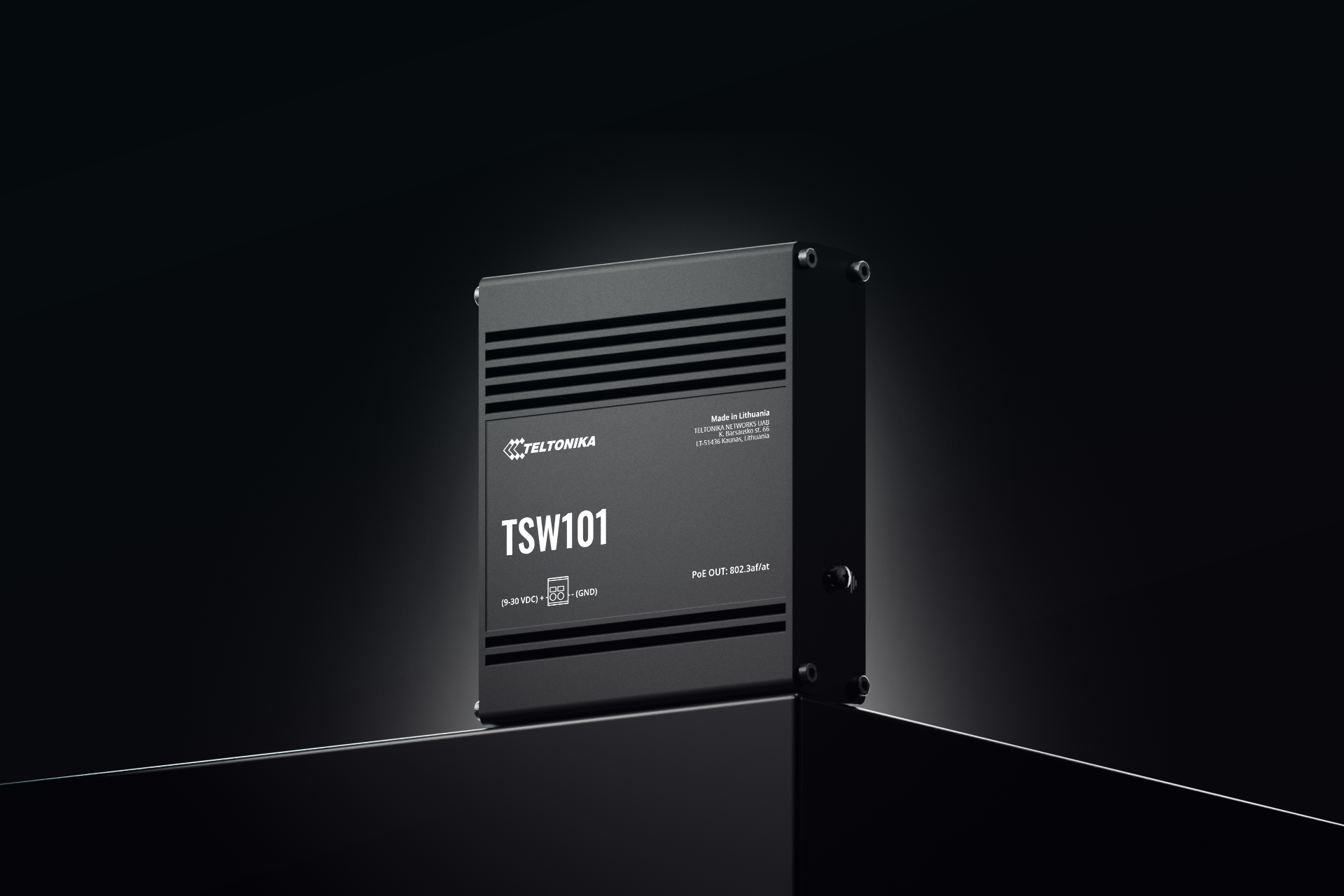

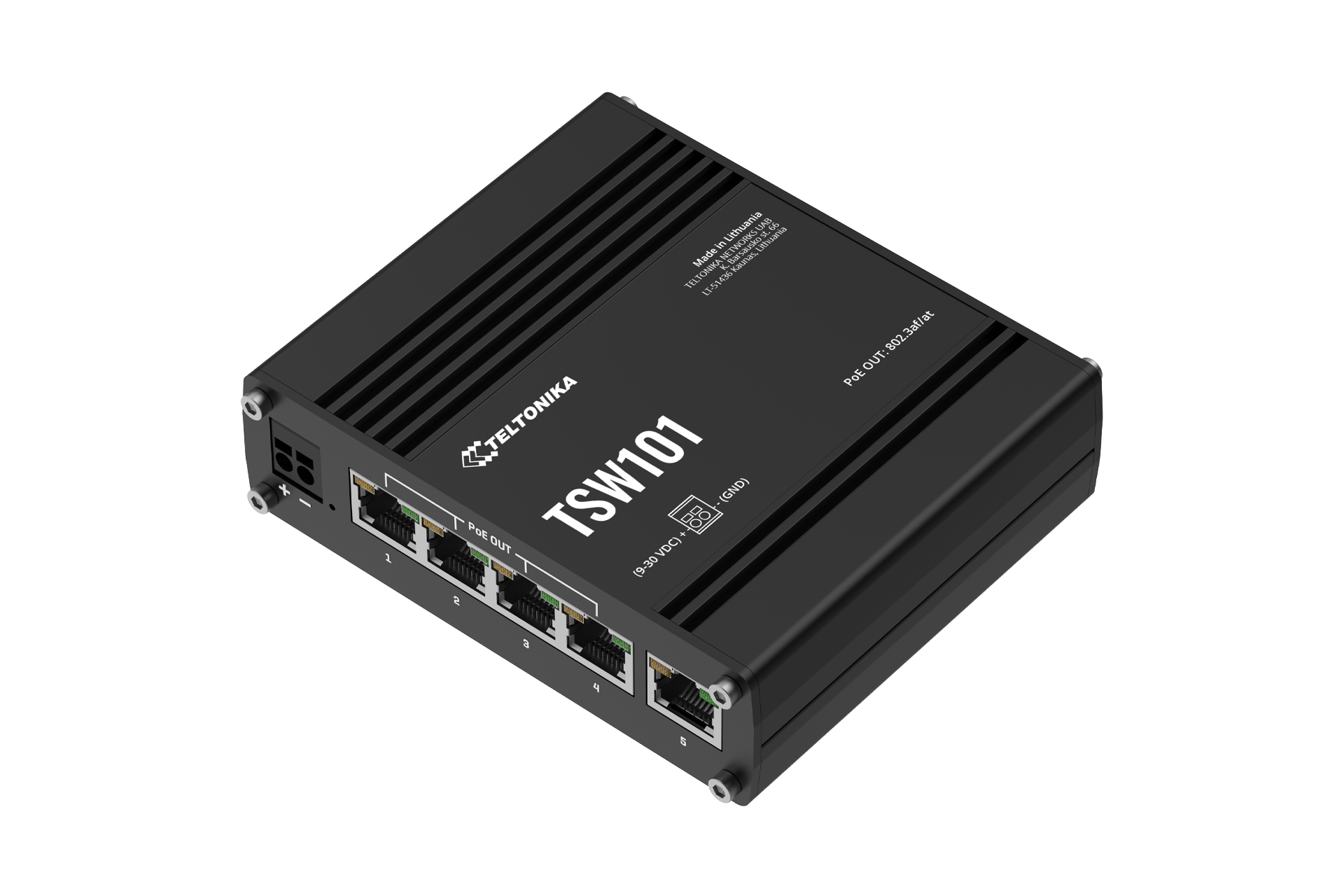

#1: TSW101
AUTOMOTIVE POE+ SWITCHTeltonikas first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
#2: Content of delivery
- TSW101
- QSG (Quick Start Guide)
- Packaging box
#3: Features
ETHERNET
-
LAN
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
POE
-
PoE ports
Port 1- 4
-
PoE standards
802.3af and 802.3at
-
PoE Max Power per Port (at PSE)
30 W
-
Total PoE Power Budget (at PSE)
60 W
-
Maximum Ethernet cable length
100 m
PERFORMANCE SPECIFICATIONS
-
Bandwidth (Non-blocking)
10 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Jumbo frame support
9216 bytes
POWER
-
Connector
2-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC
-
PoE-out input voltage range
9 – 30 VDC
-
Power consumption
Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
PHYSICAL INTERFACES
-
Ethernet

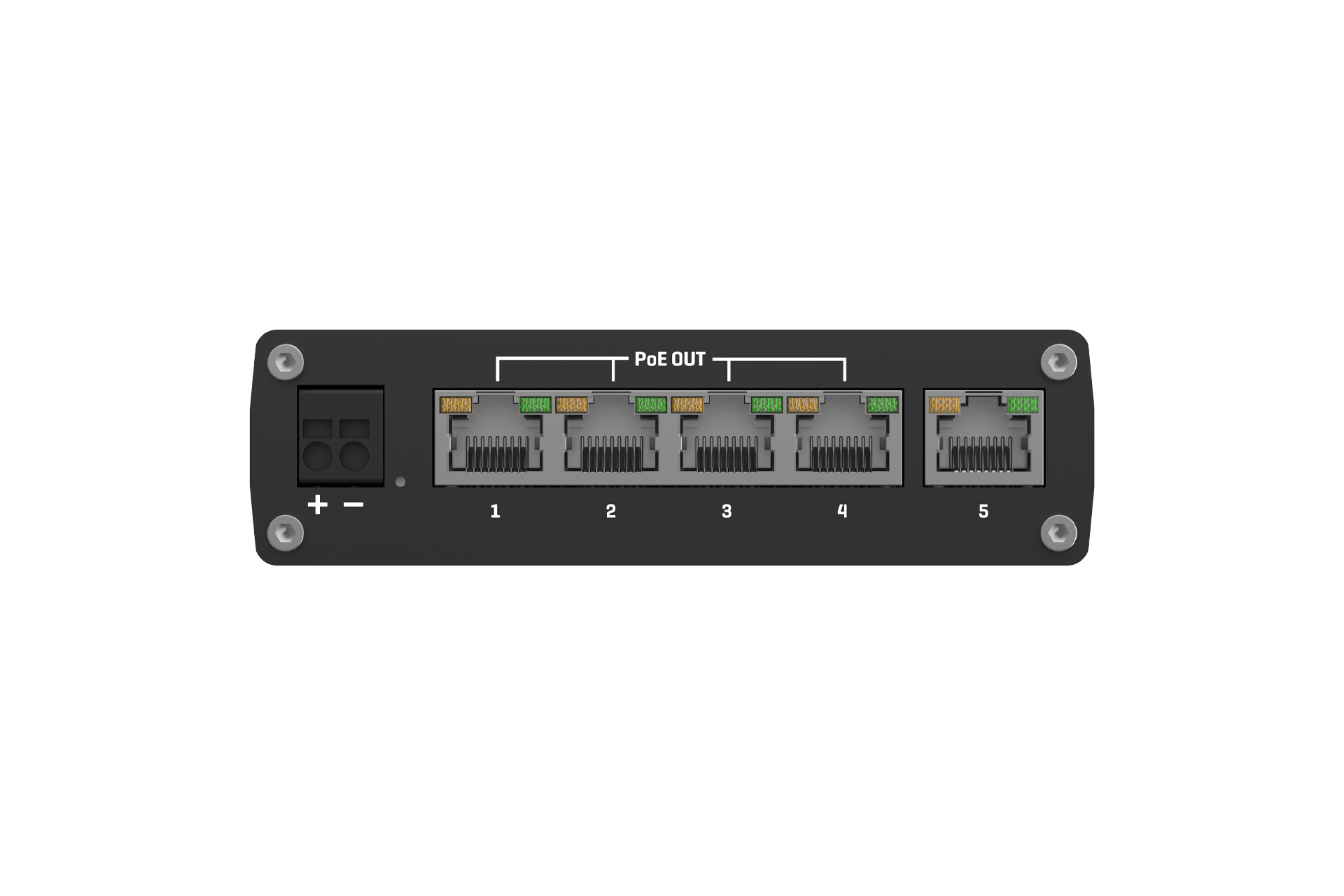

5 x RJ45 ports, 10/100/1000 Mbps
-
Status LEDs
1 x Power LED, 10 x LAN status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Other

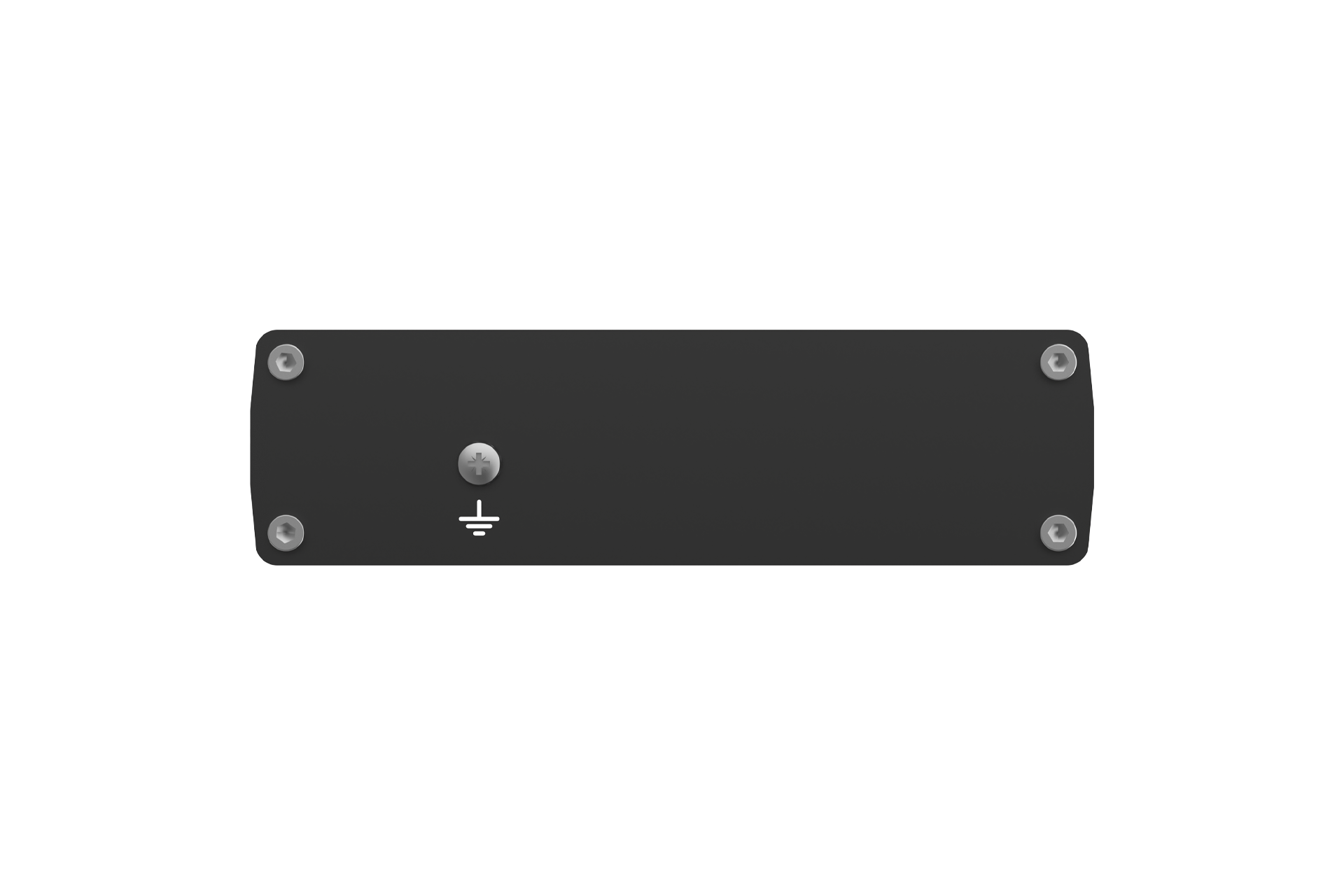

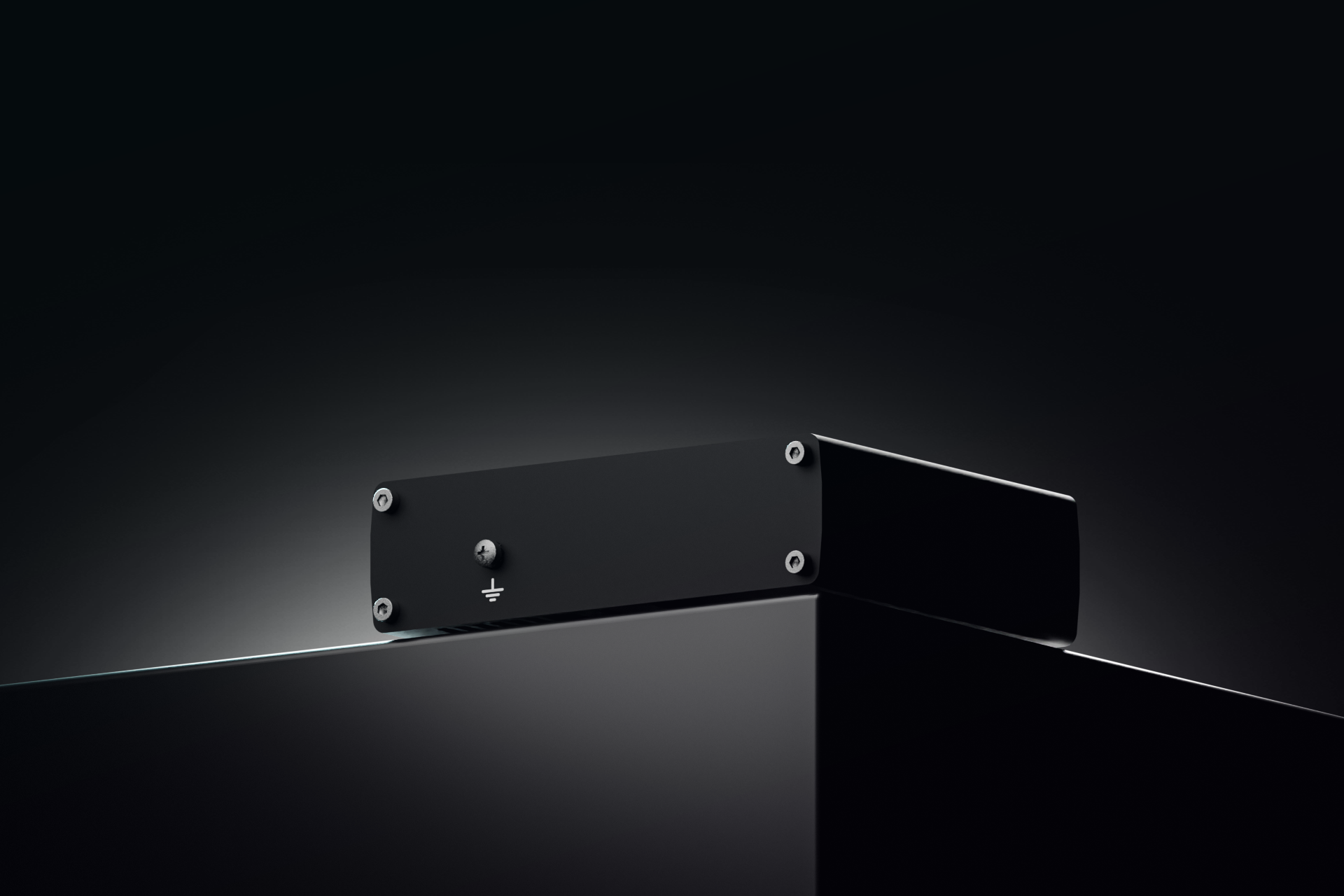

1 x Grounding screw
PHYSICAL SPECIFICATION
-
Casing material
Aluminum housing
-
Dimensions (W x H x D)
115 x 32 x 95 mm
-
Weight
384 g
-
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
SAFETY
-
Standards
EN IEC 62368-1:2020+A11:2020
