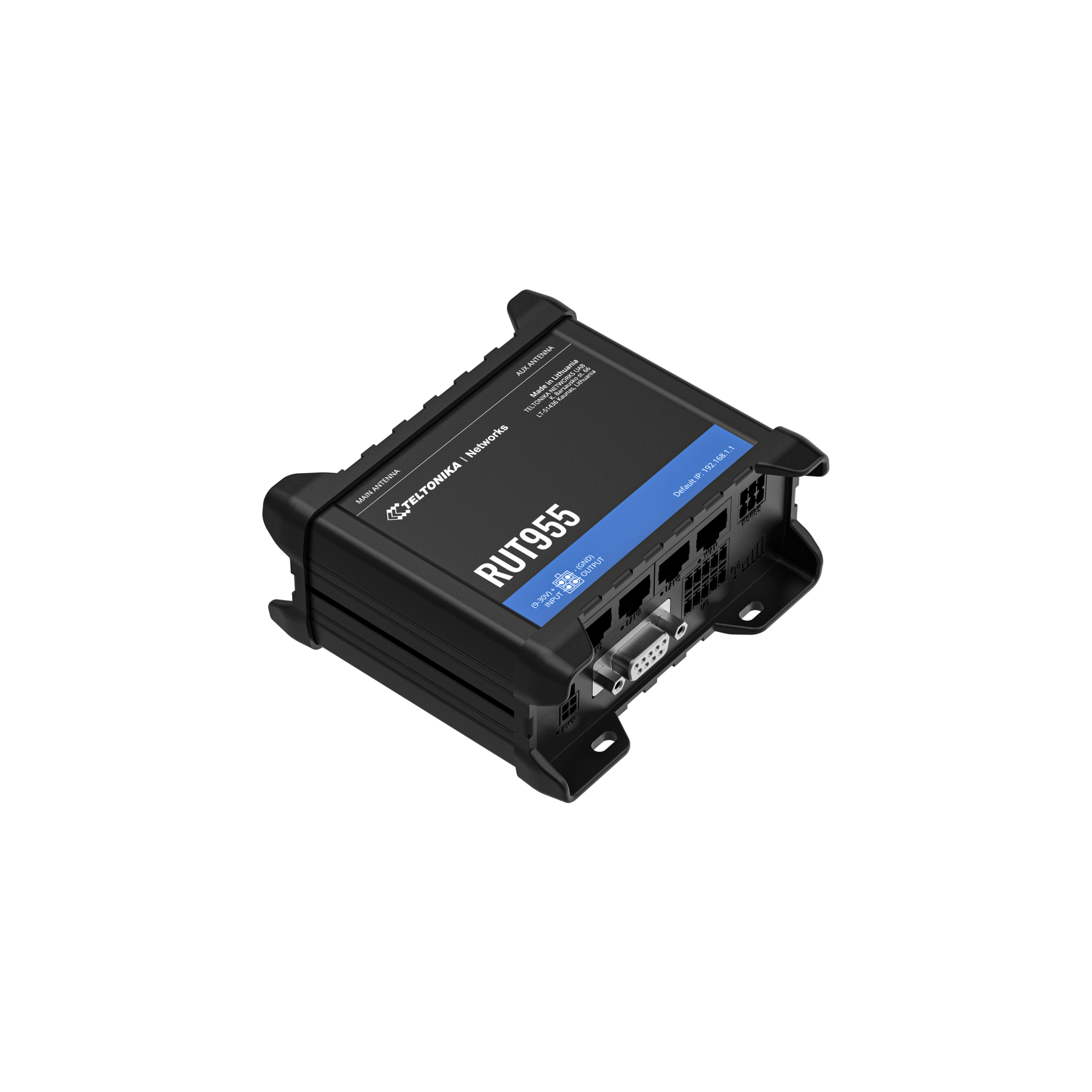

#1: RUT955

INDUSTRIAL CELLULAR ROUTER

RUT955 offers a dual-SIM cellular connection, four Ethernet ports, and Wi-Fi combined with RS232, RS485, USB interfaces, and inputs/outputs for an incredible variety of professional application scenarios. This router comes with RutOS advanced software features such as Modbus, SNMP, TR-069, NTRIP, MQTT protocol support, and GNSS tracking capabilities.



#2: Content of delivery

• Router RUT955
• 9 W PSU
• 2 x Mobile antennas (magnetic mount, SMA male, 3 m cable)
• 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• GNSS antenna (adhesive , SMA male, 3 m cable)
• RS485 connector block
• I/O connector block
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box



#3: Features

MOBILE

• Mobile module

  4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

• SIM switch

  2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• Status

  Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

• SMS

  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

  Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list

  Operator black/white list

• Multiple PDN

  Possibility to use different PDNs for multiple network access and services

• Band management

  Band lock, Used band status display

• SIM idle protection service

  When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

• APN

  Auto APN

• Bridge

  Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

  Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

• Wireless mode

  IEEE 802.11b/g/n, Access Point (AP), Station (STA)

• Wi-Fi security

  WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

• SSID/ESSID

  SSID stealth mode and access control based on MAC address

• Wi-Fi users

  Up to 100 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), Relayd

• Wireless MAC filter

  Whitelist, blacklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information.

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information.

NETWORK

• Hotspot

  Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Ports management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• Hotspot

  Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Ports management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• Hotspot

  Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

• DHCP

  Static and dynamic IP allocation, DHCP Relay

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• Network backup

  Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

  Balance Internet traffic over multiple WAN connections

• SSHFS

  Possibility to mount remote file system via SSH protocol

ETHERNET

• WAN

  1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

• LAN

  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

•

SECURITY

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

• Firewall

  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• Mobile quota control

  Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of SSH, Web interface, CLI and Telnet

• Secure Boot

  Cryptographic integrity check of the each system boot process (available on device with special order code RUT955T073B0).

VPN

• OpenVPN

  Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

  IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

  GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

  Method of building scalable IPsec VPNs

• SSTP

  SSTP client instance support

• ZeroTier

  ZeroTier VPN client support

• WireGuard

  WireGuard VPN client and server support

• Tinc

  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

• ID range

  Respond to one ID in range [1;255] or any

• Allow Remote Access

  Allow access through WAN

• Custom registers

  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS RTU MASTER (RS232)

• Supported baud rates

  From 300 to 115200

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Number of data bits

  From 5 to 8

• Number of stop bits

  1 or 2

• Parity

  None, Even, Odd

• Flow

  None, RTS/CTS, Xon/Xoff

• Duplex

  Full duplex

MODBUS RTU MASTER (RS485)

• Supported baud rates

  From 300 to 300000

• Supported functions

  01, 02, 03, 04, 05, 06, 15, 16

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Number of data bits

  8

• Number of stop bits

  1

• Parity

  None, Even, Odd

• Flow

  None, Xon/Xoff

• Duplex

  Half duplex

DATA TO SERVER

• Protocol

  HTTP(S), MQTT, Azure MQTT, Kinesis

• Data to server

  Extract parameters from multiple sources and different protocols, and send them all to a single server

• Data to server

  Extract parameters from multiple sources and different protocols, and send them all to a single server

MQTT GATEWAY

• MQTT Gateway

  Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

• Supported modes

  TCP Master, DNP3 Outstation, RTU Master

DLMS

• DLMS Support

  DLMS - standard protocol for utility meter data exchange

MONITORING & MANAGEMENT

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• SMS

  SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call

  Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

• TR-069

  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

  MQTT Broker, MQTT publisher

• SNMP

  SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC

  Management API over HTTP/HTTPS

• MODBUS

  MODBUS TCP status/control

• RMS

  Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things

  Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx

  Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity

  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

• Azure IoT Hub

  Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

• CPU

  Atheros Wasp, MIPS 74Kc, 550 MHz

• RAM

  128 MB, DDR2

• FLASH storage

  16 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

FIRMWARE CUSTOMISATION

• Operating system

  RutOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

• GPL customization

  You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs.

LOCATION TRACKING

• GNSS

  GPS, GLONASS, BeiDou, Galileo and QZSS

• Coordinates

  GNSS coordinates via WebUI, SMS, TAVL, RMS

• NMEA

  NMEA 0183

• NTRIP

  NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

• Server software

  Supported server software TAVL, RMS

• Geofencing

  Configurable multiple geofence zones

SERIAL

• RS232

  DB9 connector, RS232 (with RTS, CTS flow control)

• RS485

  RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

• Serial functions

  Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

• Data rate

  USB 2.0

• Applications

  Samba share, USB-to-serial

• External devices

  Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

• Storage formats

  FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT / OUTPUT

• Input

  1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

• Output

  1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

• Events

  Email, RMS, SMS

• I/O juggler

  Allows to set certain I/O conditions to initiate event

SD CARD

• Physical size

  Micro SD

• Applications

  Samba share, Storage Memory Expansion, DLNA

• Capacity

  Up to 64 GB

• Storage Formats

  FAT32, NTFS, ext2, ext3, ext4

POWER

• Connector

  4-pin industrial DC power socket

• Input voltage range

  9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

• PoE (passive)

  Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

• Power consumption

  < 2 W idle, < 7 W Max

PHYSICAL INTERFACES

• Ethernet

  4 x RJ45 ports, 10/100 Mbps

• I/O’s

  2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

• Status LEDs

  1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

• SIM

  2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

• Power

  1 x 4-pin power connector

• Input/output

  1 x 10-pin industrial socket for inputs/outputs

• Antennas

  2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

• USB

  1 x USB A port for external devices

• RS232

  1 x DB9 socket

• RS485

  1 x 6-pin industrial socket

• Reset

  Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

• Casing material

  Aluminium housing, plastic panels

• Dimensions (W x H x D)

  110 x 50 x 100 mm

• Weight

  287 g

• Mounting options

  DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

REGULATORY & TYPE APPROVALS

• Regulatory

  CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance CE/RED, FCC, IC, PTCRB, RCM, EAC, RoHS, WEEE, IP rating, Anatel, GCF, REACH, E-mark, DNV GL, ECE Regulation 118, Morocco ANRT, Thailand NBTC, Ukraine UCRF, SDPPI (POSTEL), WiFi Certified, MODBUS Conformance

• Operator

  AT&T, Verizon

• Vehicle

  ECE R10 (E-mark)

  ECE R118

EMC EMISSIONS & IMMUNITY

• Standards

  Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0 FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN 61000-4-3:2006 + A1:2008 + A2:2010

• EFT

  EN 61000-4-4:2012

• Surge immunity (AC Power Line)

  EN 61000-4-5:2006

• Surge immunity (Ethernet ports)

  EN 61000-4-5:2014, clause 7.1 of ITU-T K21

• Transient and surges

  ISO 7637-2:2004

• CS

  EN 61000-4-6:2009

• DIP

  EN 61000-4-11:2004

RF

• Standards

  EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908 13 V11.1.1, EN 303 413 V1.1.0
  AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017
  FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017)
  RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1

SAFETY

• Standards

  IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
  AS/NZS 60950.1:2015
  EN 50665:2017, EN 62311:2008
  FCC 47 CFR Part 1 1.1310
  RSS-102 Issue 5 (2015)

ENVIRONMENTAL

• Ingress Protect

  LST EN 60529:1999+A1+AC:2002, LST EN 60529:1999+A1+AC:2002

• Vibration

  Class guideline-DNVGL-CG-0339:2016 EN 60068-2-6:2008, Class guideline-DNVGL-CG-0339:2016
  EN 60068-2-6:2008



---
