MikroTik RBwAPR-2nD&R11e-LR8 - wAP LR8 kit

Name: MikroTik RBwAPR-2nD&R11e-LR8 - wAP LR8 kit
Brand: MikroTik
SKU: RBwAPR-2nD&R11e-LR8
Price: 153.51 EUR
Availability: InStock

Product.Nr.: RBwAPR-2nD&R11e-LR8

Manufacturer: MikroTik

153,51 EUR RRP 163,51 EUR you save 6.1% (10,00 EUR)
incl. 19 % VAT

excl. shipping costs

Sofort versandfähig
weight 0,7 kg

product description

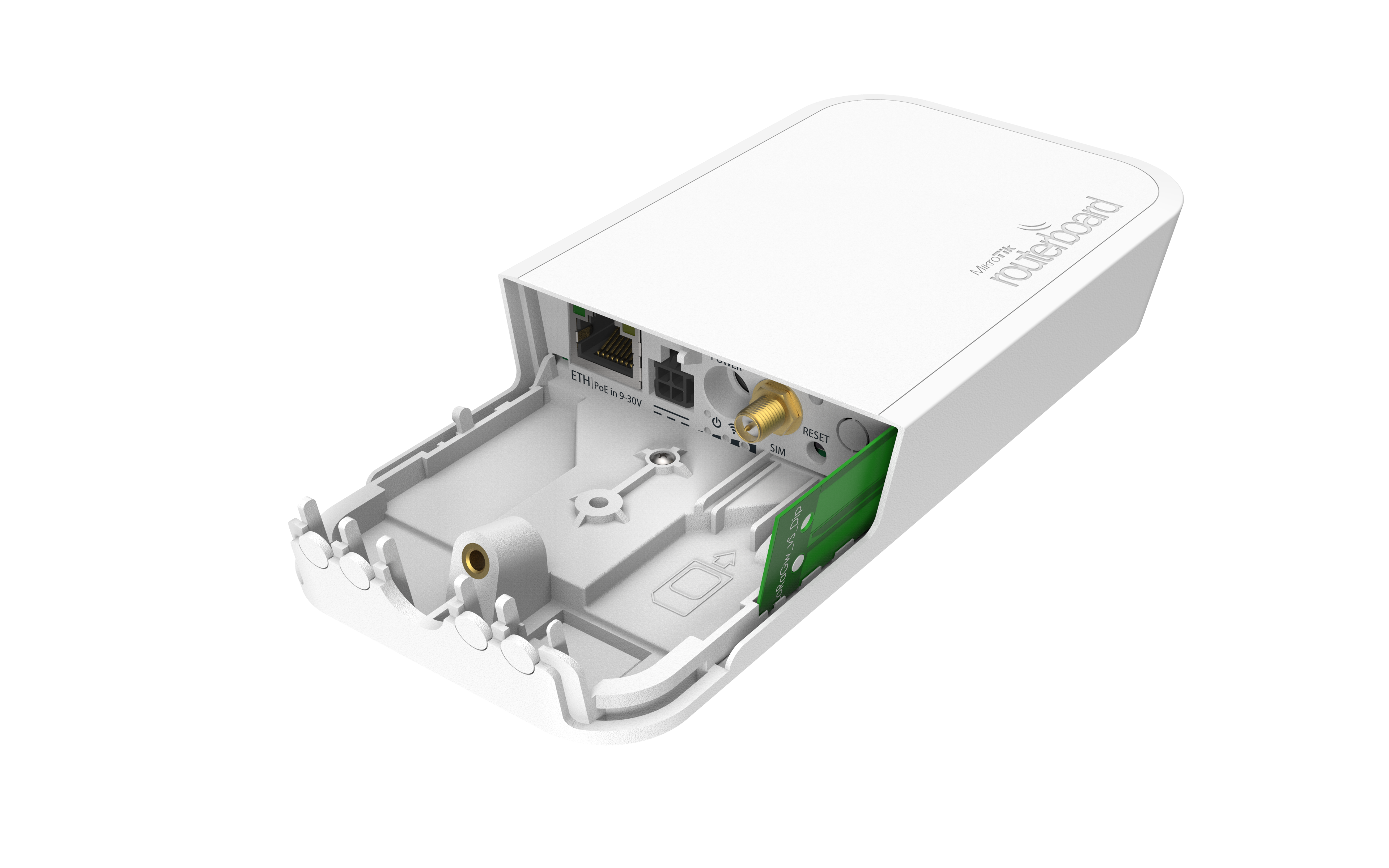

#1: RBwAPR-2nD&R11e-LR8 - wAP LR8 kit

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or connect an external antenna (please note, no IoT antenna is connected from the start!). For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®. wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem

#2: Included in delivery

1x RBwAPR-2nD&R11e-LR8 (wAP LR8 kit)
1x 24V 0.8A power adapter
1x PoE injector
1x 0.35m 4pin Automotive adapter cable
1x wAP desktop stand
1x wAP ceiling mount bracket
1x Metal ring (one)
1x K-52 fastening set

#3: Specifications - Technical details

Details
Product code	RBwAPR-2nD&R11e-LR8
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 60°C

Powering

Details
Number of DC inputs	3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	54

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

#4: Test results according to RFC2544

Ethernet test results

RBwAPR-2nD&R11e-LR8		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
