product description

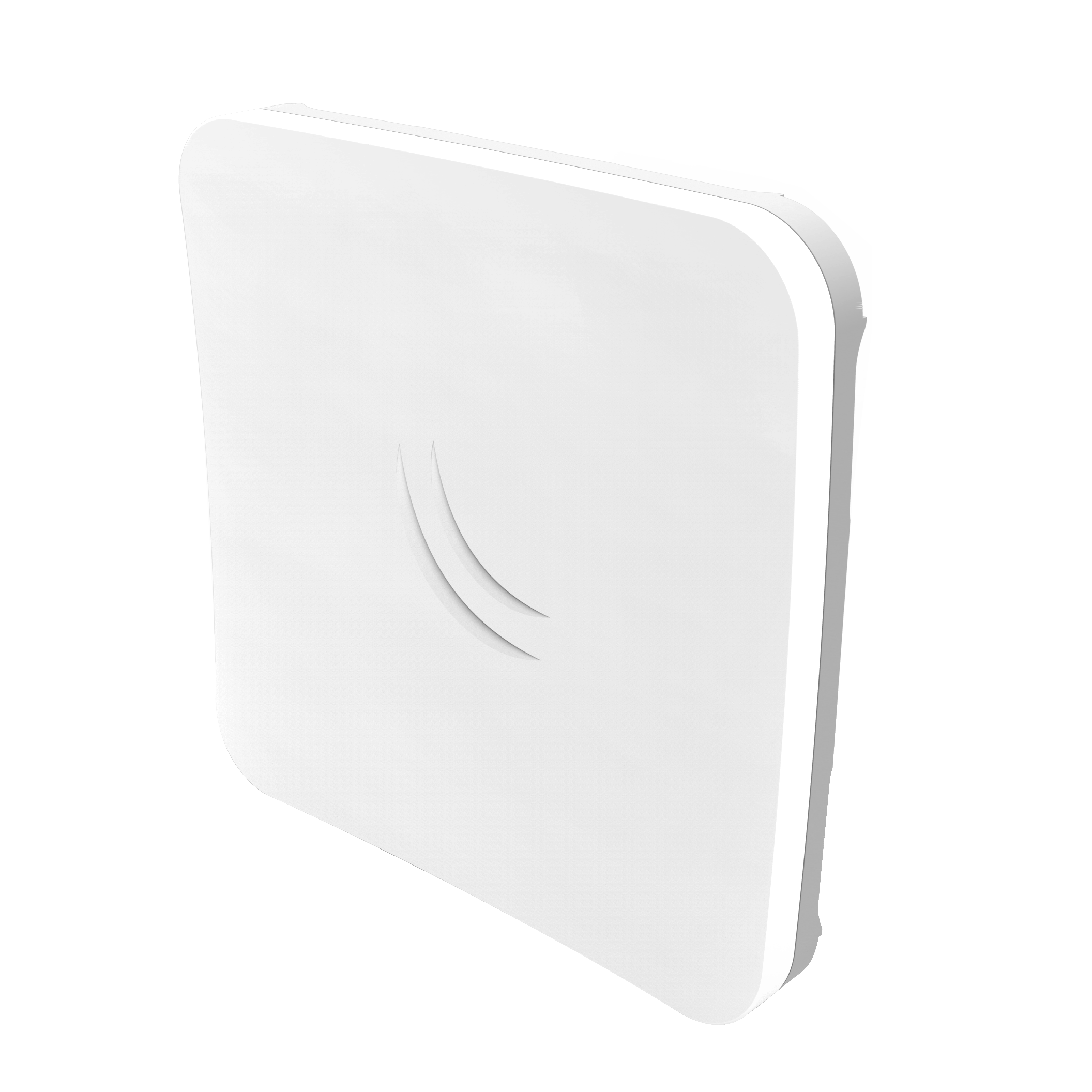

The SXTsq Lite60 is a new model in our 60 GHz lineup. This is a low cost CPE unit for connecting to a 60 GHz AP, enabling you to build a cost effective point to multipoint setup in the clean 60 GHz wireless spectrum. Connect up to eight of these CPE units to a 60 GHz access point, such as our wAP60G AP.
For links up to 200 meters, this is the best alternative for wireless connections where 2 and 5 GHz wireless space is crowded and unreliable, at a fraction of the cost. Also, it's possible to make point-to-point link with two SXTsq Lite60.
Specifications
Details | |
---|---|
Product code | RBSXTsq-60ad |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
Dimensions | 129 x 129 x 34 mm |
License level | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C .. +50°C |
Powering
Details | |
---|---|
PoE in | Passive PoE |
PoE in input Voltage | 12-30 V |
Number of DC inputs | 1 (PoE-IN) |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
Included parts
- 24V 0.38A power adapter
- Metal ring (one)
- PoE injector
Downloads
SXTsq_Lite60-Brochure.pdf (1.40 MB)
