MikroTik RBSXTG-2HnD - SXT 2
Product.Nr.: RBSXTG-2HnD
Manufacturer: MikroTik
75,90 EUR
incl. 19 % VAT
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- delivery time End of Life - EoL - Nichtmehr lieferbar!
- weight 0,7 kg
product description
#1: RBSXTG-2HnD - SXT 2
MikroTiks SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as MikroTiks popular 5Ghz SXT model.

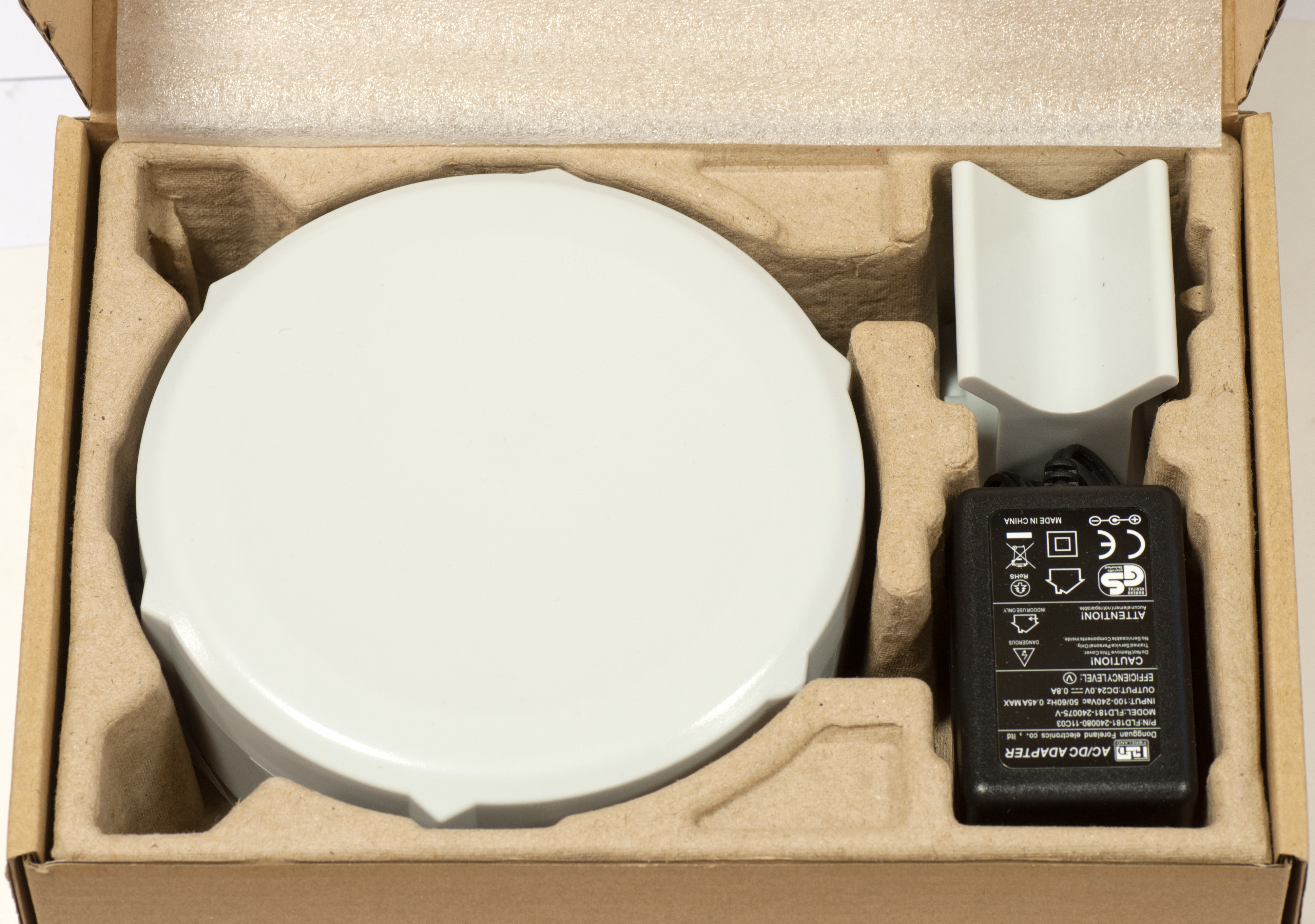

#2: Included in delivery
- 1x RBSXTG-2HnD (SXT 2)
- 1x Metal ring
- 1x Gigabit PoE injector
- 1x 24V 0.8A power adapter
- 1x Pole mounting bracket
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | RBSXTG-2HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 10 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 32 | -96 |
| 11MBit/s | 30 | -90 |
| 6MBit/s | 32 | -96 |
| 54MBit/s | 29 | -80 |
| MCS0 | 32 | -96 |
| MCS7 | 28 | -74 |
#4: Test results according to RFC2544
Ethernet test results
| RBSXTG-2HnDr2 | AR9344 1G 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Installationsvideo: https://www.youtube.com/watch?v=-KNo1B7K-YY
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RBSXTG-2HnD-Brochure.pdf (0.74 MB)
