MikroTik RBLHGR&R11e-LTE-4G - LHG 4G kit
Product.Nr.: RBLHGR&R11e-LTE-4G
Manufacturer: MikroTik
159,00 EUR
incl. 19 % VAT
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- weight 2,51 kg
product description
Mikrotik RBLHGR&R11e-LTE-4G - LHG 4G kit
Note: An alternative, with other LTE bands, can be found here: https://www.mikrotik-store.eu/de/mikrotik-rblhgrr11e-lte-lhg-lte-kit

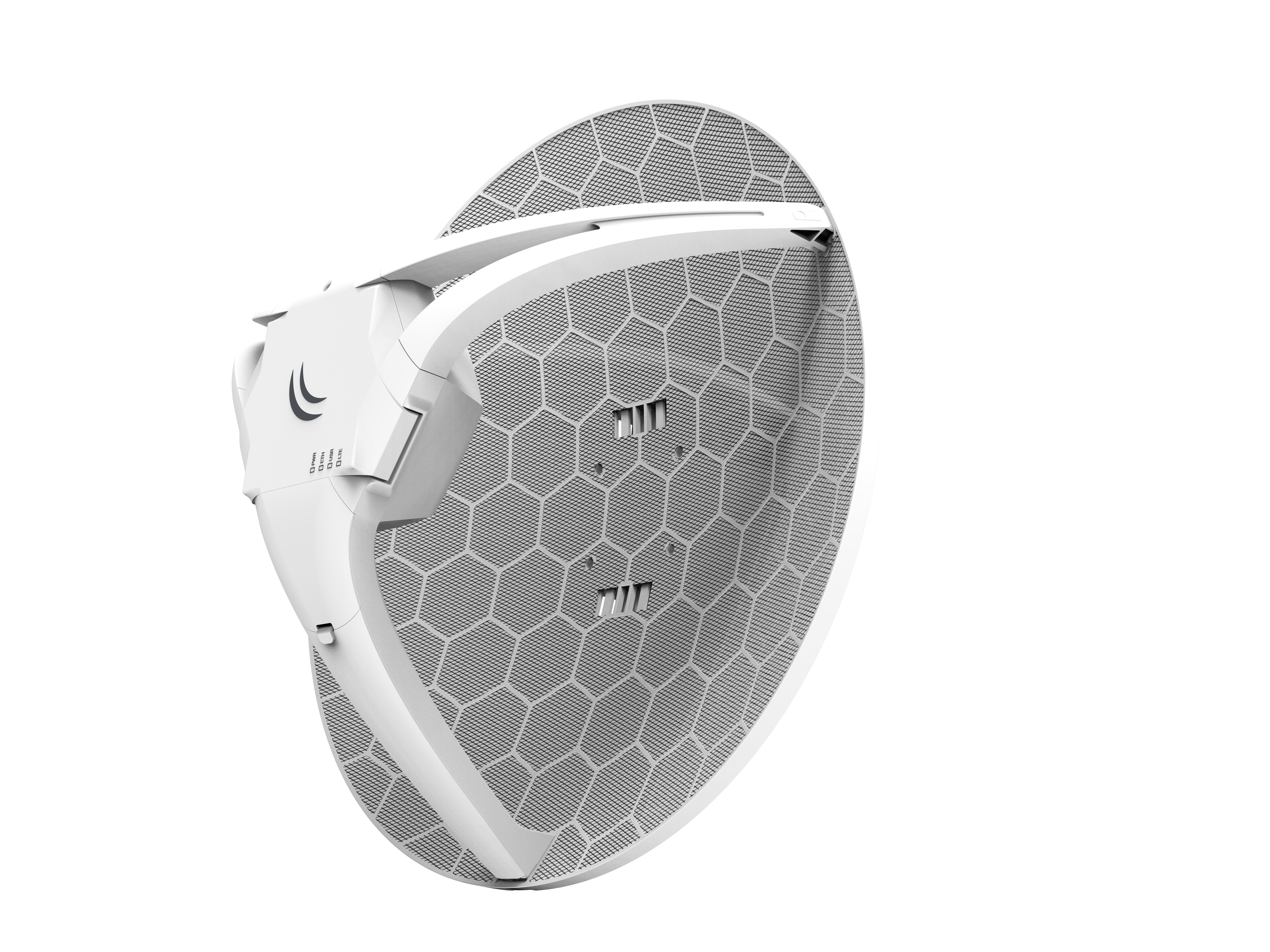

Mikrotiks LHG 4G kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain 21dBi antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
-
Specifications
| Details | |
|---|---|
| Product code | RBLHGR&R11e-4G |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 391 x 391 x 227 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $169.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
Mobile
| Details | |
|---|---|
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
| LTE TDD bands | 41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
-
Ethernet test results
| RBLHGR&R11e-4G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Downloads
LHG-4G-Kit-QuickGuide.pdf (0.28 MB)
LHG-4G-Kit-PTP-Link-Auswahlhilfe.pdf (4.78 MB)
LHG-4G-Kit-PTMP-Link-Auswahlhilfe.pdf (3.84 MB)
LHG-4G-Kit-Brochure.pdf (1.33 MB)
LHG-4G-Kit-Declaration-of-conformity.pdf (0.11 MB)
