MikroTik RBLHGG-60ad - LHG 60G
Product.Nr.: RBLHGG-60ad
Manufacturer: MikroTik
154,95 EUR
incl. 19 % VAT
product description
#1: RBLHGG-60ad - LHG 60G
LHG 60G – a high-speed 60 GHz CPE point-to-multipoint unit, perfect solution for crowded wireless spectrum
No need to share the frequency with your neighbors and lose valuable time – LHG 60G offers a simple and effective 60 GHz solution for wireless connection where the 2 GHz and 5GHz wireless space is crowded and unreliable. Connect up to eight of these units to a 60 GHz access point, such as our wAP60G AP or wAP 60Gx3 AP, and enjoy the smooth connection with data rate up to 2 Gbps.
The effective point-to-point distance between two LHG 60G units is up to 1500 meters, point-to-multipoint – up to 800 meters. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. The antenna element is built into the wireless unit – no loss on cables.

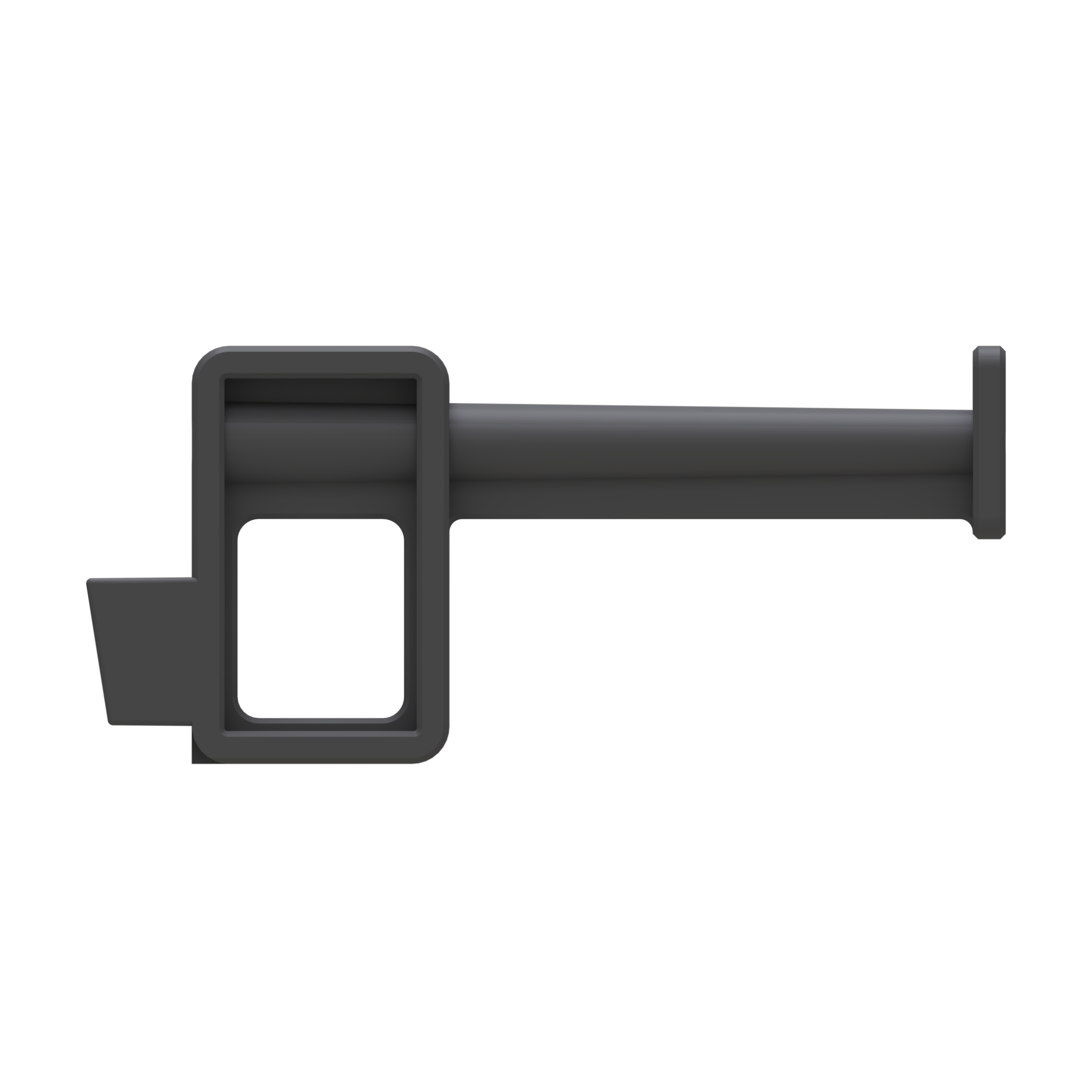

LHG 60G is shipped with an Aim tool for easy precision alignment and strong metal LHG mount. Order it today and forget about wireless interference!
#2: Included in delivery
- 1x RBLHGG-60ad (LHG 60G)
- 1x 24V 0.38A power adapter
- 1x Gigabit PoE injector
- 1x LHG mount
- 1x Aim tool
#3: Specifications - Technical details
Details | |
---|---|
Product code | RBLHGG-60ad |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 5 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP55 |
#4: Test results according to RFC2544
Ethernet test results
RBLHGG-60adr2 | IPQ-4018 1G one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1484,8 | 760.2 |
Bridging | 25 bridge filter rules | 82,2 | 998.2 | 243,9 | 999.0 | 359,2 | 183.9 |
Routing | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1488 | 761.9 |
Routing | 25 simple queues | 82,2 | 998.2 | 243,9 | 999.0 | 506,3 | 259.2 |
Routing | 25 ip filter rules | 82,2 | 998.2 | 240,8 | 986.3 | 242,9 | 124.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RBLHGG-60adr2 | IPQ-4018 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RBLHGG-60ad-Brochure.pdf (3.05 MB)
