MikroTik RBGrooveGA-52HPacn - GrooveA 52 ac

Name: MikroTik RBGrooveGA-52HPacn - GrooveA 52 ac
Brand: MikroTik
SKU: RBGrooveGA-52HPacn
Price: 101.51 EUR
Availability: InStock

Product.Nr.: RBGrooveGA-52HPacn

Manufacturer: MikroTik

101,51 EUR
incl. 19 % VAT

excl. shipping costs

Sofort versandfähig
delivery time sofort lieferbar
weight 0,6 kg

product description

#1: RBGrooveGA-52HPacn - GrooveA 52 ac

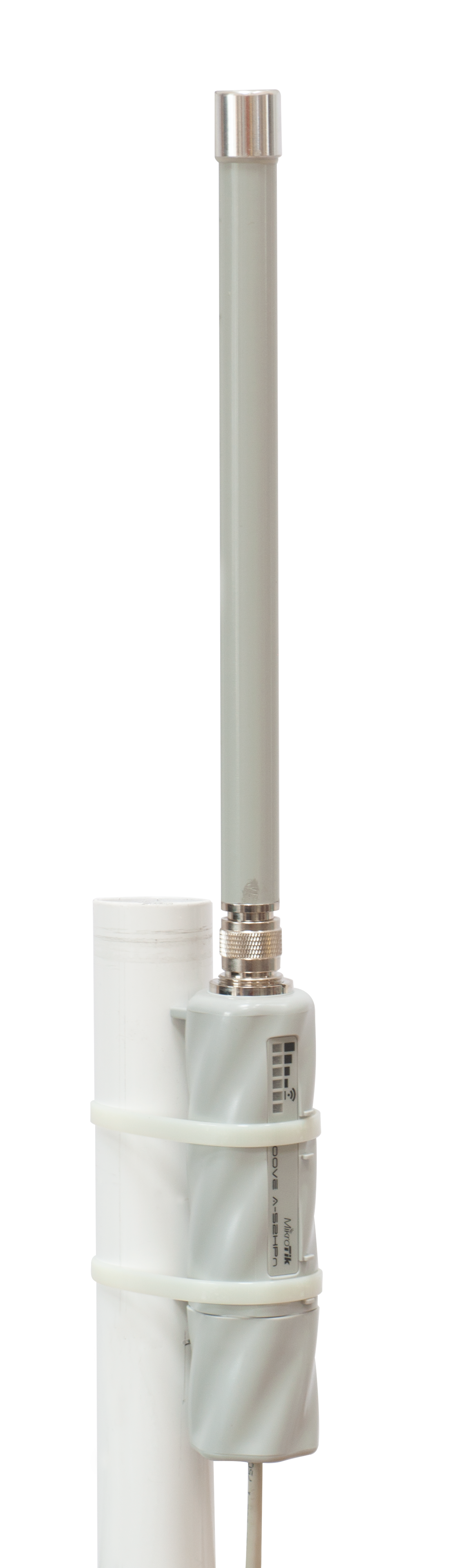

MikroTiks smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

RBGrooveGA-52HPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

#2: Included in delivery

1x RBGrooveGA-52HPacn (GrooveA 52 ac)
1x 24V 0.38A power adapter
1x Gigabit PoE injector
1x 6dBi (2.4GHz) / 8dBi (5GHz) omni antenna
1x Metal ring

#3: Specifications - Technical details

Details
Product code	RBGrooveGA-52HPacn
Architecture	MIPSBE
CPU	QCA9556
CPU core count	1
CPU nominal frequency	720 MHz
Dimensions	177 x 44 x 44 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

Wireless specifications

Details
Wireless 5 GHz/2.4 GHz Max data rate	433 Mbit/s
Wireless 5 GHz/2.4 GHz number of chains	1
Wireless 5 GHz/2.4 GHz standards	802.11b/g/n, 802.11a/n/ac
Antenna gain dBi for 5 GHz/2.4 GHz	6
Wireless 5 GHz/2.4 GHz chip model	QCA9889
Wireless 5 GHz/2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP55

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	24	-97
11MBit/s	21	-91
6MBit/s	24	-93
54MBit/s	21	-77
MCS0	24	-93
MCS7	20	-72
5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	26	-93
54MBit/s	21	-78
MCS0	26	-93
MCS7	21	-74
MCS9	19	-69

#4: Test results according to RFC2544

Ethernet test results

RBGrooveGA-52HPacn		QCA9556 1G one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.2	986.1	233.1	954.8	576.7	295.3
Bridging	25 bridge filter rules	81.2	986.1	123.7	506.7	117.8	60.3
Routing	none (fast path)	81.2	986.1	233.1	954.8	454.8	232.9
Routing	25 simple queues	81.2	986.1	152.6	625.0	137.2	70.2
Routing	25 ip filter rules	69.4	842.8	66.3	271.6	68.7	35.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
