product description

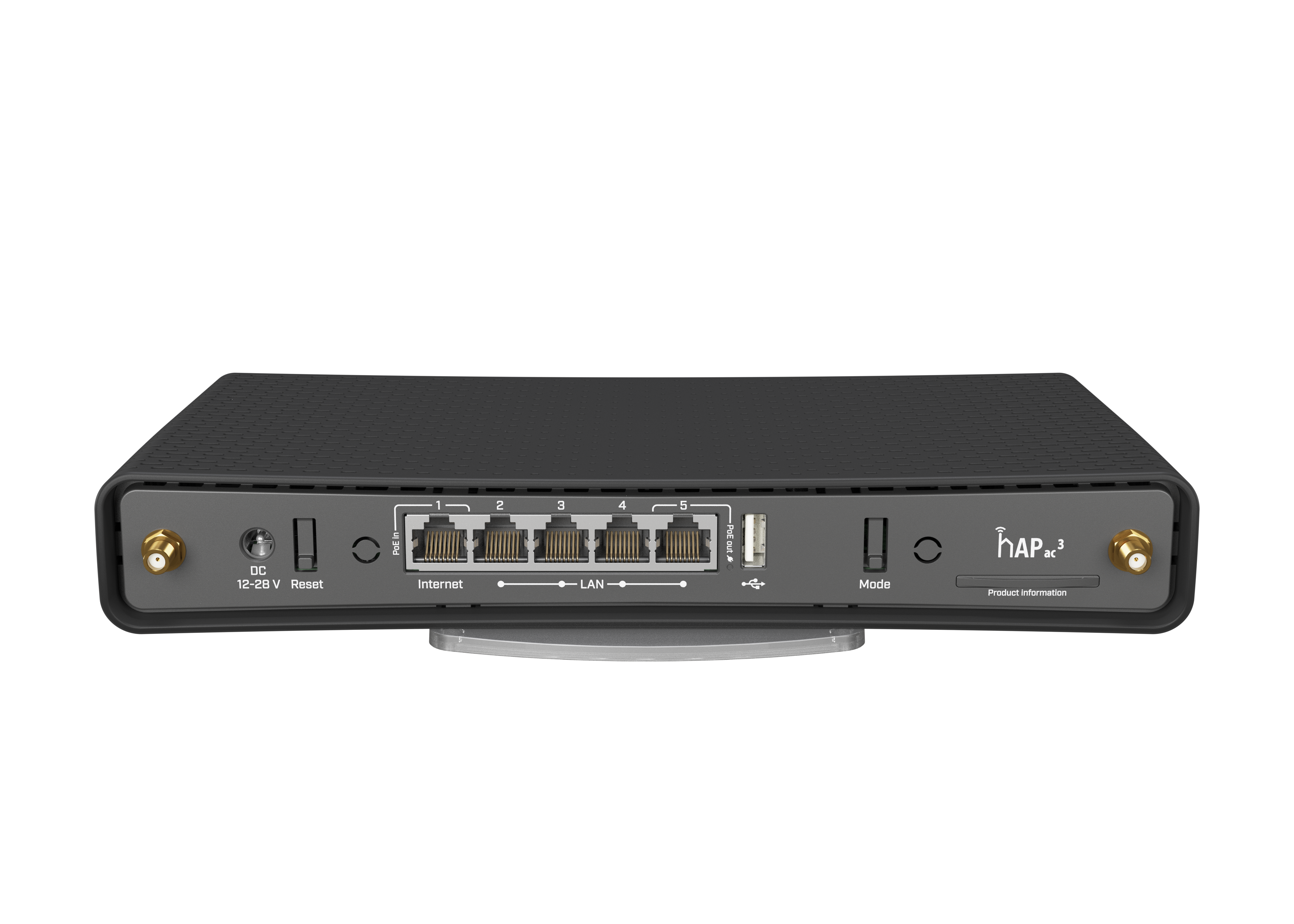

#1: RBD53iG-5HacD2HnD - hAP ac³
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.
Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!
With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
#2: Included in delivery
- 1x RBD53iG-5HacD2HnD (hAP ac³)
- 1x 24V 1.5A power adapter
- 1x Base leg
- 1x K-47 wall mount set
- 1x HGO indoor antenna kit
#3: Specifications - Technical details
Details |
Product code |
RBD53iG-5HacD2HnD |
Architecture |
ARM 32bit |
CPU |
IPQ-4019 |
CPU core count |
4 |
CPU nominal frequency |
716 MHz |
Switch chip model |
IPQ-4019 |
Dimensions |
251 x 129 x 39 mm |
RouterOS license |
4 |
Operating System |
RouterOS |
Size of RAM |
256 MB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
IPsec hardware acceleration |
Yes |
Wireless capabilities
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
3 |
Wireless 2.4 GHz chip model |
IPQ-4019 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
5.5 |
Wireless 5 GHz chip model |
IPQ-4019 |
Wireless 5 GHz generation |
Wi-Fi 5 |
WiFi speed |
AC1200 |
Ethernet
Details |
10/100/1000 Ethernet ports |
5 |
Number of 1G Ethernet ports with PoE-out |
1 |
Peripherals
Details |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Powering
Details |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-28 V |
Max power consumption |
30 W |
Max power consumption without attachments |
12 W |
Cooling type |
Passive |
PoE in |
Passive PoE |
PoE in input Voltage |
18-28 V |
PoE-out
Details |
PoE-out ports |
Ether5 |
PoE out |
Passive PoE |
Max out per port output (input 18-30 V) |
0.5 A |
Max total out (A) |
0.5 A |
Certification & Approvals
Details |
Certification |
CE, FCC, IC, EAC, ROHS |
IP |
IP20 |
Other
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
26 |
-96 |
54MBit/s |
23 |
-78 |
MCS0 |
26 |
-96 |
MCS7 |
22 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
6MBit/s |
26 |
-96 |
54MBit/s |
22 |
-80 |
MCS0 |
26 |
-96 |
MCS7 |
21 |
-75 |
MCS9 |
19 |
-70 |
#4: Test results according to RFC2544
Ethernet test results
RBD53iG-5HacD2HnD |
IPQ-4019 1G all port test |
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
Bridging |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
Bridging |
25 bridge filter rules |
162,5 |
1973.4 |
351,2 |
1438.5 |
352,1 |
180.3 |
Routing |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
Routing |
25 simple queues |
162,5 |
1973.4 |
468,6 |
1919.4 |
493,4 |
252.6 |
Routing |
25 ip filter rules |
162,5 |
1973.4 |
222,8 |
912.6 |
227,4 |
116.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RBD53iG-5HacD2HnD |
IPQ-4018 IPsec throughput |
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
Single tunnel |
AES-128-CBC + SHA1 |
37.9 |
424.5 |
59 |
241.7 |
61.6 |
31.5 |
256 tunnels |
AES-128-CBC + SHA1 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
256 tunnels |
AES-128-CBC + SHA256 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
256 tunnels |
AES-256-CBC + SHA1 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
256 tunnels |
AES-256-CBC + SHA256 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
