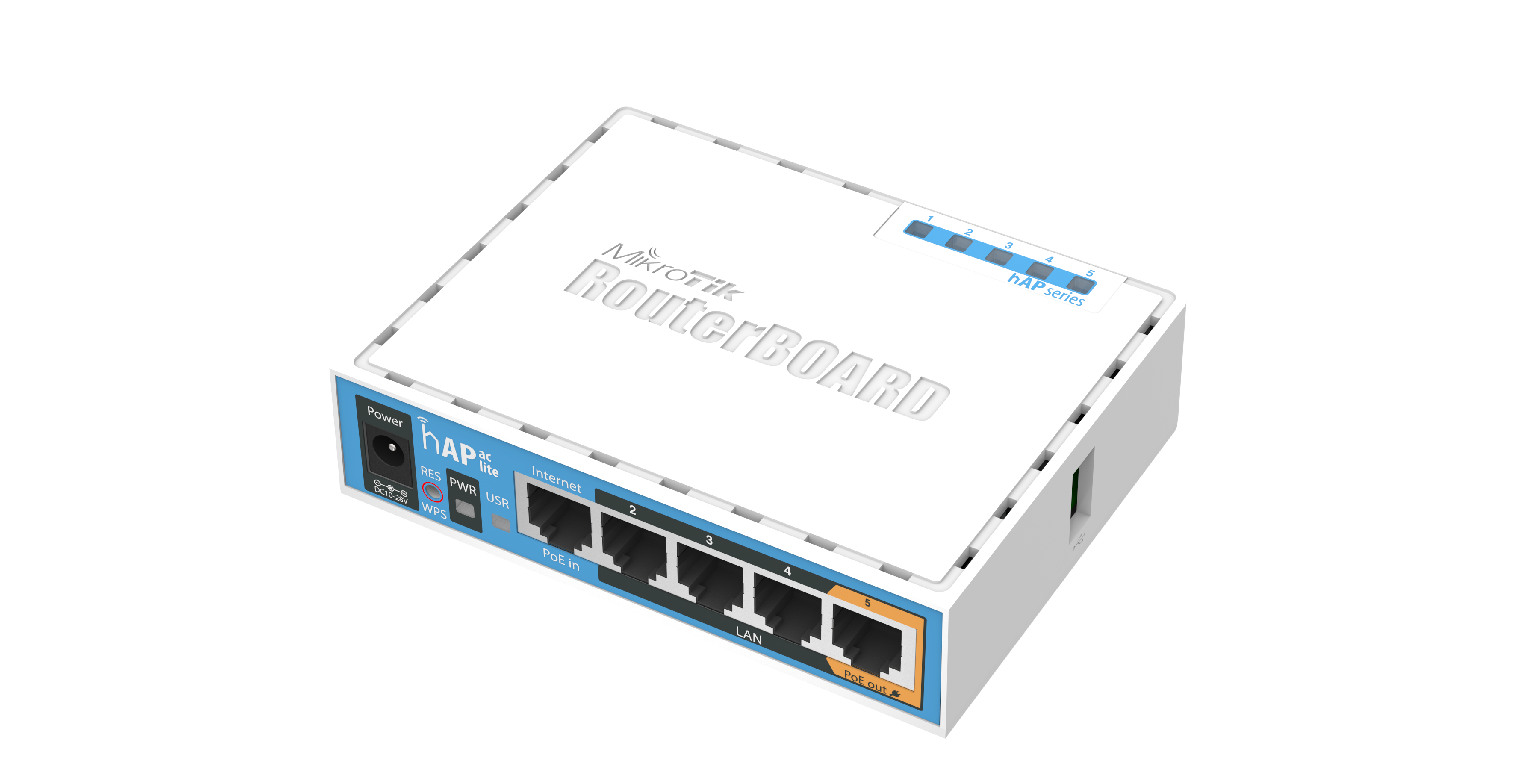

MikroTik RB952Ui-5ac2nD - hAP ac lite

Name: MikroTik RB952Ui-5ac2nD - hAP ac lite
Brand: MikroTik
SKU: RB952Ui-5ac2nD
Price: 59.9 EUR
Availability: InStock

Product.Nr.: RB952Ui-5ac2nD

Manufacturer: MikroTik

http://MikroTik RouterBOARD RB952Ui-5ac2nD

59,90 EUR
incl. 19 % VAT

excl. shipping costs

Sofort versandfähig
weight 0,4 kg

product description

#1: RB952Ui-5ac2nD - hAP ac lite

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

We sell this version: RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range (Specific frequency range can be limited by country regulations).

#2: Included in delivery

1x RB952Ui-5ac2nD (hAP ac lite)
1x 24V 1,2A power adapter

#3: Specifications - Technical details

Details
Product code	RB952Ui-5ac2nD
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
Dimensions	113 x 89 x 28mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-30°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9887
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC750

Ethernet

Details
10/100 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-28 V
Max power consumption	20 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-28 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	23	-93
54MBit/s	20	-75
MCS0	23	-93
MCS7	19	-71
MCS9	16	-63

#4: Test results according to RFC2544

Ethernet test results

RB952Ui-5ac2nD		QCA9531 (650Mhz) 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	40.6	493.0	117.4	480.9	217.0	111.1
Bridging	25 bridge filter rules	40.6	493.0	70.1	287.1	70.9	36.3
Routing	none (fast path)	40.6	493.0	117.4	480.9	200.8	102.8
Routing	25 simple queues	40.6	493.0	79.6	326.0	90.8	46.5
Routing	25 ip filter rules	40.6	493.0	42.2	172.8	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
