MikroTik RB941-2nD - hAP lite
Product.Nr.: RB941-2nD
Manufacturer: MikroTik
25,50 EUR
incl. 19 % VAT
-
Sofort versandfähig, geringe Stückzahl
- weight 0,25 kg
product description

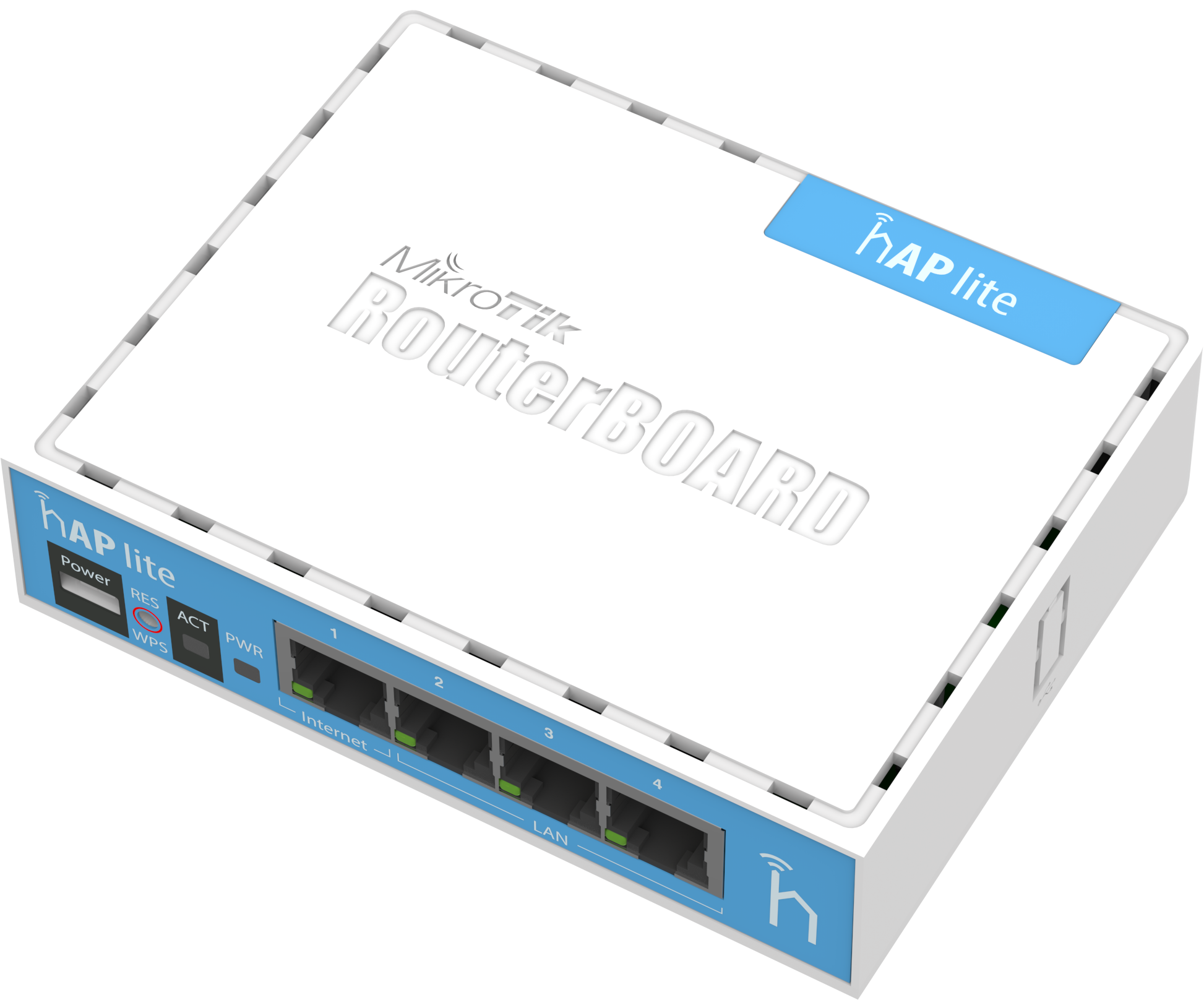

#1: RB941-2nD - hAP lite
The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button. Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
#2: Included in delivery
- 1x RB941-2nD (hAP lite)
- 1x 5V 1A power adapter
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | RB941-2nD |
| Architecture | SMIPS |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9533-BL3A |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 32 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 4 |
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| Number of DC inputs | 1 (MicroUSB) |
| Max power consumption | 3.5 W |
| Cooling type | Passive |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
#4: Test results according to RFC2544
Ethernet test results
| RB941-2nD | QCA953x 100M four port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 32.5 | 394.7 | 93.9 | 384.6 | 430.2 | 220.3 |
| Bridging | 25 bridge filter rules | 32.5 | 394.7 | 83.4 | 341.6 | 82.2 | 42.1 |
| Routing | none (fast path) | 32.5 | 394.7 | 93.9 | 384.6 | 221.1 | 113.2 |
| Routing | 25 simple queues | 32.5 | 394.7 | 93.9 | 384.6 | 118.7 | 60.8 |
| Routing | 25 ip filter rules | 32.5 | 394.7 | 53.9 | 220.8 | 53.9 | 27.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RB941-2nD-TC-Brochure.pdf (0.48 MB)
RB941-2nD-TC-Block-Diagramm.pdf (0.02 MB)
