#1: RB760iGS - hEX S

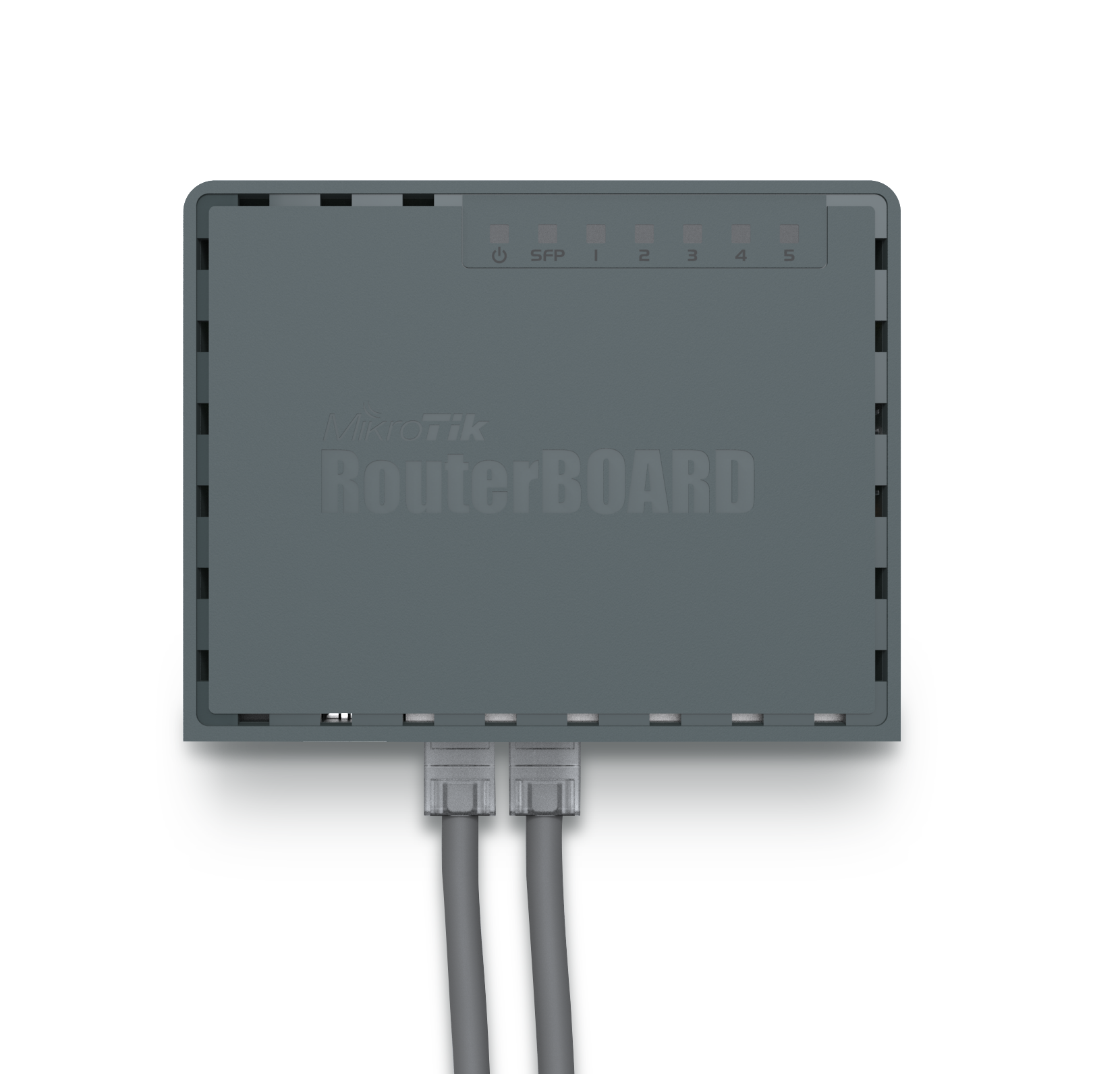

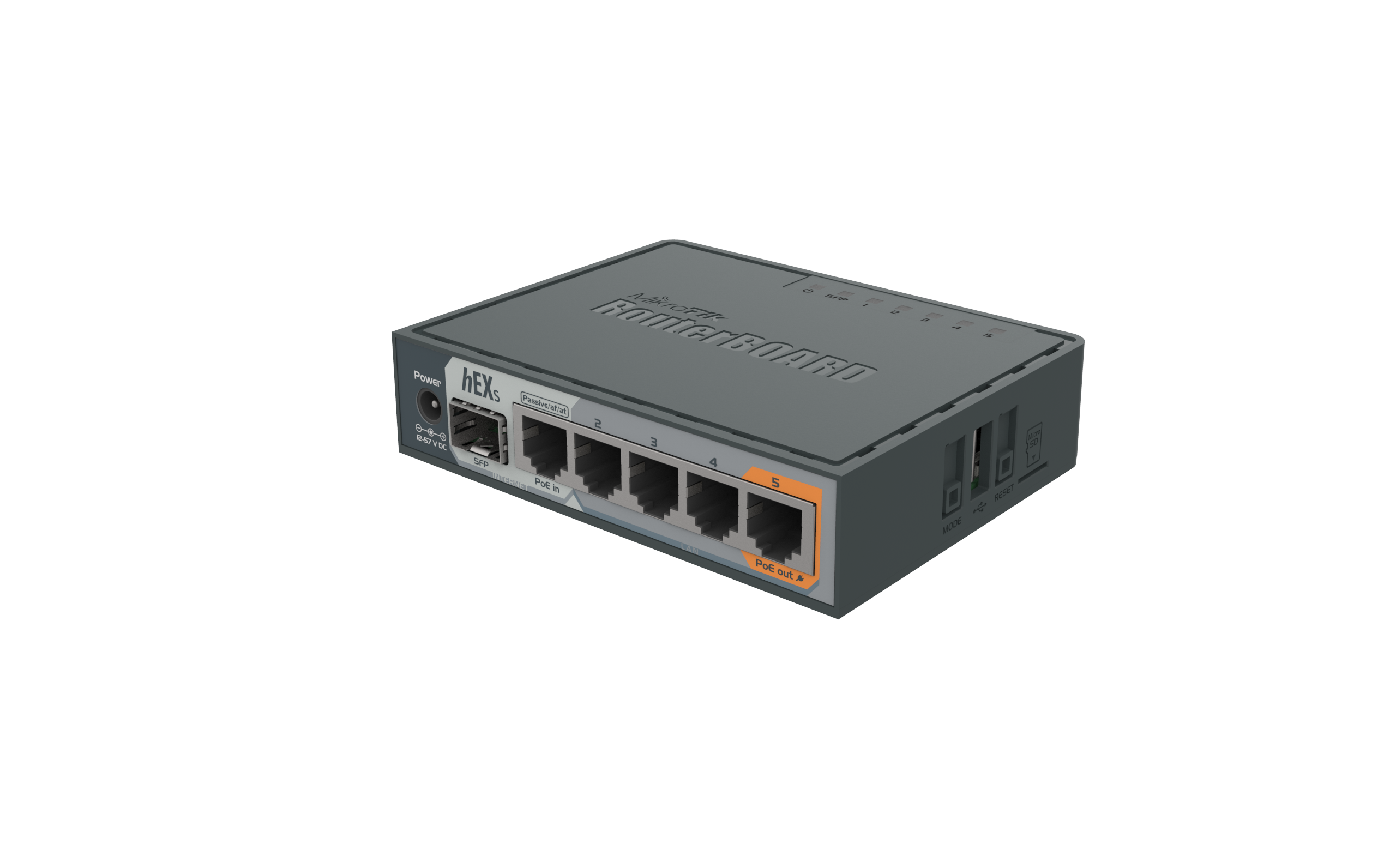

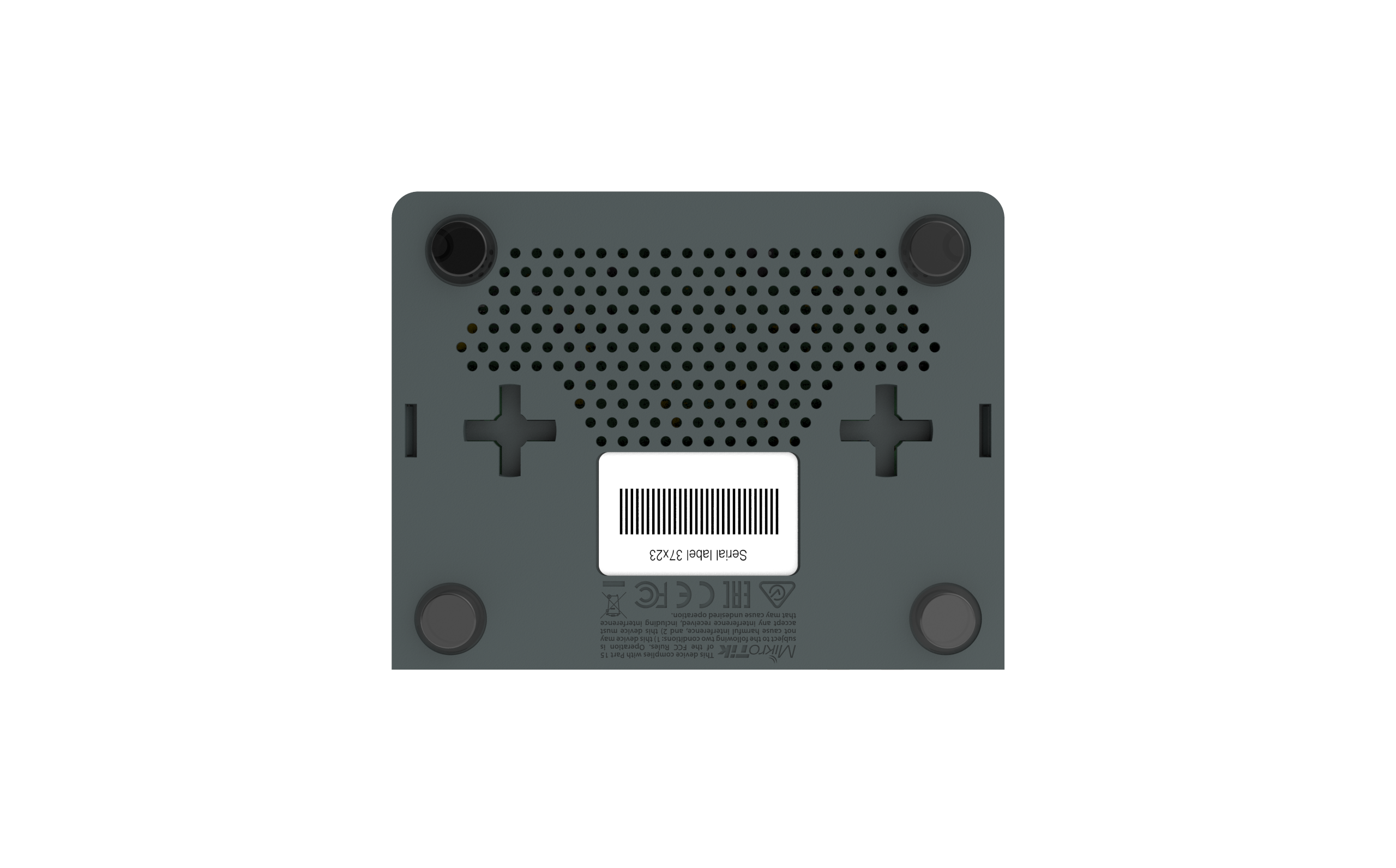

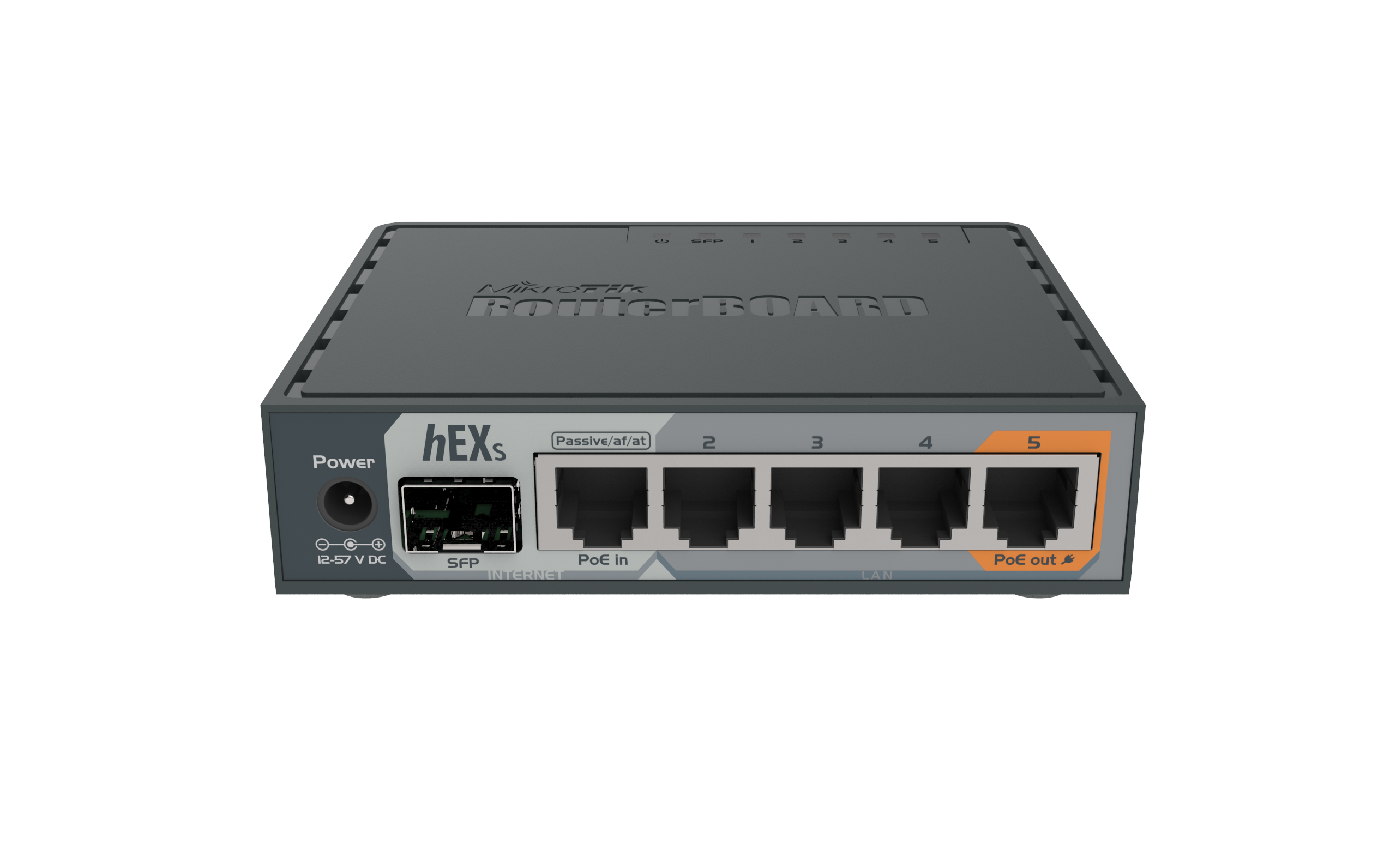

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit. IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
#2: Included in delivery
- 1x RB760iGS (hEX S)
- 1x 24V 1,2A power supply
#3: Specifications - Technical details
Details | |
---|---|
Product code | RB760iGS |
Architecture | MMIPS |
CPU | MT7621A |
CPU core count | 2 |
CPU nominal frequency | 880 MHz |
CPU Threads count | 4 |
Switch chip model | MT7621A |
Dimensions | 113 x 89 x 28 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 24 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether5 |
PoE out | Passive PoE up to 57V |
Max out per port output (input 18-30 V) | 500 mA |
Max out per port output (input 30-57 V) | 500 mA |
Max total out (A) | 500 mA |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Fiber
Details | |
---|---|
SFP ports | 1 |
Peripherals
Details | |
---|---|
Memory card type | microSD |
Memory Cards | 1 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Beeper | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
#4: Test results according to RFC2544
Ethernet test results
RB760iGS | MT7621A (880Mhz) 1G all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 162.4 | 1,972.2 | 443.7 | 1,817.4 | 1039.1 | 532.0 |
Bridging | 25 bridge filter rules | 162.4 | 1,972.2 | 168.1 | 688.5 | 174.3 | 89.2 |
Routing | none (fast path) | 162.4 | 1,972.2 | 444.4 | 1,820.3 | 1035.0 | 529.9 |
Routing | 25 simple queues | 162.4 | 1,972.2 | 179.6 | 735.6 | 171.4 | 87.8 |
Routing | 25 ip filter rules | 92.9 | 1,128.2 | 94.1 | 385.4 | 93.8 | 48.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RB760iGS | MT7621A IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 41.9 | 469.3 | 42.3 | 173.3 | 41.5 | 21.2 |
256 tunnels | AES-128-CBC + SHA1 | 41.9 | 469.3 | 43.7 | 179 | 42.7 | 21.9 |
256 tunnels | AES-128-CBC + SHA256 | 42.2 | 472.6 | 44.4 | 181.9 | 42.7 | 21.9 |
256 tunnels | AES-256-CBC + SHA1 | 32 | 358.4 | 40 | 163.8 | 40.5 | 20.7 |
256 tunnels | AES-256-CBC + SHA256 | 32.1 | 359.5 | 39.7 | 162.6 | 40.5 | 20.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
