product description
#1: RB450Gx4

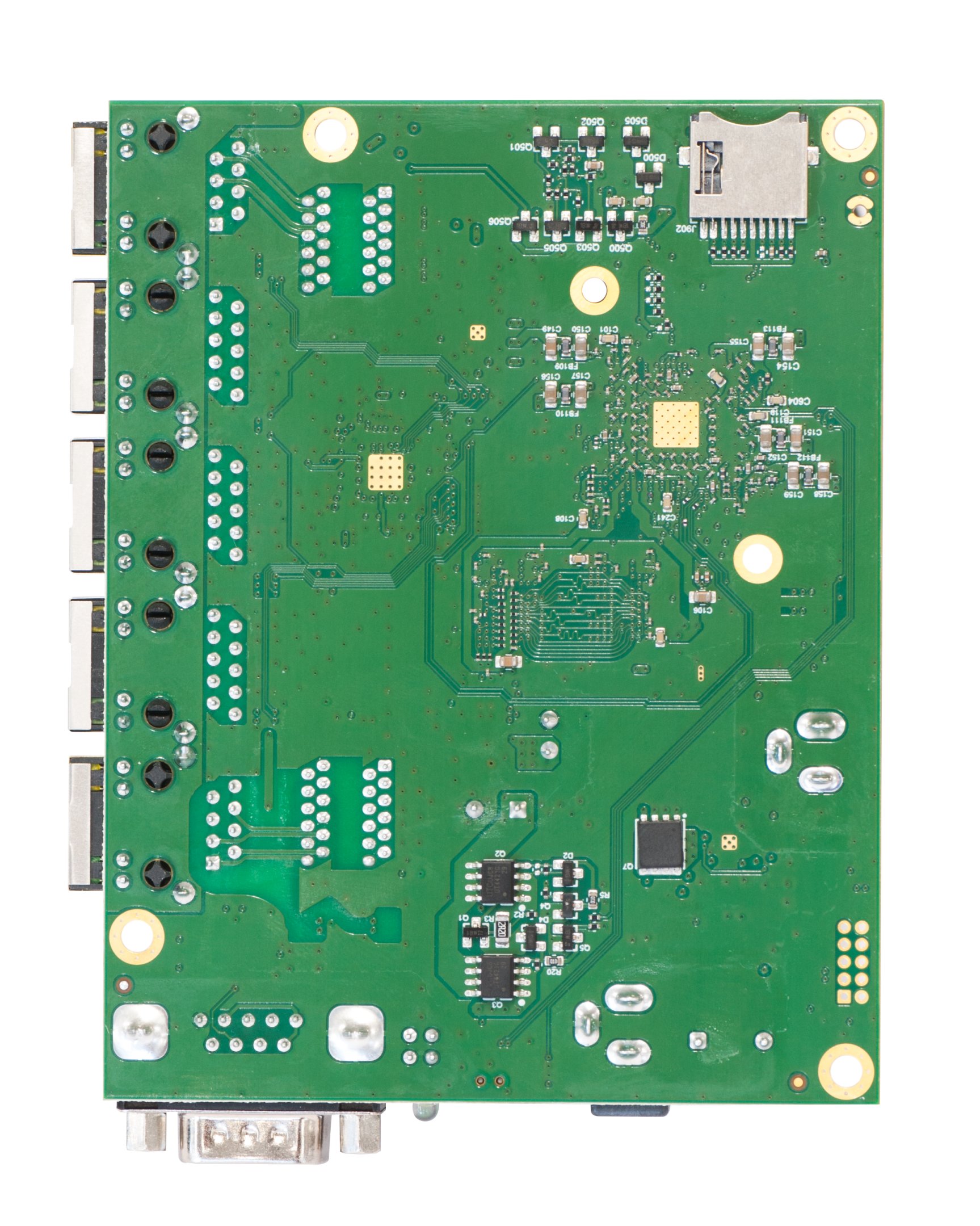

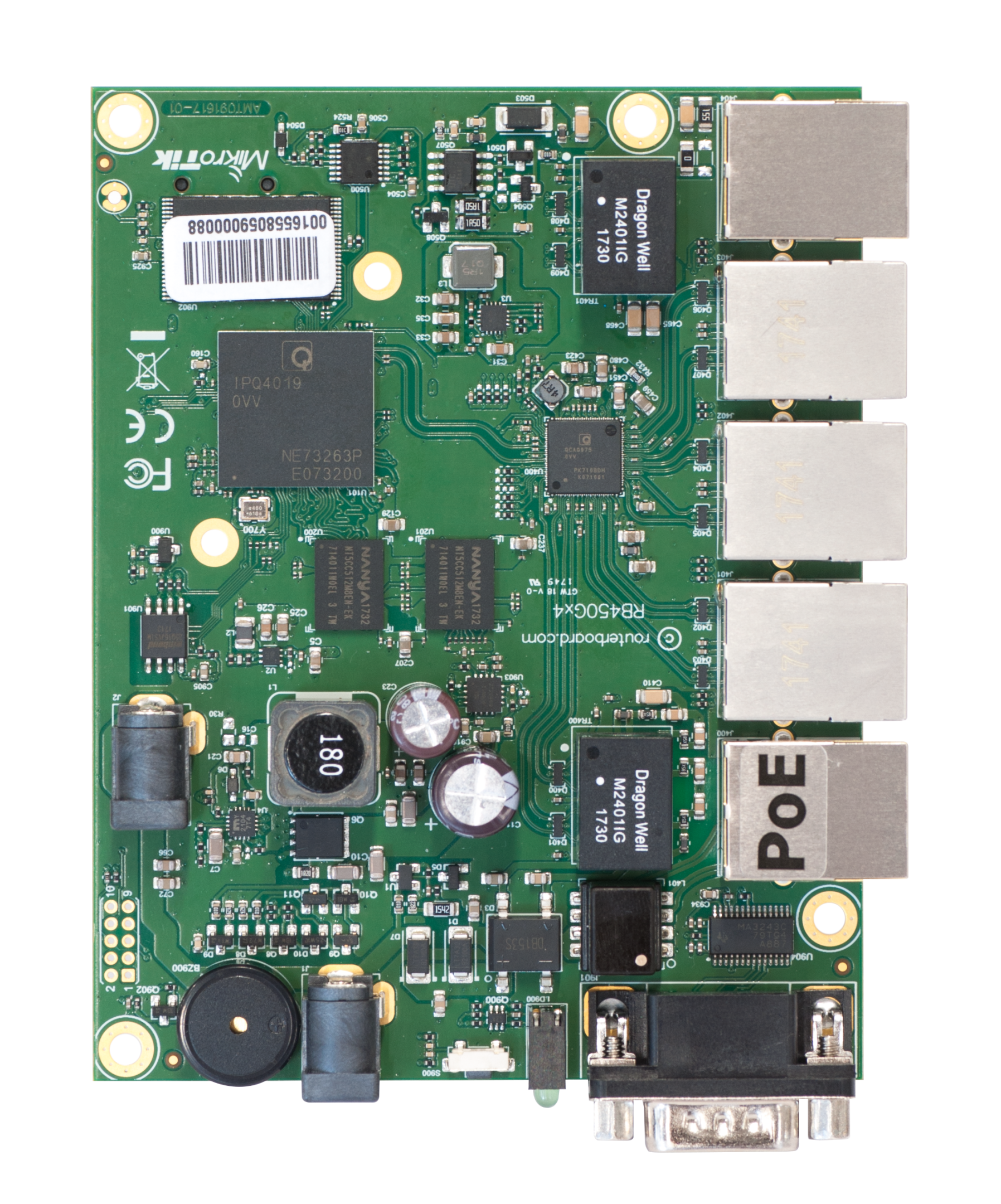

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.
It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.
The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
#2: Included in delivery
- 1x RB450Gx4
#3: Specifications - Technical details
Details | |
---|---|
Product code | RB450Gx4 |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | 90 x 115 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 512 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 3 (DC jack, PoE-IN) |
DC jack input Voltage | 10-57 V |
Max power consumption | 16 W |
Max power consumption without attachments | 4 W |
FAN count | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether5 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 500 mA |
Max out per port output (input 30-57 V) | 500 mA |
Max total out (A) | 500 mA |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Memory card type | microSD |
Serial console port | RS232 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP00 |
#4: Test results according to RFC2544
Ethernet test results
RB450Gx4 | IPQ-4019 1G all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
Bridging | 25 bridge filter rules | 162,5 | 1973.4 | 351,2 | 1438.5 | 352,1 | 180.3 |
Routing | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
Routing | 25 simple queues | 162,5 | 1973.4 | 468,6 | 1919.4 | 493,4 | 252.6 |
Routing | 25 ip filter rules | 162,5 | 1973.4 | 222,8 | 912.6 | 227,4 | 116.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RB450Gx4 | IPQ-4018 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RB450Gx4-Brochure.pdf (0.55 MB)
RB450Gx4-Dimensions.pdf (0.15 MB)
RB450Gx4-Block-Diagramm.pdf (0.02 MB)
