product description
#1: RB3011UiAS-RM

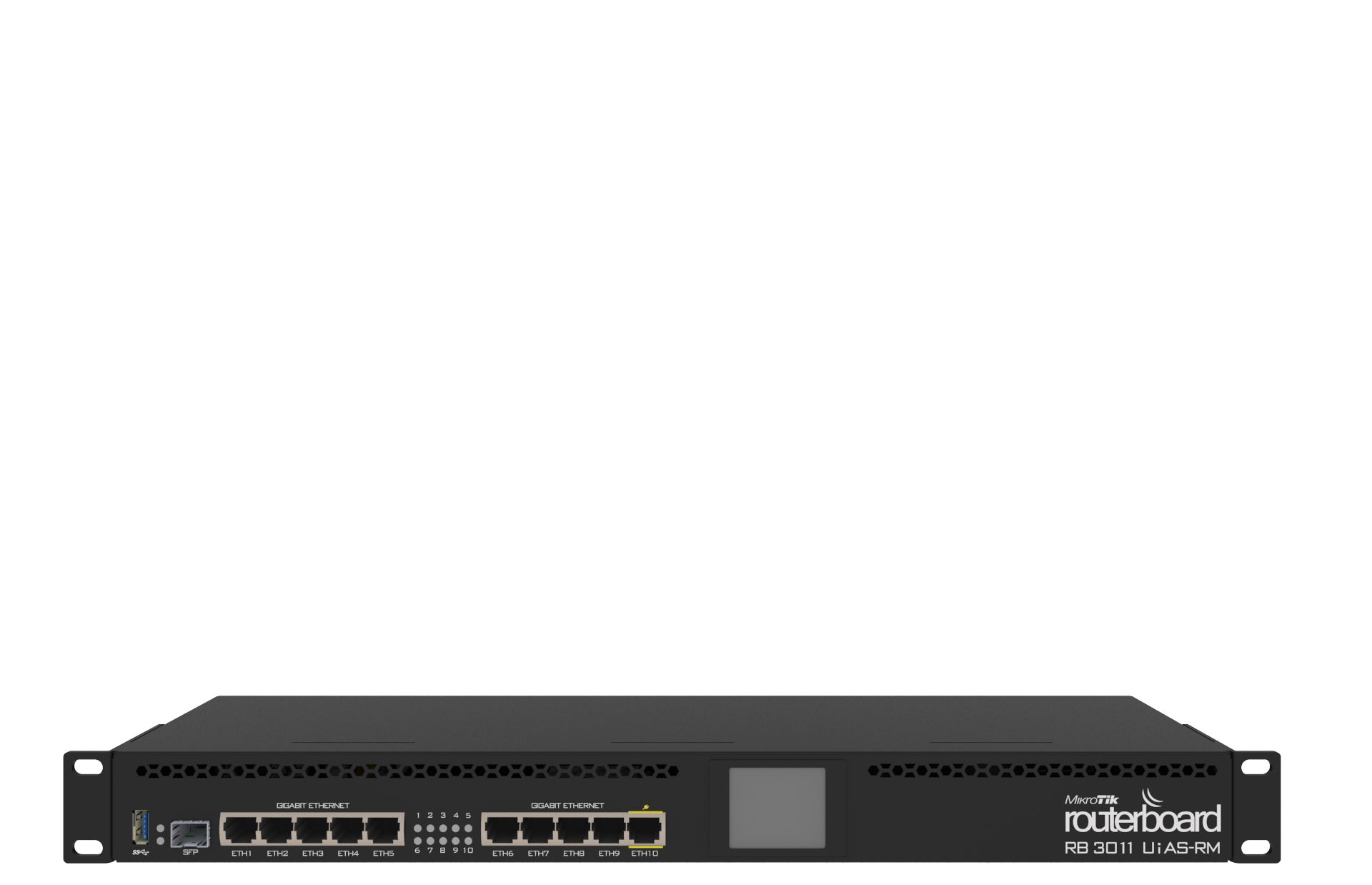

The RB3011 is a multi port device and MikroTiks first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
#2: Included in delivery
- 1x RB3011UiAS-RM
- 1x 24V 1,2A power adapter
- 1x K-19 fastening set
- 2x Rack-ears (black)
#3: Specifications - Technical details
Details | |
---|---|
Product code | RB3011UiAS-RM |
Architecture | ARM 32bit |
CPU | IPQ-8064 |
CPU core count | 2 |
CPU nominal frequency | 1.4 GHz |
Switch chip model | QCA8337 |
Dimensions | 443 x 92 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-30 V |
Max power consumption | 30 W |
Max power consumption without attachments | 10 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-30 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether10 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 600 mA |
Max total out (A) | 600 mA |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 10 |
Fiber
Details | |
---|---|
SFP ports | 1 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB 3.0 type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Beeper | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
#4: Test results according to RFC2544
Ethernet test results
RB3011UiAS-RM | IPQ-8064 All port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 325.0 | 3,946.8 | 939.8 | 3,849.4 | 1,530.2 | 783.5 |
Bridging | 25 bridge filter rules | 325.0 | 3,946.8 | 384.2 | 1,573.7 | 348.6 | 178.5 |
Routing | none (fast path) | 325.0 | 3,946.8 | 939.8 | 3,849.4 | 1,437.6 | 736.1 |
Routing | 25 simple queues | 325.0 | 3,946.8 | 419.6 | 1,718.7 | 419.7 | 214.9 |
Routing | 25 ip filter rules | 202.0 | 2,453.1 | 204.1 | 836.0 | 188.4 | 96.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RB3011UiAS-RM | IPQ-8064 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 69.9 | 782.9 | 76.0 | 311.3 | 75.4 | 38.6 |
256 tunnels | AES-128-CBC + SHA1 | 70.5 | 789.6 | 72.2 | 295.7 | 72.4 | 37.1 |
256 tunnels | AES-128-CBC + SHA256 | 69.5 | 778.4 | 72.2 | 295.7 | 72.4 | 37.1 |
256 tunnels | AES-256-CBC + SHA1 | 69.5 | 778.4 | 72.0 | 294.9 | 72.4 | 37.1 |
256 tunnels | AES-256-CBC + SHA256 | 68.9 | 771.7 | 70.9 | 290.4 | 72.4 | 37.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
