Mikrotik RB260GSP
Product.Nr.: CSS106-1G-4P-1S
Manufacturer: MikroTik
55,90 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 0,7 kg
product description
#1: RB260GSP - CSS106-1G-4P-1S

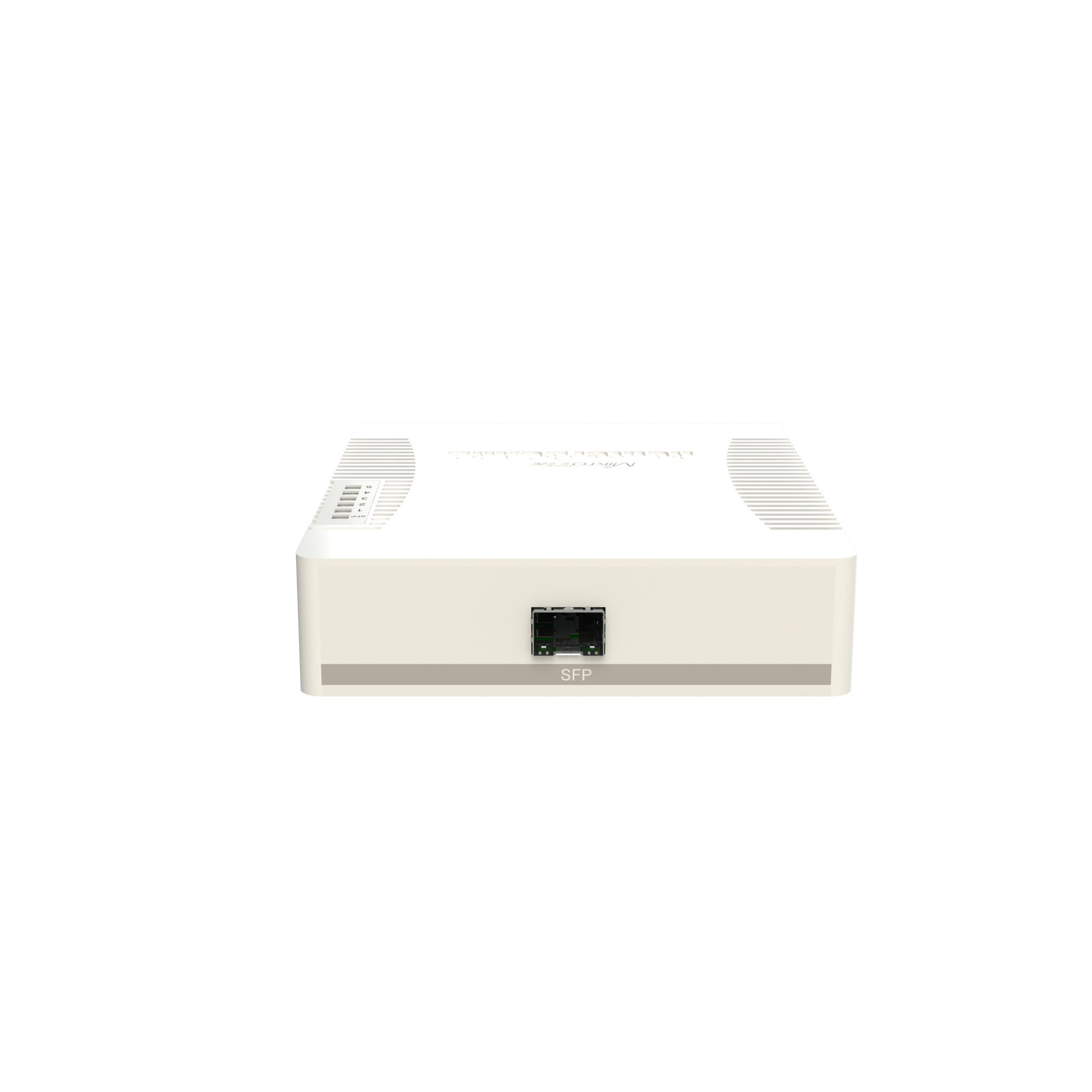

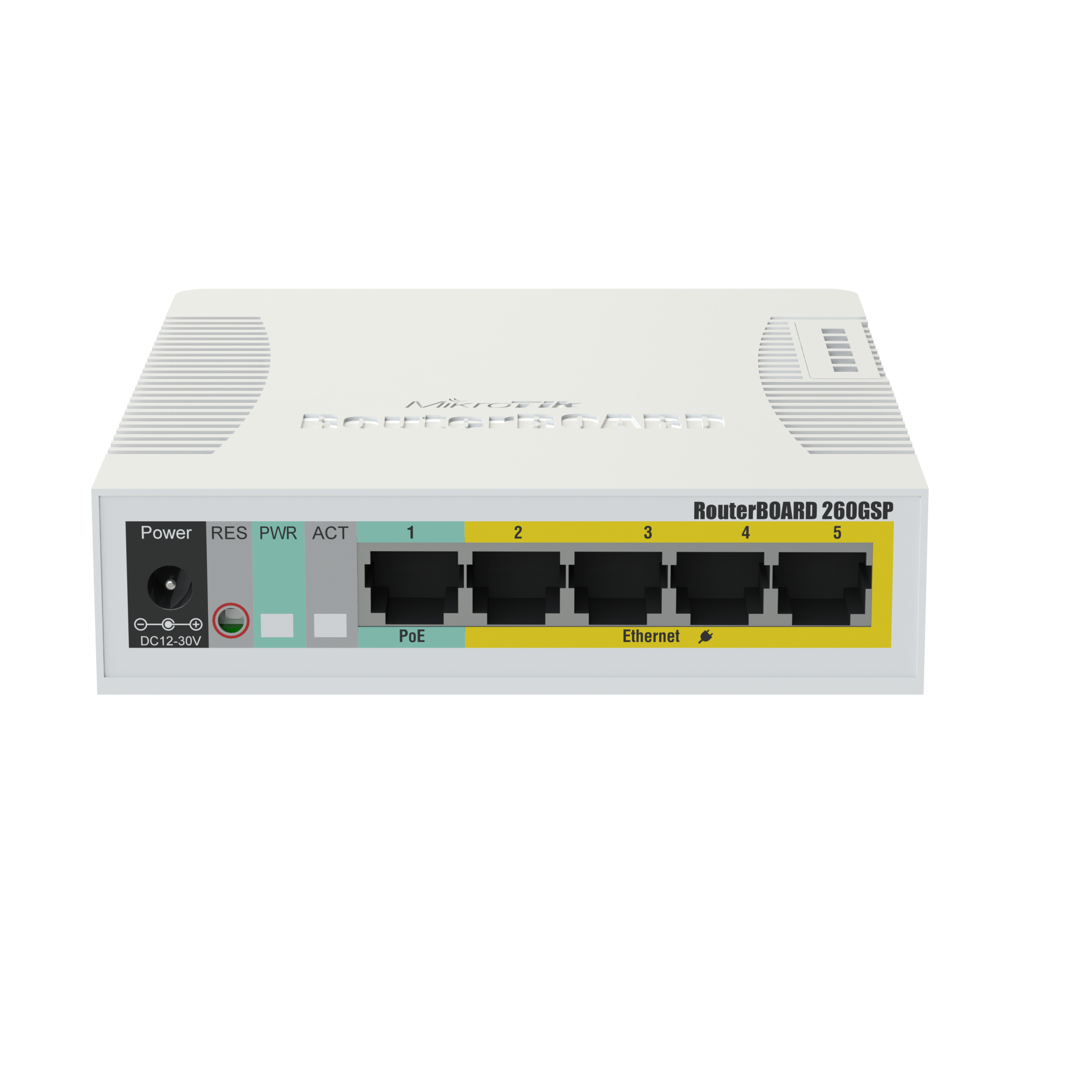

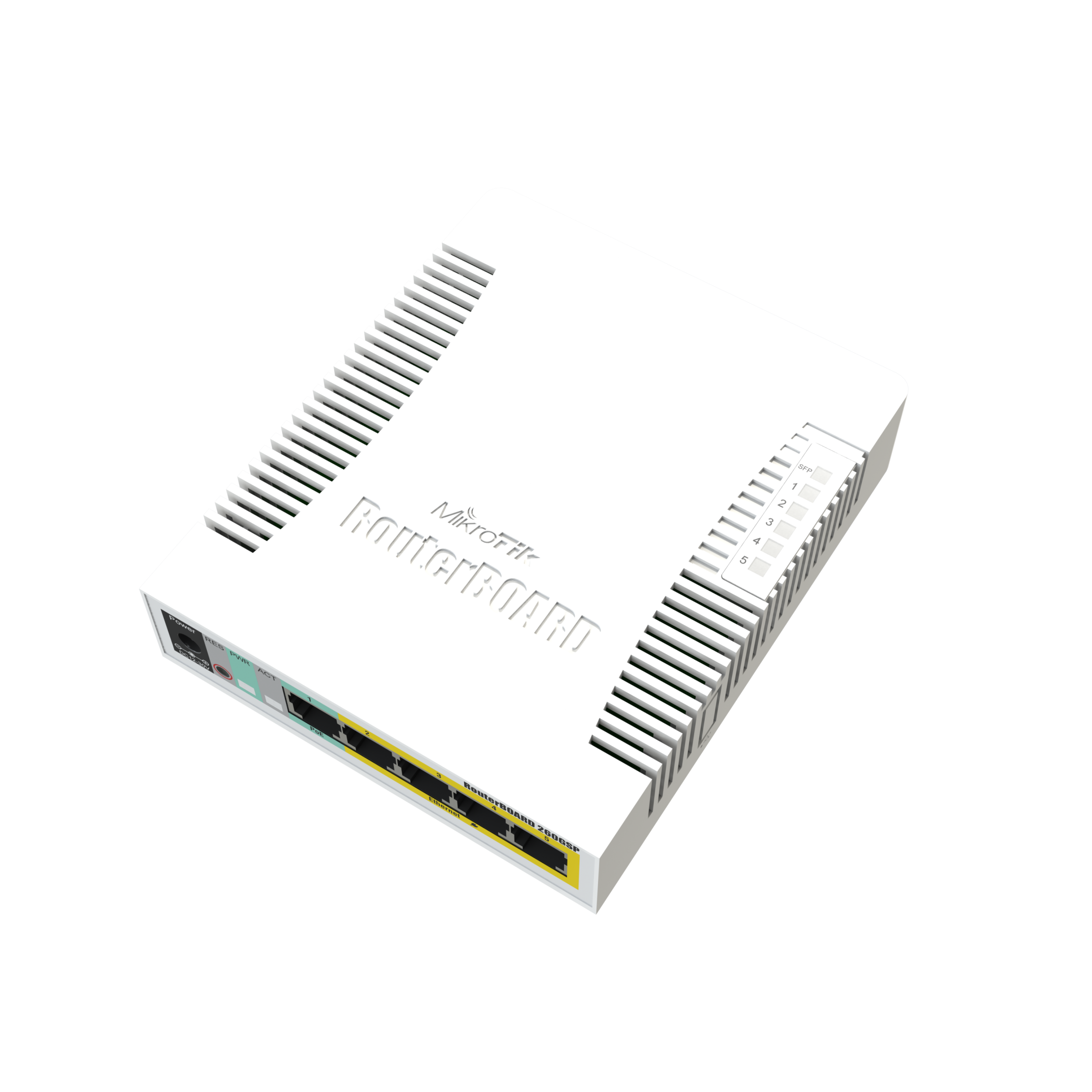

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.
#2: Included in delivery
- 1x CSS106-1G-4P-1S (RB260GSP)
- 1x 24V 2,5A power adapter
- 1x IEC cord
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Switch chip model | QCA8337 |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
#4: Test results according to RFC2544
Switching results
| CSS106-1G-4P-1S | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 487.6 | 5,922.0 | 1,409.8 | 5,774.4 | 8,928.6 | 4,571.4 |
| Switching | Non blocking Layer 2 capacity | 487.6 | 11,844.0 | 1,409.8 | 11,548.9 | 8,928.6 | 9,142.9 |
| Switching | Non blocking Layer 1 throughput | 487.6 | 6,000.0 | 1,409.8 | 6,000.0 | 8,928.6 | 6,000.0 |
| Switching | Non blocking Layer 1 capacity | 487.6 | 12,000.0 | 1,409.8 | 12,000.0 | 8,928.6 | 12,000.0 |
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
CSS106-1G-4P-1S-Brochure.pdf (1.01 MB)
