MikroTik R52HnD
Product.Nr.: R52HnD
Manufacturer: MikroTik
29,75 EUR
RRP 47,60 EUR
you save 37.5% (17,85 EUR)
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 0,02 kg
product description
#1: R52HnD

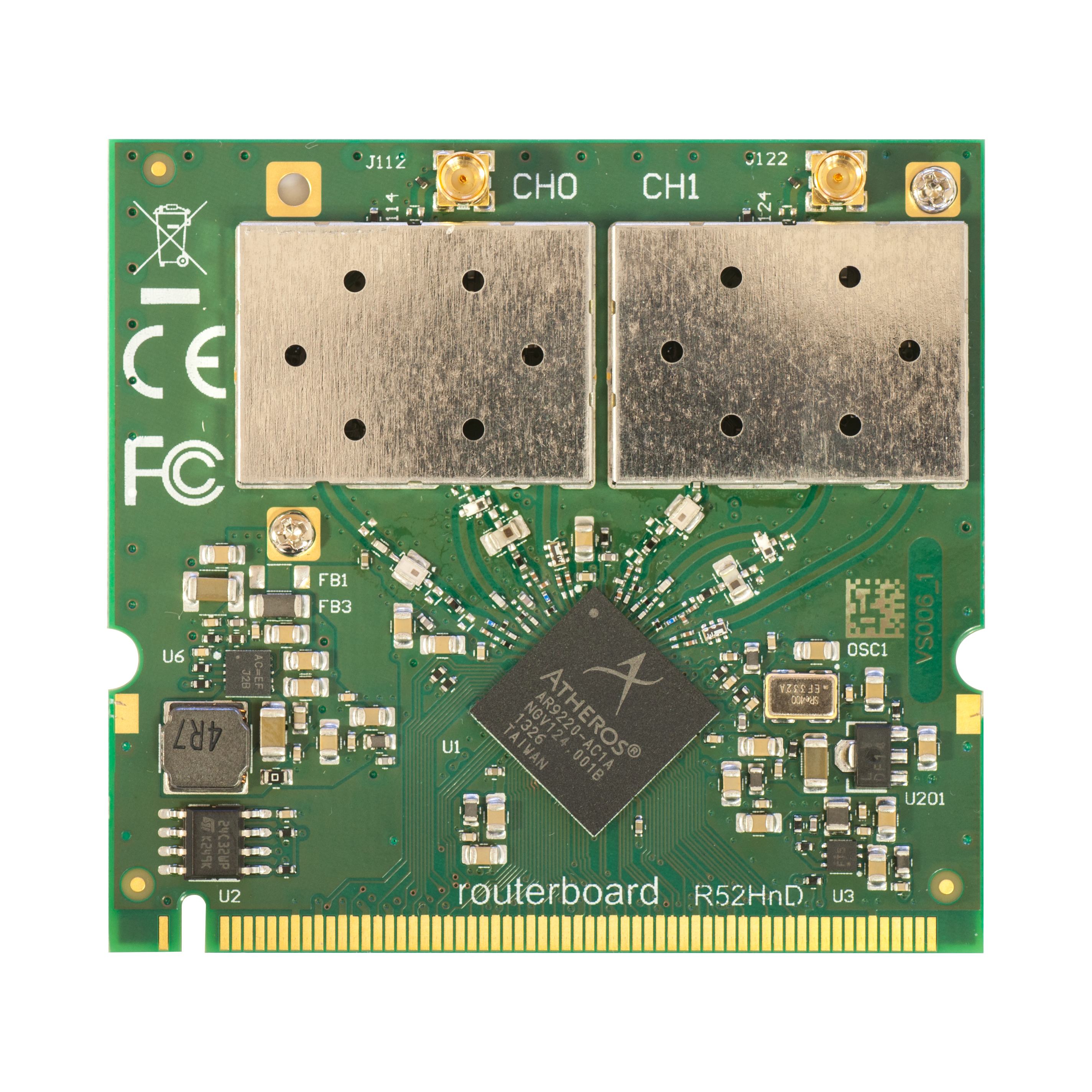

The R52HnD is an update to MikroTiks popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz and now has even higher power and improved ESD protection (+/- 15 kV).
#2: Included in delivery
- 1x R52HnD
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | R52HnD |
| 2GHz | Yes |
| 5GHz | Yes |
| Antenna header count | 2 |
| Certification | FCC, IC |
| Chipset | AR9220 |
| Connector | MMCX |
| Format | miniPCI |
| IP | IP00 |
| Max power consumption | 7 W |
| Output power | 400mW |
| RouterOS compatibility | Yes |
| Tested ambient temperature | -40 ... +70C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz/5 GHz chip model | AR9220 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz number of chains | 2 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/b/g/n |
| Wireless standards | 802.11a/b/g/n |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 23 | -78 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 21 | -78 |
#4: Test results according to RFC2544
-
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
R52HnD-Brochure.pdf (0.64 MB)
R52HnD-Declaration-of-conformity-CE.pdf (0.16 MB)
