MikroTik CSS610-8P-2S+IN
Product.Nr.: CSS610-8P-2S+IN
Manufacturer: MikroTik
226,10 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 2,21 kg
product description
#1: CSS610-8P-2S+IN
CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

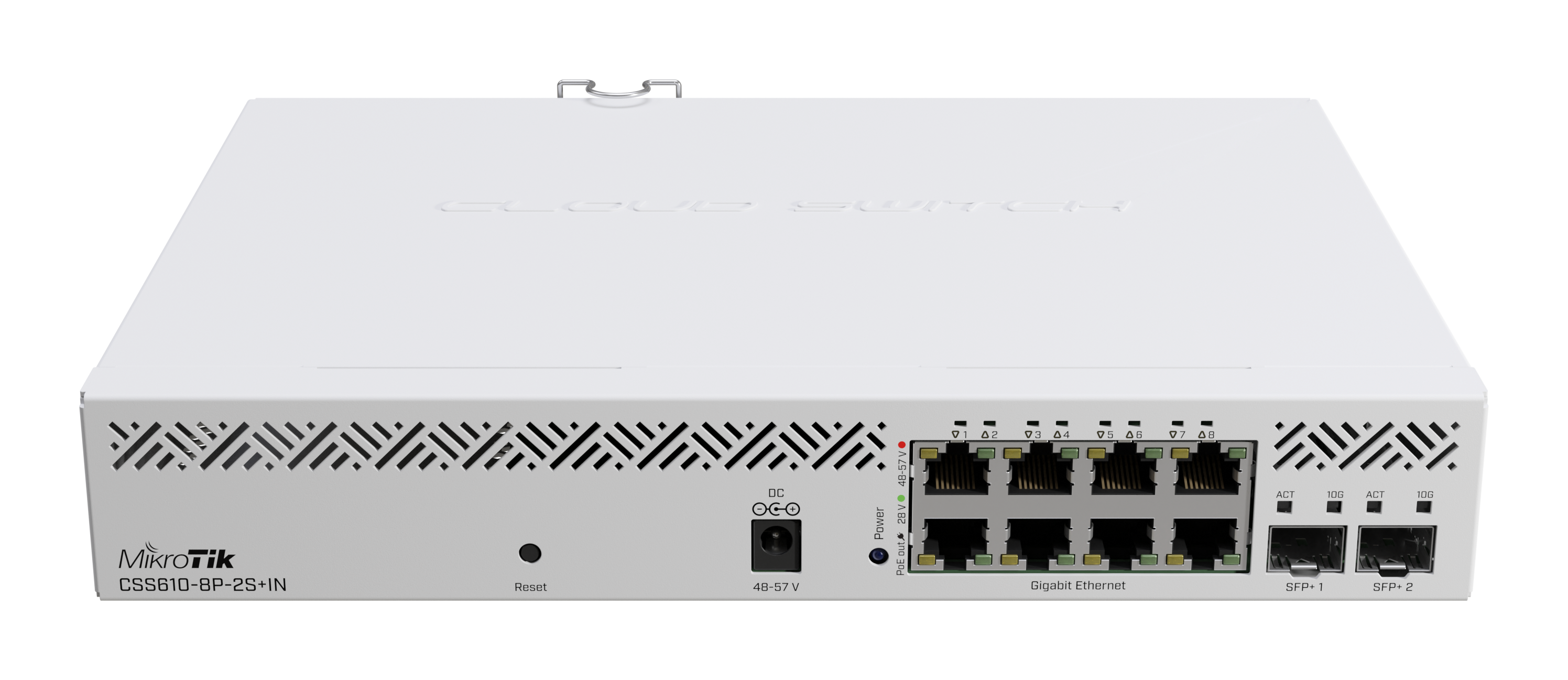

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out (you only need a single PSU to provide both).
This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.
But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!
Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.
CSS610-8P-2S+IN – a solid choice!
#2: Included in delivery
- 1x CSS610-8P-2S+IN
- 1x Rack ears for CSS610-8G-2S+IN
- 1x K-48 fastening set
- 1x IEC cord
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | CSS610-8P-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 272x208x44mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 625 mA |
| Total output power | 140 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
#4: Test results according to RFC2544
Switching results
| CSS610-8P-2S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,275.7 | 27,635.9 | 6,578.9 | 26,947.4 | 41,666.7 | 21,333.3 |
| Switching | Non blocking Layer 2 capacity | 2,275.7 | 55,271.8 | 6,578.9 | 53,894.7 | 41,666.7 | 42,666.7 |
| Switching | Non blocking Layer 1 throughput | 2,275.7 | 28,000.0 | 6,578.9 | 28,000.0 | 41,666.7 | 28,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,275.7 | 56,000.0 | 6,578.9 | 56,000.0 | 41,666.7 | 56,000.0 |
#5: Product video & tips
- Product video: https://www.youtube.com/watch?v=_1AWSxk9cqM
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
CSS610-8P-2SIN-Brochure.pdf (1.47 MB)
