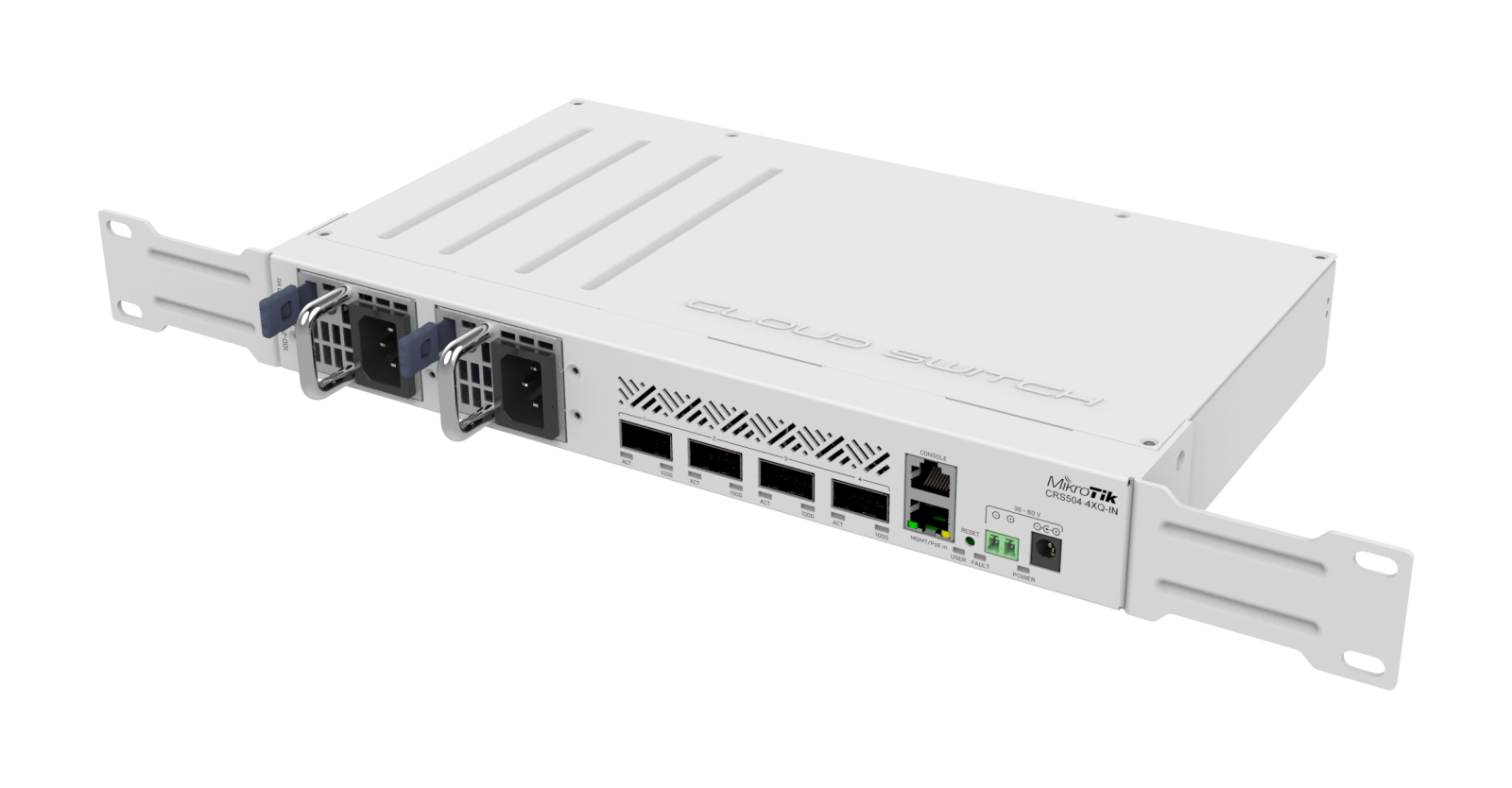

MikroTik CRS504-4XQ-IN

Name: MikroTik CRS504-4XQ-IN
Brand: MikroTik
SKU: CRS504-4XQ-IN
Price: 796.11 EUR
Availability: InStock

Product.Nr.: CRS504-4XQ-IN

Manufacturer: MikroTik

796,11 EUR
incl. 19 % VAT

excl. shipping costs

Sofort versandfähig
delivery time sofort lieferbar
weight 2,5 kg

pieces

product description

#1: CRS504-4XQ-IN

MikroTiks 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Obviously, there is an Ethernet port for management purposes as well.

We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

#2: Included in delivery

1x CRS504-4XQ-IN
2x eack ears (CRS504)
1x K10 fastening set
2x IEC cords

#3: Specifications - Technical details

Details
Product code	CRS504-4XQ-IN
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX4310
Dimensions	320 x 185 x 44 mm
RouterOS license	5
Operating System	RouterOS (v7 only)
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Frequency (Hz)	47-63
Max power consumption	41 W
Max power consumption without attachments	25 W
Cooling type	2 fans
PoE in	802.3 bt
PoE in input Voltage	43-57 V

Ethernet

Details
10/100 Ethernet ports	1

Fiber

Details
Number of 100G QSFP28 ports	4

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

#4: Test results according to RFC2544

Switching results

CRS504-4XQ-IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	32,517.9	394,897.1	94,008.5	385,058.6	595,386.9	304,838.1
Switching	Non blocking Layer 2 capacity	32,517.9	789,794.3	94,008.5	770,117.3	595,386.9	609,676.2
Switching	Non blocking Layer 1 throughput	32,517.9	400,100.0	94,008.5	400,100.0	595,386.9	400,100.0
Switching	Non blocking Layer 1 capacity	32,517.9	800,200.0	94,008.5	800,200.0	595,386.9	800,200.0

Ethernet test results

CRS504-4XQ-IN		QCA9531 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	37,4	454.2	82,8	339.1	162,5	83.2
Bridging	25 bridge filter rules	33,8	410.5	47,8	195.8	75,6	38.7
Routing	none (fast path)	37,2	451.8	73,3	300.2	144,9	74.2
Routing	25 simple queues	36,4	442.0	52,4	214.6	54,4	27.9
Routing	25 ip filter rules	33,8	410.5	41,4	169.6	41,7	21.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
