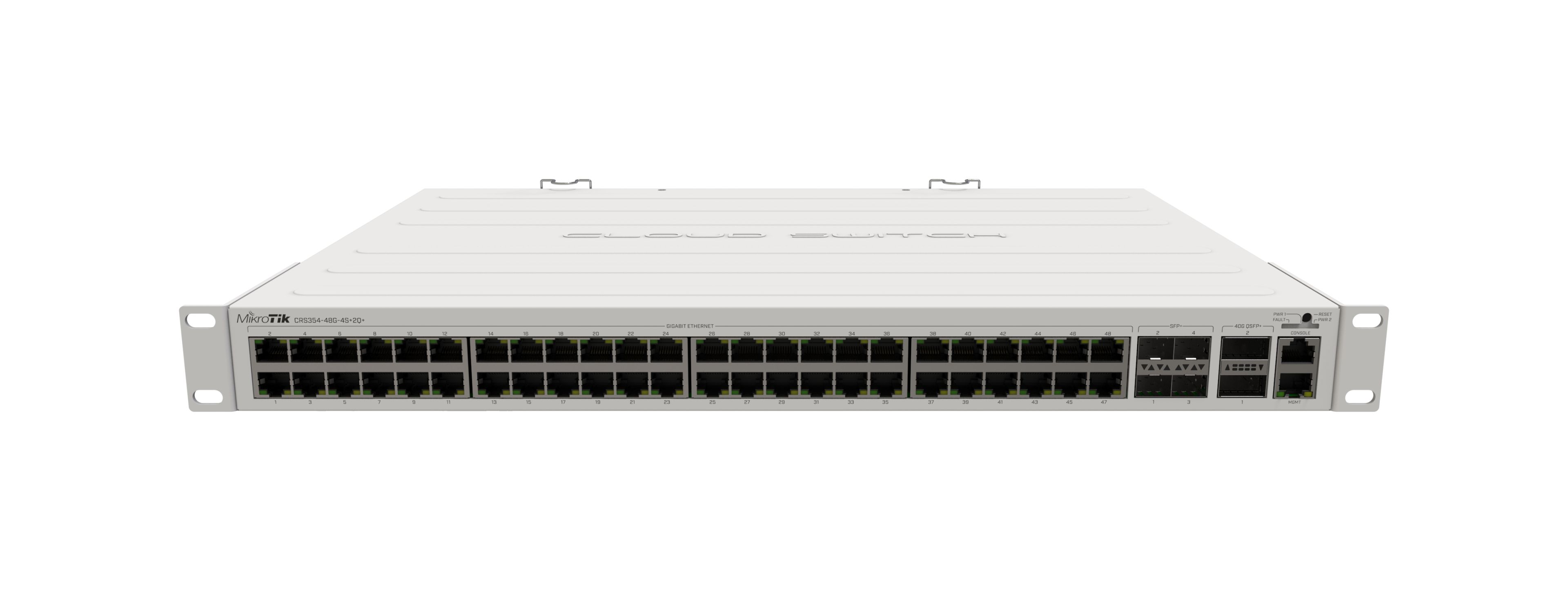

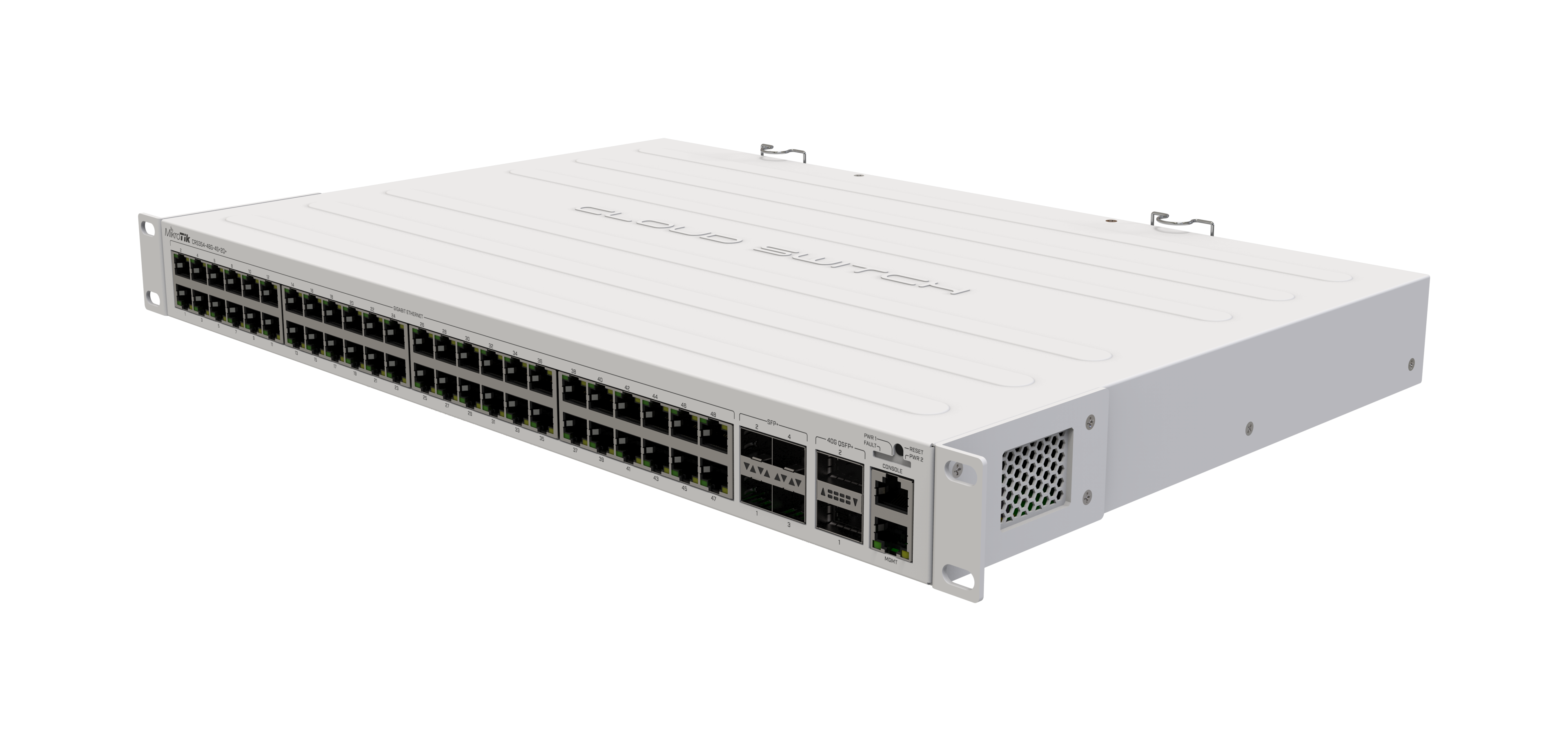

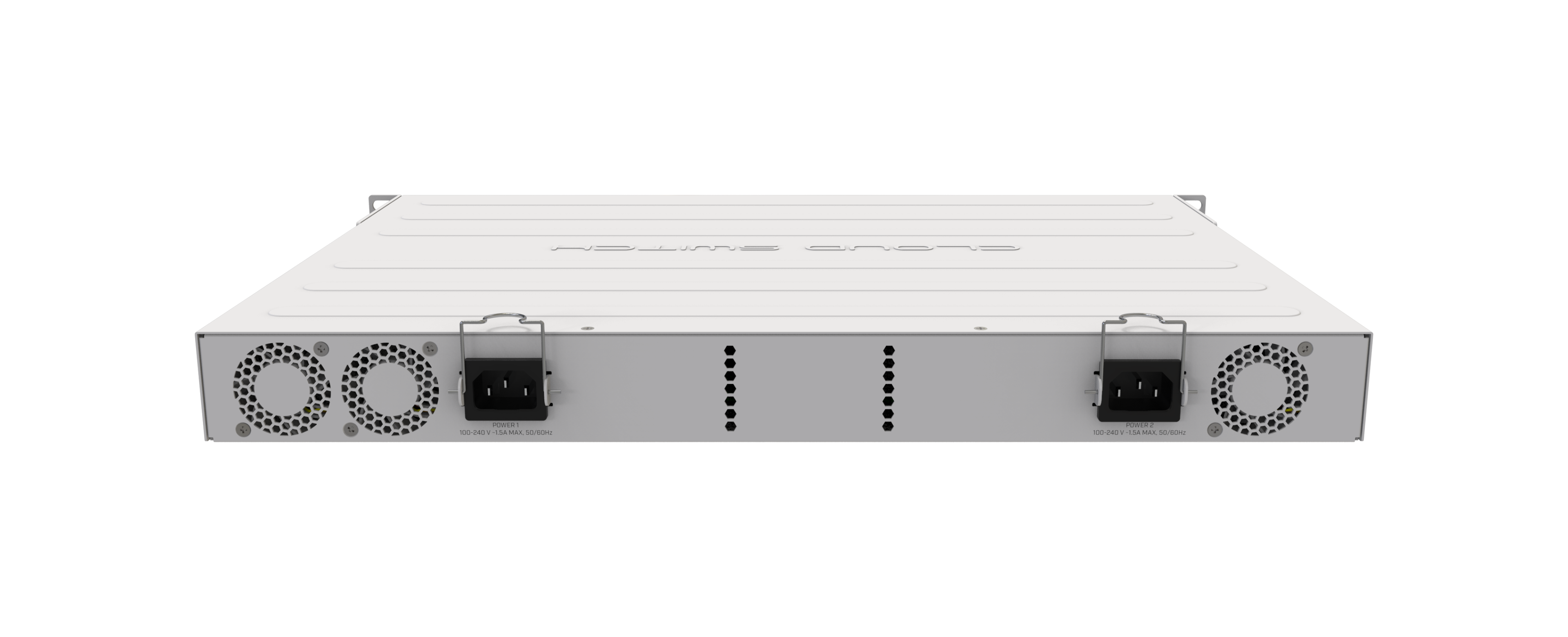

MikroTik CRS354-48G-4S+2Q+RM
Product.Nr.: CRS354-48G-4S+2Q+RM
Manufacturer: MikroTik
606,90 EUR
incl. 19 % VAT
product description
#1: CRS354-48G-4S+2Q+RM
Wenn Sie nach einem einzigen Switch suchen, der Ihr Netzwerk ohne großen Aufwand auf Vordermann bringt, dann suchen Sie nicht weiter. Der neue CRS354-48G-4S+2Q+RM ist eine effektive und anpassungsfähige Rackmount-Lösung für die Verwaltung von Netzwerken in anspruchsvollen und stark ausgelasteten Umgebungen. Mit diesem Produkt will Mikrotik bzgl. Preis-Leistungs-Performance die Latte höher legen - mehr Funktionen bei deutlich geringeren Ausgaben!
Dieser leistungsstarke Switch verfügt über 48 x 1G RJ45-Ports und 4 x 10G SFP+-Ports. Außerdem gibt es 2 x 40G QSFP+-Ports für extrem schnelle Glasfaserverbindungen oder die Verbindung mit anderen 40 Gbit/s-Geräten. Der gesamte ungehinderte Durchsatz beträgt 168Gbit/s, die Switching-Kapazität 336Gbit/s und die Weiterleitungsrate erreicht 235Mpps.
#2: Included in delivery
- 1x CRS354-48G-4S+2Q+RM
- 2x IEC cords
- 1x Cable management brackets
- 1x Rackmount ears (CRS354)
- 1x K-48 fastening set
#3: Specifications - Technical details
Details | |
---|---|
Product code | CRS354-48G-4S+2Q+RM |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Switch chip model | 98DX3257 |
Dimensions | 297 x 443 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS / SwitchOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
Powering
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Max power consumption | 60 W |
Max power consumption without attachments | 50 W |
Cooling type | 3 fans |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
10/100/1000 Ethernet ports | 48 |
Fiber
Details | |
---|---|
SFP+ ports | 4 |
Number of 40G QSFP+ ports | 2 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
#4: Test results according to RFC2544
Switching results
CRS354-48G-4S+2Q+RM | |||||||
---|---|---|---|---|---|---|---|
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Switching | Non blocking Layer 2 throughput | 13,662.2 | 165,914.0 | 39,497.2 | 161,780.5 | 250,148.8 | 128,076.2 |
Switching | Non blocking Layer 2 capacity | 13,662.2 | 331,828.1 | 39,497.2 | 323,560.9 | 250,148.8 | 256,152.4 |
Switching | Non blocking Layer 1 throughput | 13,662.2 | 168,100.0 | 39,497.2 | 168,100.0 | 250,148.8 | 168,100.0 |
Switching | Non blocking Layer 1 capacity | 13,662.2 | 336,200.0 | 39,497.2 | 336,200.0 | 250,148.8 | 336,200.0 |
Ethernet test results
CRS354-48G-4S+2Q+RM | QCA9531 all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
