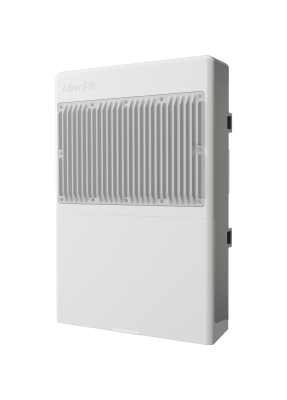

MikroTik CRS318-16P-2S+OUT - netPower 16P
Product.Nr.: CRS318-16P-2S+OUT
Manufacturer: MikroTik
https://www.mikrotik-store.eu/en/mikrotik-crs318-16p-2sout-netpower-16p
261,80 EUR
RRP 285,60 EUR
you save 8.3% (23,80 EUR)
incl. 19 % VAT
product description
#1: CRS318-16P-2S+OUT - netPower 16P

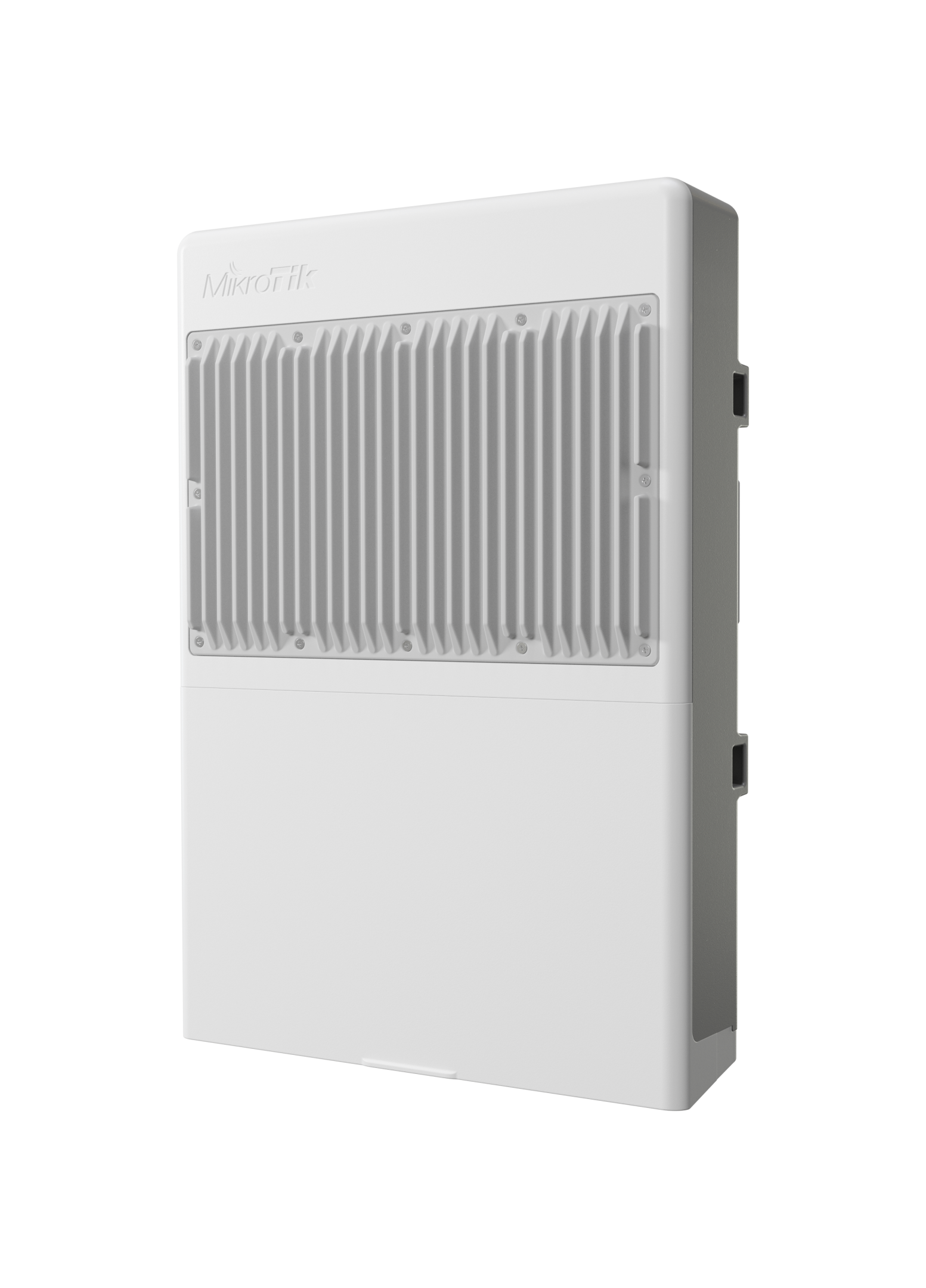

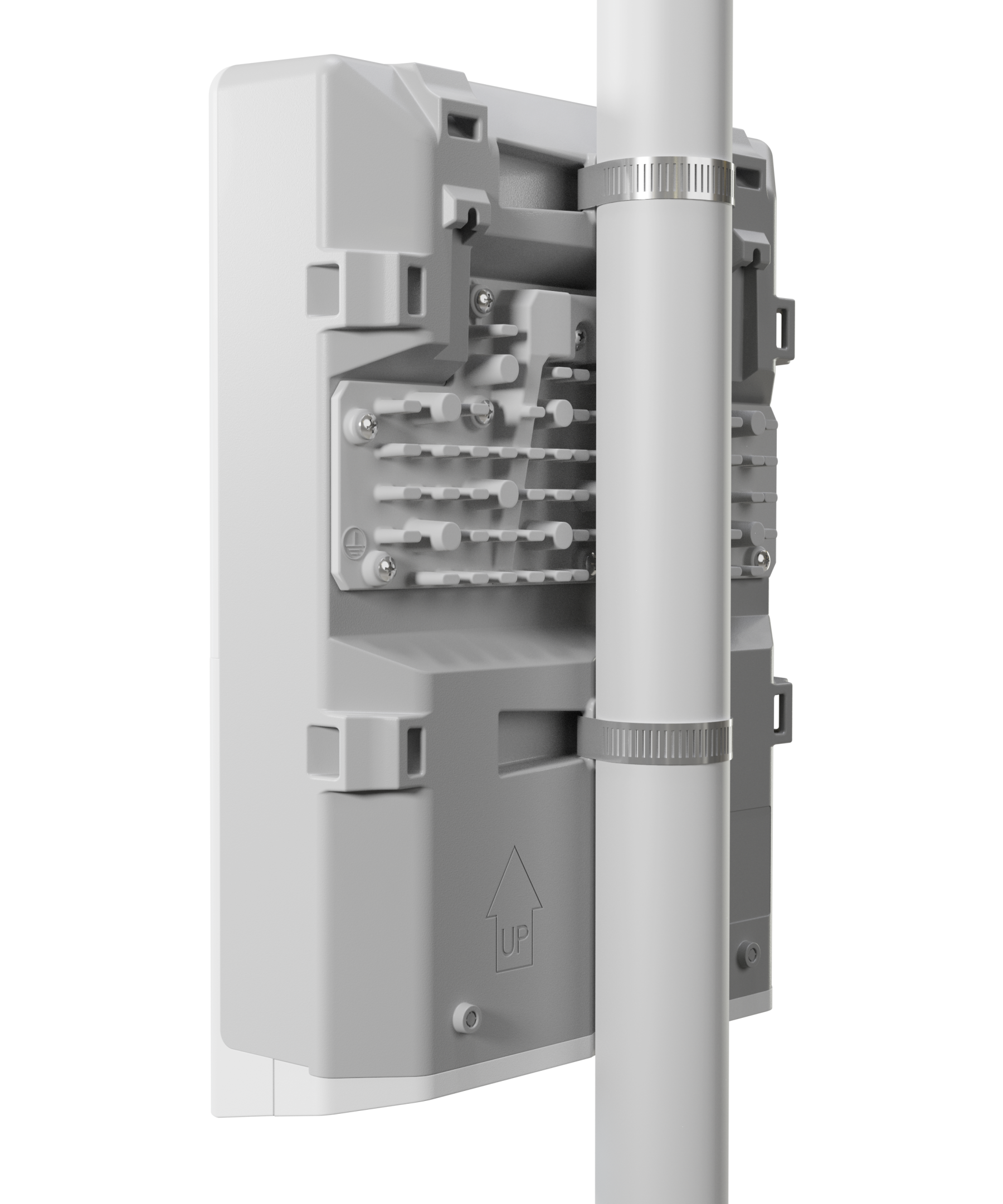

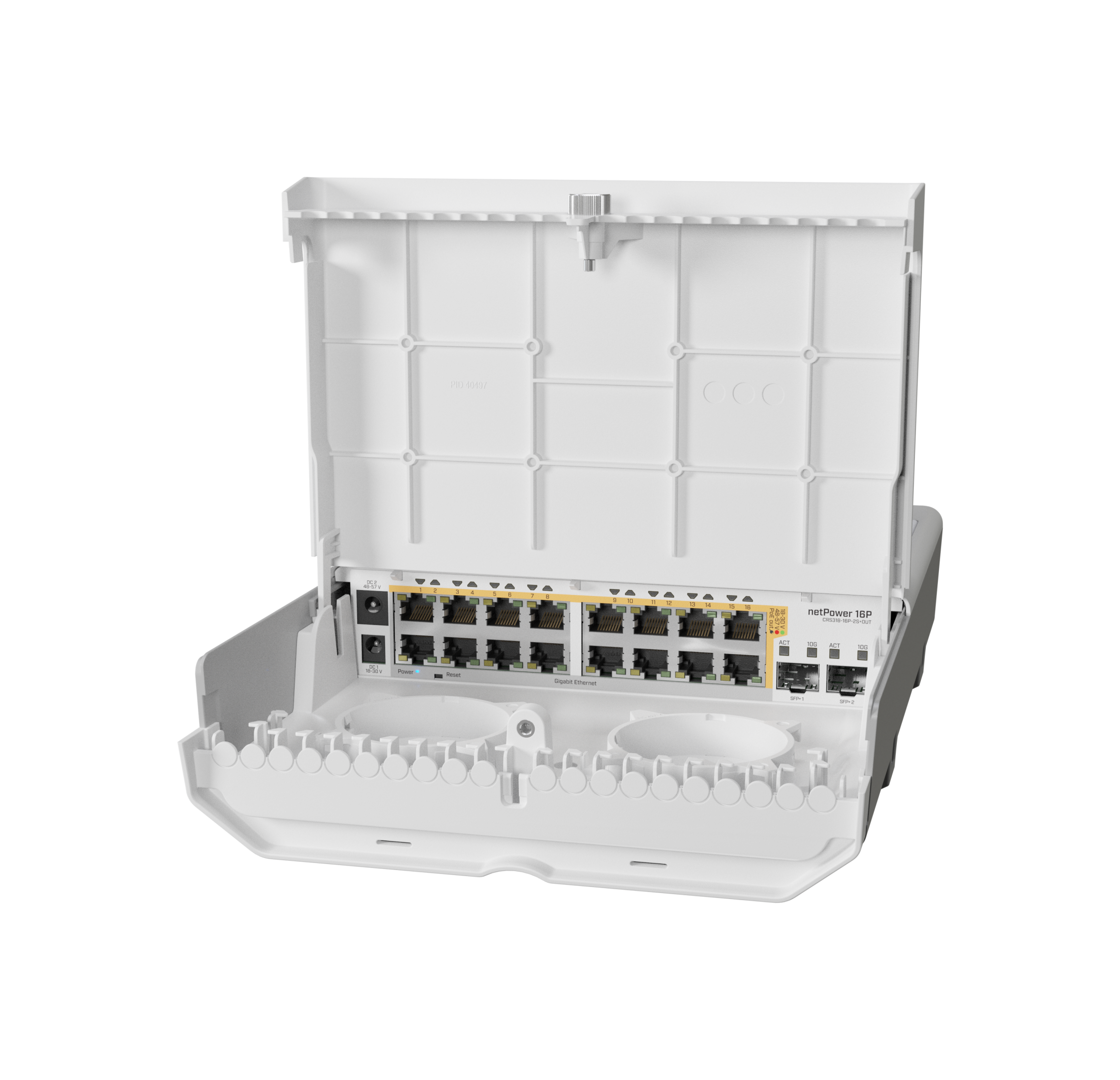

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks. Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps. netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps. Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
- Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
#2: Included in delivery
- 1x CRS318-16P-2S+OUT (netPower 16P)
- 2x hose clamp (metal)
- 1x K-66 fastening set
- 1x DC to terminal block adapter x2
#3: Specifications - Technical details
Details | |
---|---|
Product code | CRS318-16P-2S+OUT |
Architecture | ARM 32bit |
CPU | 98DX226S |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Switch chip model | 98DX226S |
Dimensions | 303 x 212 x 78 mm |
RouterOS license | 5 |
Operating System | RouterOS / SwitchOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack) |
DC jack input Voltage | 18-30 V / 48-57 V |
Max power consumption | 316 W |
Max power consumption without attachments | 16 W |
Cooling type | Passive |
PoE-out
Details | |
---|---|
PoE-out ports | Ether1-Ether16 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1.1 A |
Max out per port output (input 30-57 V) | 0.6 A |
Max total out (A) | 2.8A (18V-30V) & 1.4A (48V-57V) x2 A |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 16 |
Number of 1G Ethernet ports with PoE-out | 16 |
Fiber
Details | |
---|---|
SFP+ ports | 2 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP54 |
#4: Test results according to RFC2544
Switching results
CRS318-16P-2S+OUT | |||||||
---|---|---|---|---|---|---|---|
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Switching | Non blocking Layer 2 throughput | 2,925.9 | 35,531.9 | 8,458.6 | 34,646.6 | 53,571.4 | 27,428.6 |
Switching | Non blocking Layer 2 capacity | 2,925.9 | 71,063.7 | 8,458.6 | 69,293.2 | 53,571.4 | 54,857.1 |
Switching | Non blocking Layer 1 throughput | 2,925.9 | 36,000.0 | 8,458.6 | 36,000.0 | 53,571.4 | 36,000.0 |
Switching | Non blocking Layer 1 capacity | 2,925.9 | 72,000.0 | 8,458.6 | 72,000.0 | 53,571.4 | 72,000.0 |
Ethernet test results
CRS318-16P-2S+OUT | 98DX226 all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 104,1 | 1264.2 | 119,1 | 487.8 | 141,1 | 72.2 |
Bridging | 25 bridge filter rules | 59,7 | 725.0 | 59,7 | 244.5 | 70,4 | 36.0 |
Routing | none (fast path) | 104,1 | 1264.2 | 129,7 | 531.3 | 143,5 | 73.5 |
Routing | 25 simple queues | 56,7 | 688.6 | 57,9 | 237.2 | 65,2 | 33.4 |
Routing | 25 ip filter rules | 44,1 | 535.6 | 45,6 | 186.8 | 48,4 | 24.8 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- ####
- Questions? Please contact us: sales@mikrotik-store.eu - +49 7161 9849955
- ####
- Product video: -
- ####
- Quick guide: https://help.mikrotik.com/docs/pages/viewpage.action?pageId=247169063
- User manual: https://help.mikrotik.com/docs/display/UM/netPower+16P#
- RouterOS manual: https://help.mikrotik.com/docs/display/ROS/RouterOS
- SwOS manual: https://help.mikrotik.com/docs/display/SWOS/SwOS
- SFP compatibility list: https://help.mikrotik.com/docs/display/ROS/MikroTik+wired+interface+compatibility
- ####
- Winbox, Software & Updates: https://mikrotik.com/download
- ####
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
- ####
Downloads
CRS318-16P-2SOUT-Brochure.pdf (0.78 MB)
CRS318-16P-2SOUT-Block-Diagramm.pdf (0.02 MB)
CRS318-16P-2SOUT-Mounting-template.pdf (1.56 MB)
