MikroTik CCR2216-1G-12XS-2XQ
Product.Nr.: CCR2216-1G-12XS-2XQ
Manufacturer: MikroTik
2.872,36 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- In stock 2
- weight 6 kg
product description
#1: CCR2216-1G-12XS-2XQ

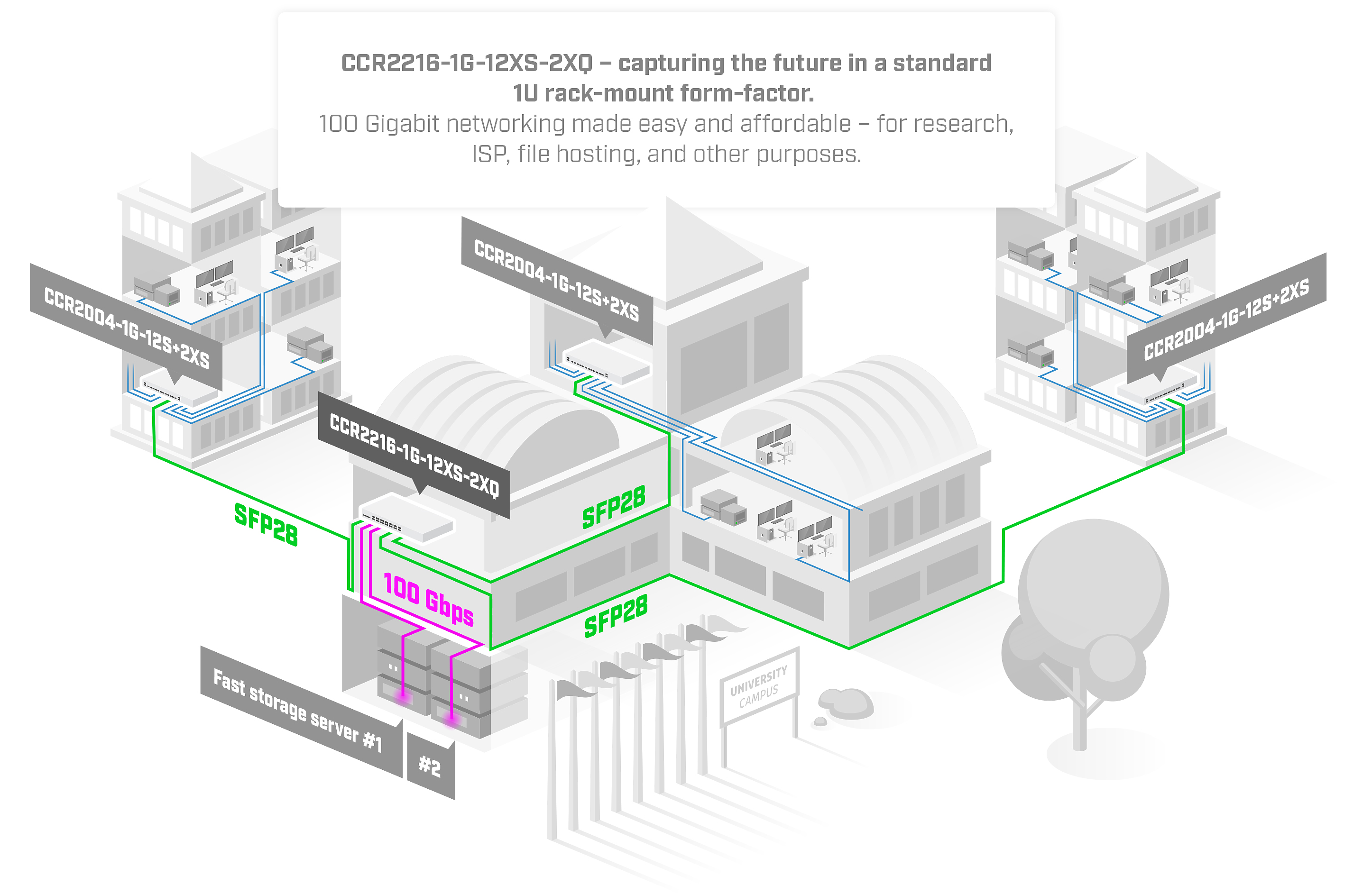

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

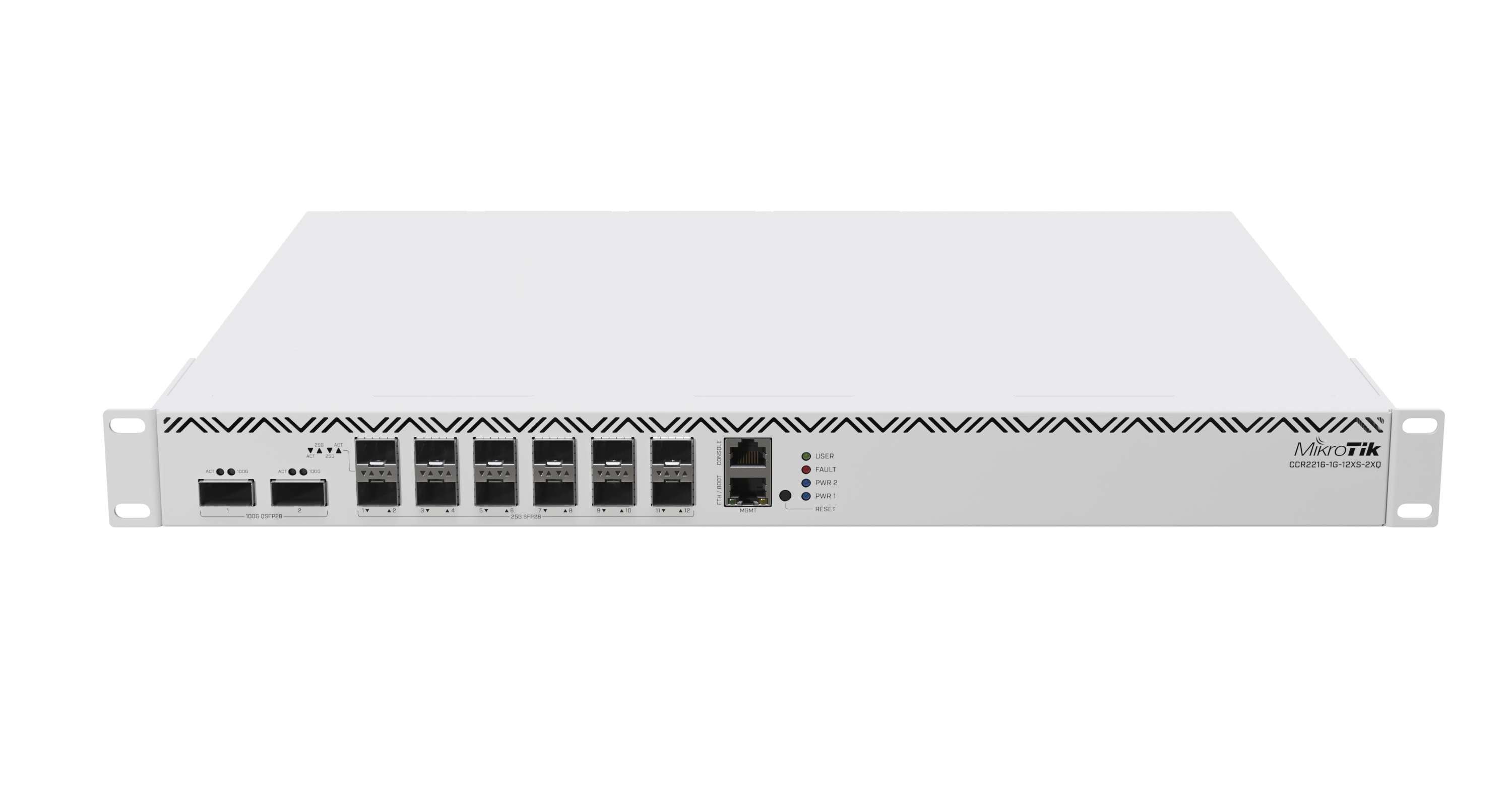

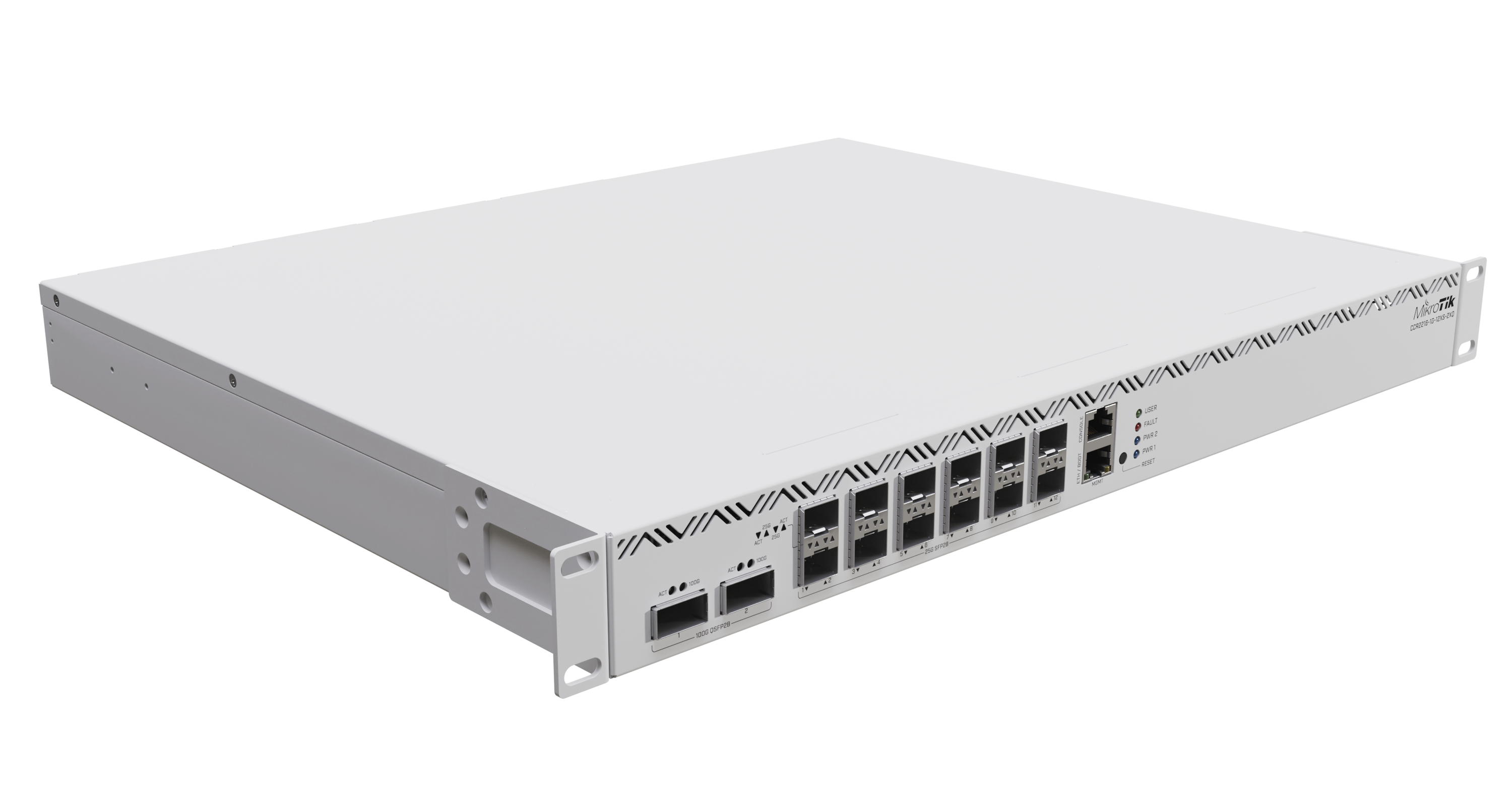

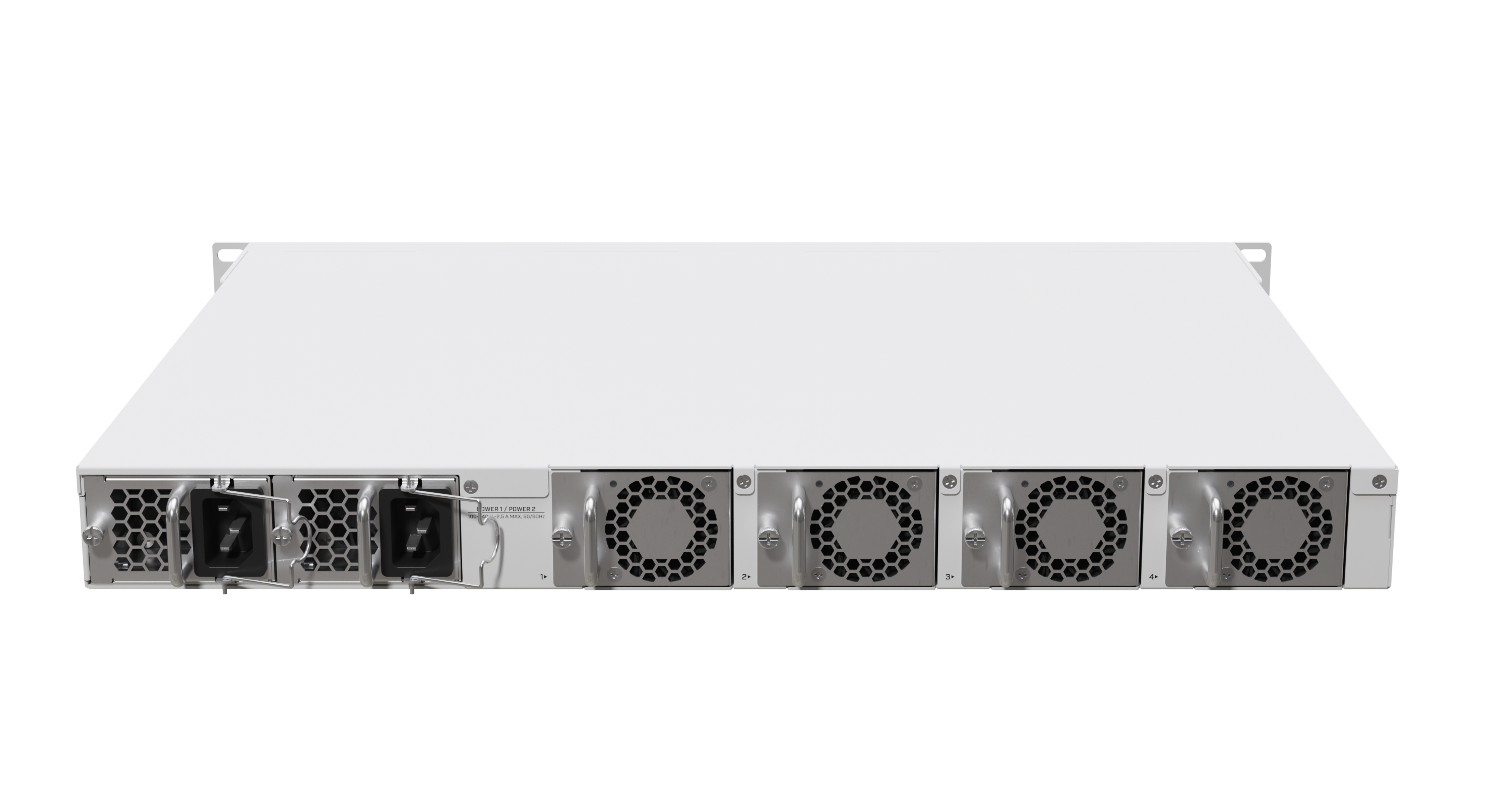

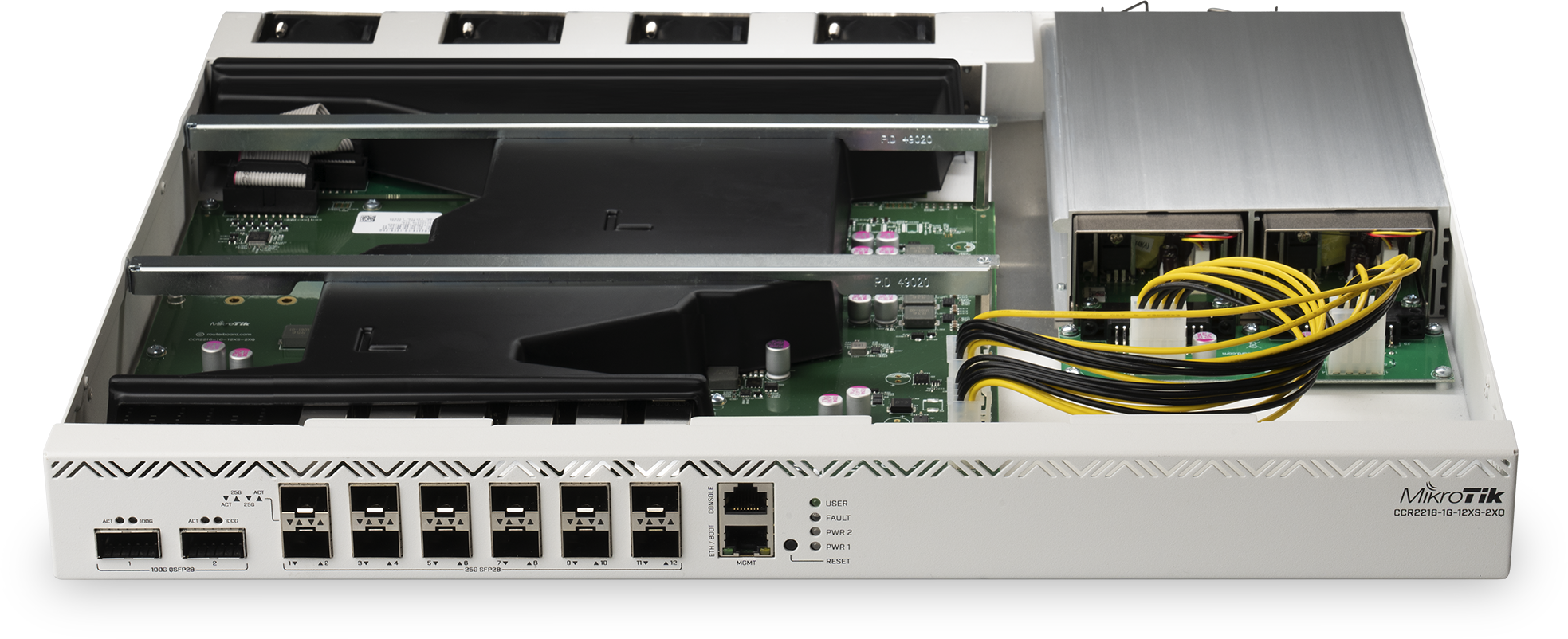

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

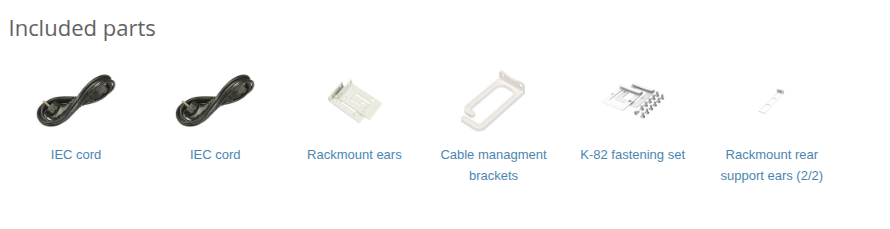

#2: Included in delivery
- 1x CCR2216-1G-12XS-2XQ
- 2x IEC cords
- 2x rackmount ears
- 1x cable management brackets
- 1x K-82 fastening set
- 2x Rackmount rear support ears
#2.1 Spare parts available separately
- Suitable spare power supply unit: 12POW150
- Suitable replacement fan: MT-HotSwapFan
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | CCR2216-1G-12XS-2XQ |
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| Switch chip model | 98DX8525 |
| Dimensions | 443 x 367 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 128 W |
| Max power consumption without attachments | 80 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of M.2 slots | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |

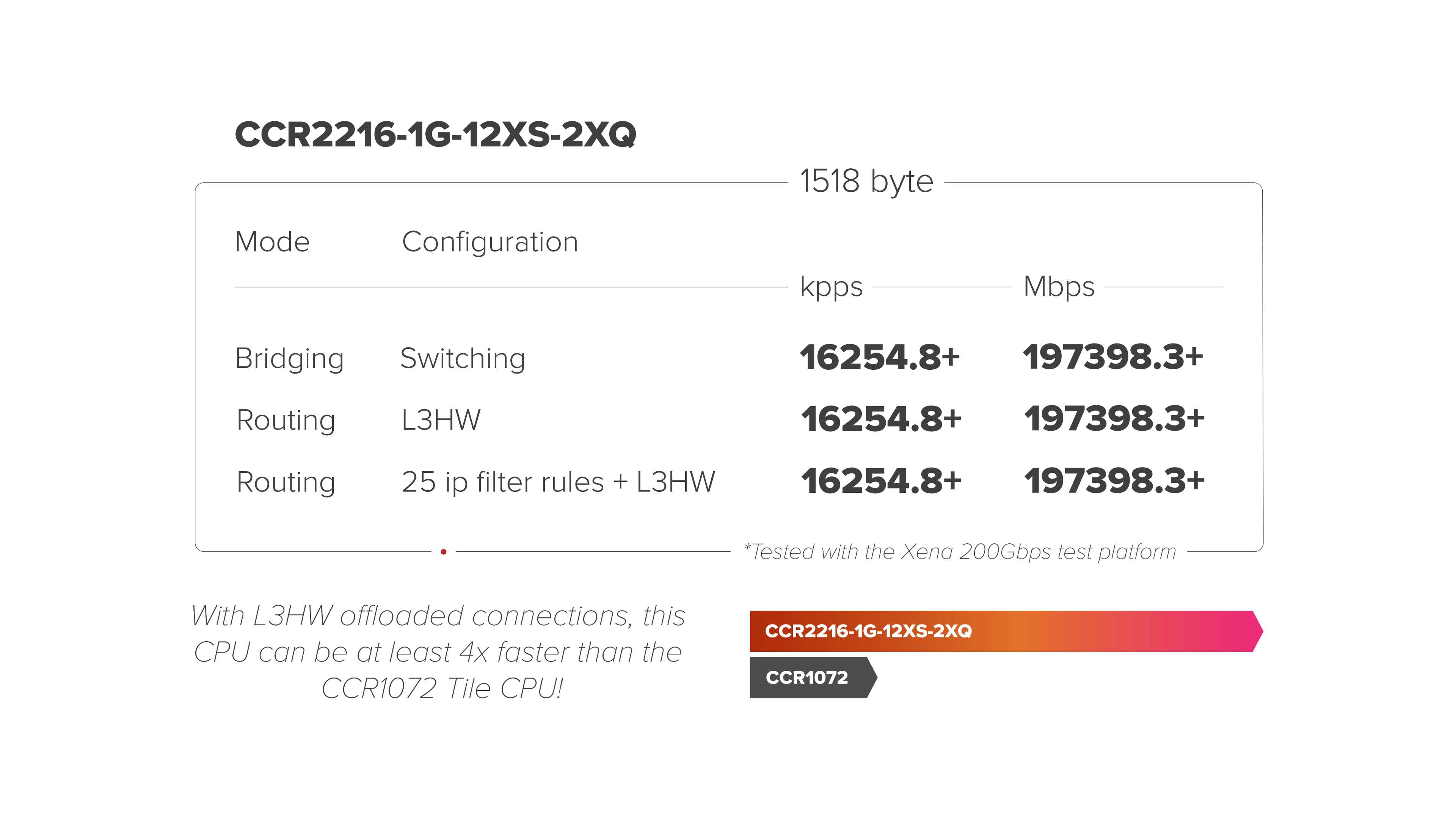

#4: Test results according to RFC2544
Ethernet test results
| CCR2216-1G-12XS-2XQ | AL73400 all port test (CCR2216) | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 6075.3 | 73778.4 | 10300.9 | 42192.5 | 22954.5 | 11752.7 |
| Bridging | 25 bridge filter rules | 3411.1 | 41424.4 | 3416.1 | 13992.3 | 2940.8 | 1505.7 |
| Routing | none (fast path) | 5709.5 | 69336.2 | 11033.3 | 45192.4 | 29985.8 | 15352.7 |
| Routing | 25 simple queues | 5252.4 | 63785.1 | 6355.7 | 26032.9 | 6079.5 | 3112.7 |
| Routing | 25 ip filter rules | 3789.4 | 46018.5 | 3797 | 15552.5 | 3267.1 | 1672.8 |
| Routing | none (L3HW) | 16254.8 | 197398.3 | 46992.5 | 192481.3 | 284090.9 | 145454.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| CCR2216-1G-12XS-2XQ | AL73400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 179.7 | 2012.6 | 186.4 | 763.5 | 182.8 | 93.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 366.8 | 4108.2 | 667.3 | 2733.3 | 668.8 | 342.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 366.8 | 4108.2 | 666.2 | 2728.8 | 670.4 | 343.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 366.2 | 4101.4 | 667.6 | 2734.5 | 668.8 | 342.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 366.2 | 4101.4 | 670 | 2744.3 | 670.4 | 343.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: https://www.youtube.com/watch?v=7_uLxZYYEpQ
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
CCR2216-1G-12XS-2XQ-Brochure.pdf (1.89 MB)
CCR2216-1G-12XS-2XQ-Dimensions.pdf (0.21 MB)
CCR2216-1G-12XS-2XQ-Block-Diagramm.pdf (0.04 MB)
