MikroTik MTAD-5G-30D3 - mANT30
Product.Nr.: MTAD-5G-30D3
Manufacturer: MikroTik
104,72 EUR
incl. 19 % VAT
product description
#1: MTAD-5G-30D3 - mANT30

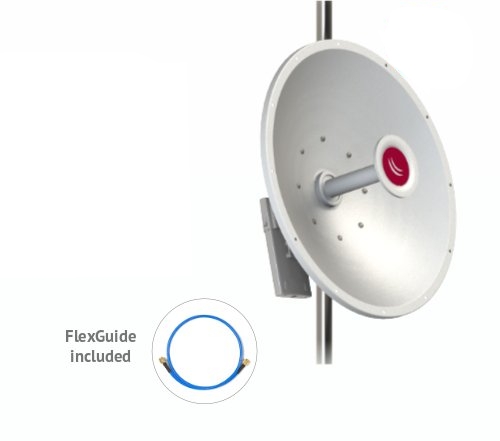

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
- Note: Basebox wireless device pictured for illustrative purposes. It is not included
#2: Included in delivery
- 1x MTAD-5G-30D3 (mANT30)
#3: Specifications - Technical details
Details | |
---|---|
Product code | MTAD-5G-30D3 |
Beamwidth | +/-2.5 deg |
Certification | CE, ROHS |
Connector | 2x RP-SMA Female (outside thread) |
Cross Polarization | >40 dB |
Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
Elevation adjustment range | +/- 20 deg |
Frequency Range | 4.7-5.875 GHz |
Front-to-Back Ratio | >30 dB |
Impedance | 50 ohms |
Outdoor Rating | ETSI EN 300 019-2-4 |
Packaged size | 73x73x20cm (29x29x8in) |
Packaged weight | 7.5 kg (16.5 lbs) |
Polarization | Vertical and Horizontal |
Pole Mount Diameter Range | 3 to 7cm (1.2 to 2.75in) |
Port to Port Isolation | >40dB min |
Power Rating | 100W |
Reflector | Aluminum |
Standards | EN 302 326 DN1, DN2, DN3, DN5 |
Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
VSWR | ≤ 1.4 typ, ≤ 1.8 max |
Weight | 4.8kg (10.7 lbs) |
Wind Load (125 mph) | 181.4kg (400 lbs) at 125 mph, 50 kg at 40 m/s, 28 kg at 30 m/s |
Wind Survivability | 201kph (125mph) |
#4: Test results according to RFC2544
-
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
MTAD-5G-30D3-Brochure.pdf (0.51 MB)
MTAD-5G-30D3-Quick-Guide.pdf (2.14 MB)
MTAD-5G-30D3-Assembly-instructions.pdf (2.62 MB)
MTAD-5G-30D3-Slant-instructions.pdf (2.45 MB)
