Mikrotik RB2011iL-RM
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
The RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports!

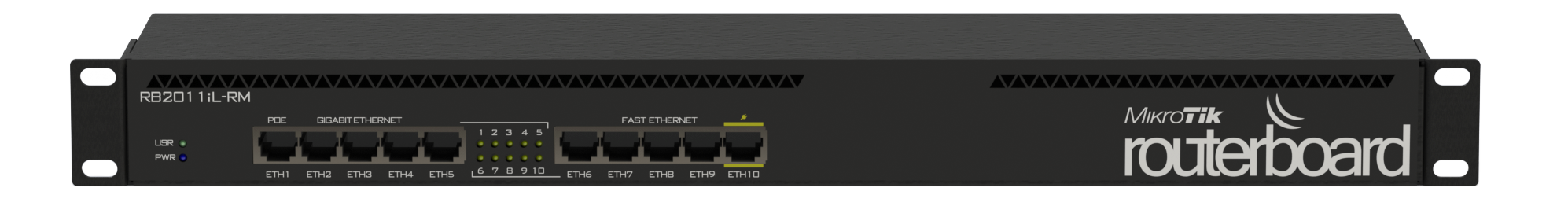

RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.
Content of delivery:
- RB2011iL-RM
- 24V 1.2A power adapter
Technical details:
Product code | RB2011iL-RM |
CPU nominal frequency | 600 MHz |
CPU core count | 1 |
Architecture | MIPS-BE |
Size of RAM | 64 MB |
10/100 Ethernet ports | 5 |
10/100/1000 Ethernet ports | 5 |
Power Jack | 1 |
PoE out | Yes |
PoE in | Yes |
Supported input voltage | 8 V - 30 V |
Operating System | RouterOS |
Tested ambient temperature | -35C to +65C |
License level | 4 |
CPU | AR9344 |
Max Power consumption | 6W |
Storage type | NAND |
Storage size | 128 MB |
Wireless details:
-
Ethernet details:
RB2011iL-RM | AR9344 1G&100M all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 122.0 | 1,481.6 | 232.0 | 950.3 | 269.6 | 138.0 |
Bridging | 25 bridge filter rules | 83.6 | 1,015.2 | 86.0 | 352.3 | 87.6 | 44.9 |
Routing | none (fast path) | 122.0 | 1,481.6 | 210.0 | 860.2 | 226.9 | 116.2 |
Routing | 25 simple queues | 100.5 | 1,220.5 | 103.9 | 425.6 | 106.6 | 54.6 |
Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Switching details:
-
Mikrotik-Store.eu note:
from our Blog:
- Übersicht über unser Mikrotik-Angebot
- RouterOS Funktionen
- Produktbezeichnungen
- RouterOS Lizenzen
- Erstinbetriebnahme
Meaning of "RB2011iL-RM":
- RB = RouterBOARD
- 2011= Series + 11x wired interfaces
- i=PoE-Out on Port 10
- L=Light Edition
- -
- RM=Rackmount (fits 19" racks)
-
Do you have any further questions or are you interested in this product, but do not know exactly whether it is suitable for your purposes? Please write us an e-mail with your exact request: sales at mikrotik - store dot eu - With the subject: "Question about RB2011iL-RM"
-
Downloads
RB2011iL-RM-BlockDiagramm.png.zip (0.04 MB)
RB2011iL-RM-Brochure.pdf (0.51 MB)
RB2011iL-RM-QuickGuide.pdf (0.53 MB)
