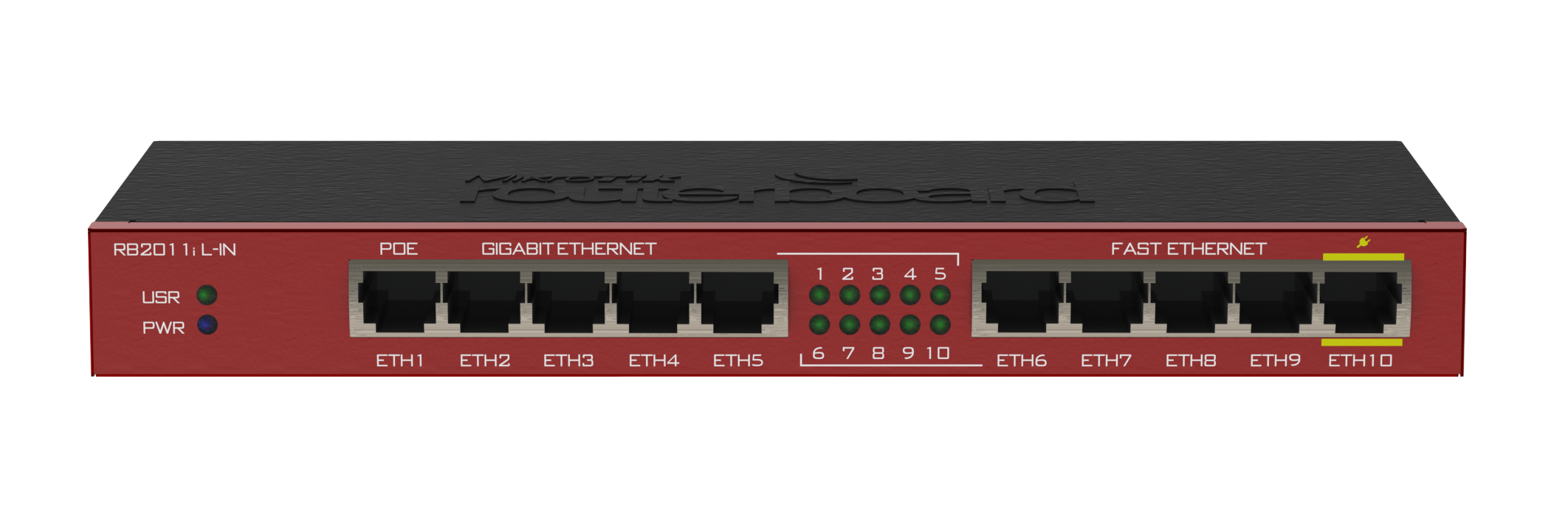

Description: Mikrotik RB2011iL-IN
Mikrotik's RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011iL-IN is the most basic model, with five Gigabit ethernet ports, five Fast ethernet ports, power jack and PoE support.
It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
RouterBOARD 2011iL-IN comes with desktop enclosure and power supply.
Wall mount kit for network closet is available for purchase as an optional accessory.
Content of delivery:
- RB2011iL-IN
- 24V 0.8A power supply
Specifications
Details | |
---|---|
Product code | RB2011iL-IN |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 214x86mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -35C to +65C |
Powering
Details | |
---|---|
PoE in | Passive PoE |
PoE out | Passive PoE |
PoE in input Voltage | 8-30 V |
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 8-30 V |
Max out per port output (input < 30 V) | 500 mA |
Max total out (A) | 500 mA |
Max power consumption | 18 W |
Max power consumption without attachments | 6 W |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 5 |
10/100/1000 Ethernet ports | 5 |
-
Ethernet test results
RB2011iL-IN | AR9344 1G&100M all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 122.0 | 1,481.6 | 232.0 | 950.3 | 269.6 | 138.0 |
Bridging | 25 bridge filter rules | 83.6 | 1,015.2 | 86.0 | 352.3 | 87.6 | 44.9 |
Routing | none (fast path) | 122.0 | 1,481.6 | 210.0 | 860.2 | 226.9 | 116.2 |
Routing | 25 simple queues | 100.5 | 1,220.5 | 103.9 | 425.6 | 106.6 | 54.6 |
Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Downloads
RB2011iL-IN-BlockDiagramm.zip (0.04 MB)
RB2011iL-IN-Brochure.pdf (0.51 MB)
RB2011iL-IN-Design-file-STEP.zip (0.98 MB)
RB2011iL-IN-QuickGuide.pdf (0.53 MB)
