Teltonika PR318EUA
Art.Nr.: PR318EUA
Hersteller: Teltonika
60,33 EUR
incl. 19 % USt
-
Sofort versandfähig, geringe Stückzahl
- Gewicht 0,62 kg
Produktbeschreibung

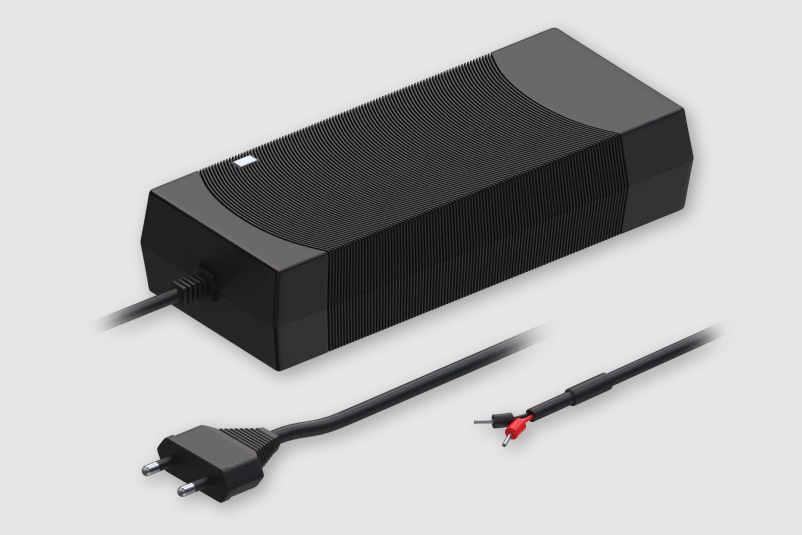

#1: PR318EUA
EU 2-PIN POWER SUPPLY, 130W
#2: Im Lieferumfang enthalten
- PR318EUA
#3: Features
TECHNICAL DATA
-
GENERAL
-
Input voltage
100 – 240 VAC
-
Input frequency
50 / 60 Hz
-
Input current
2.5 A
-
Input connector
EU (Type C)
-
Output voltage
50 VDC
-
Output current
2.6 A
-
Output connector
2-pin, with cord end terminals
-
Weight
500 g
-
ADDITIONAL
-
Input voltage range
90 – 264 VAC
-
Input frequency range
47 – 63 Hz
-
Maximum input inrush current
50 A
-
Output voltage maximum deviation
47.5 – 52.5 VDC
-
Short circuit protection
✓
-
HIPOT (dielectric withstand test)
Primary to Secondary: 4242 VDC
-
MTBF
50000 h
-
PSU efficiency standard
DoE Level VI
-
Certification
Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008
EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
