MikroTik RBwAPG-60ad - wAP 60G

Name: MikroTik RBwAPG-60ad - wAP 60G
Brand: MikroTik
SKU: RBwAPG-60ad
Price: 117.81 EUR
Availability: InStock

Art.Nr.: RBwAPG-60ad

Hersteller: MikroTik

117,81 EUR
incl. 19 % USt

zzgl. Versandkosten

Sofort versandfähig
Gewicht 0,6 kg

Stück

Produktbeschreibung

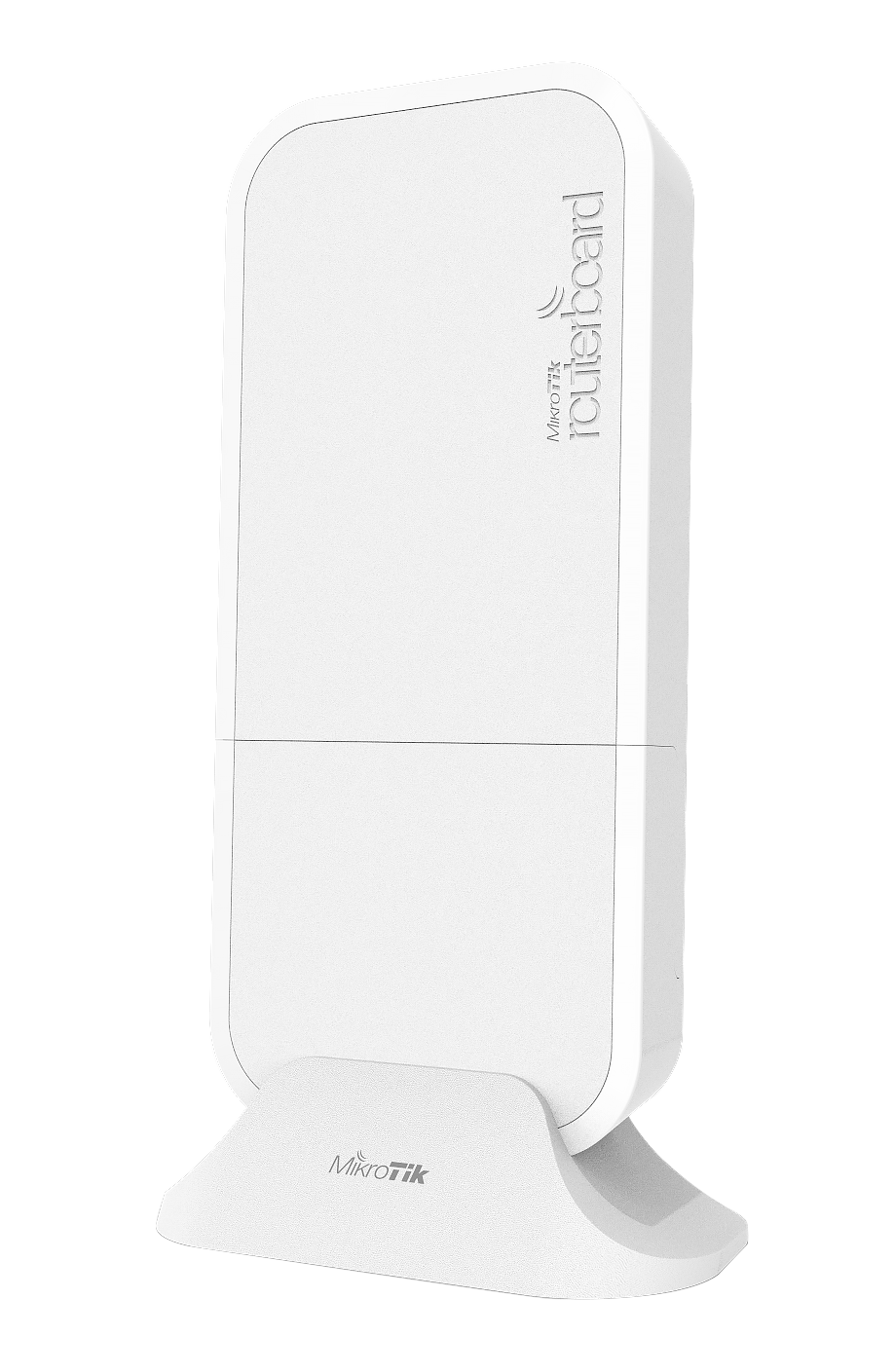

#1: RBwAPG-60ad - wAP 60G

Der wAP 60G ist ein wetterfestes integriertes 60-GHz-Wireless-Gerät, das im Innen- oder Außenbereich als Point-to-Point- oder CPE-Gerät verwendet werden kann. Die Box enthält ein Wandmontageset, Gurte für die Mastmontage, Netzteil, PoE-Injektor und auch einen Tischständer für die Verwendung des Geräts in Innenräumen. Durchdringt je nach Material einige Fenster.

wAP 60G verbindet sich mit 60 GHz AP für Entfernungen von 200m+ (bis zu 8 Clients kann man somit auf einen AP verbinden)
Ebenso kann man mit zwei dieser Modelle (wAP 60G) einen Gigabit Punkt-zu-Punkt-Funklink realisieren!

#2: Im Lieferumfang enthalten

1x RBwAPG-60ad (wAP 60G)
1x Schlauchschelle (Metall)
1x Kabelbinder (Plastik)
1x wAP Desktop Standfuß
1x 24V 0.38A Netzteil
1x wAP Deckenhalterung
1x Gigabit PoE Injektor

#3: Spezifikationen - Technische Details

Details
Product code	RBwAPG-60ad
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	185 x 85 x 30 mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	5 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

Ethernet

Details
10/100/1000 Ethernet ports	1

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	55

#4: Test-Resultate nach RFC2544

Ethernet test results

RBwAPG-60ad		IPQ-4019 1G one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81,2	986.1	234,9	962.2	1482,6	759.1
Bridging	25 bridge filter rules	81,2	986.1	227,7	932.7	231,9	118.7
Routing	none (fast path)	81,2	986.1	235,1	963.0	1421,8	728.0
Routing	25 simple queues	81,2	986.1	235,1	963.0	458,3	234.6
Routing	25 ip filter rules	81,2	986.1	234,9	962.2	236,8	121.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBwAPG-60ad		IPQ-4018 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	37.9	424.5	59	241.7	61.6	31.5
256 tunnels	AES-128-CBC + SHA1	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-128-CBC + SHA256	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-256-CBC + SHA1	34.4	385.3	37.9	155.2	39.8	20.4
256 tunnels	AES-256-CBC + SHA256	34.4	385.3	37.9	155.2	39.8	20.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
