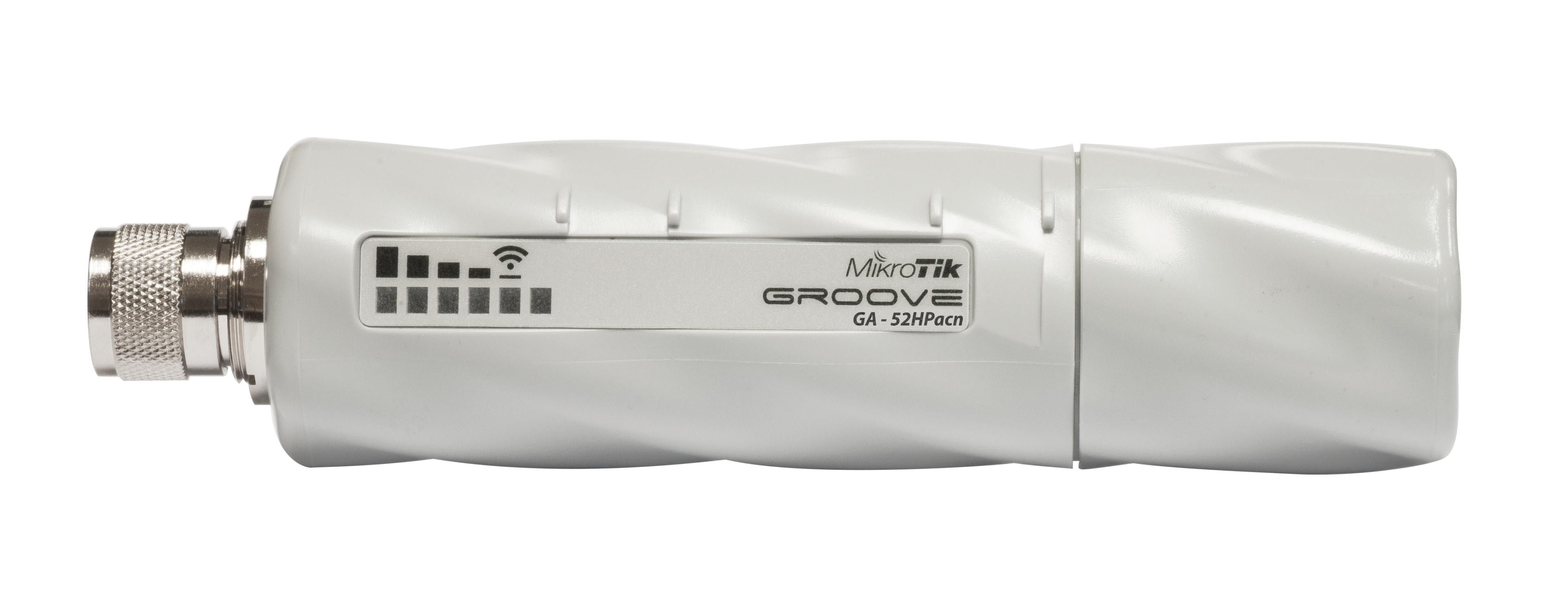

MikroTik RBGrooveGA-52HPacn - GrooveA 52 ac
Art.Nr.: RBGrooveGA-52HPacn
Hersteller: MikroTik
101,51 EUR
incl. 19 % USt
-
Sofort versandfähig
- Lieferzeit sofort lieferbar
- Gewicht 0,6 kg
Produktbeschreibung
#1: RBGrooveGA-52HPacn - GrooveA 52 ac
MikroTiks kleinstes Modell der Outdoor-Serie - ein voll ausgestattetes drahtloses RouterBOARD mit RouterOS.
Wetterfest, langlebig und einsatzbereit. Jetzt mit 802.11ac-Unterstützung, einem Gigabit-Ethernet-Port und einem wählbaren Wireless-Band (2,4GHz oder 5GHz, bis zu 80 MHz Wide Channel). Mit dem neuen Gigabit-Port können Sie die Vorteile der 802.11ac-Hochgeschwindigkeits-Wireless-Technologie voll ausschöpfen.
- RBGrooveGA-52HPacn (International) unterstützt die Frequenzbereiche 2412-2484MHz und 5150MHz-5875MHz (Der spezifische Frequenzbereich kann durch länderspezifische Vorschriften eingeschränkt sein).
#2: Im Lieferumfang enthalten
- 1x RBGrooveGA-52HPacn (GrooveA 52 ac)
- 1x 24V 0.38A Netzteil
- 1x Gigabit PoE Injektor

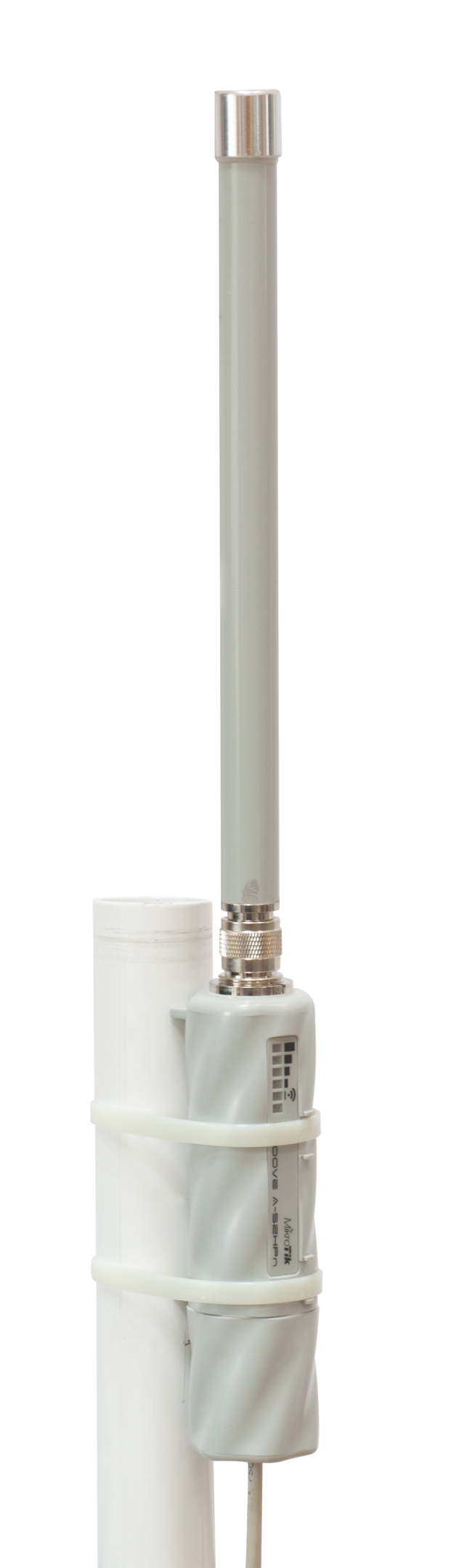

- 1x 6dBi (2.4GHz) / 8dBi (5GHz) omni (360°) Antenne
- 1x Schlauchschelle (Metall)
#3: Spezifikationen - Technische Details
| Details | |
|---|---|
| Product code | RBGrooveGA-52HPacn |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 177 x 44 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz/2.4 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz/2.4 GHz number of chains | 1 |
| Wireless 5 GHz/2.4 GHz standards | 802.11b/g/n, 802.11a/n/ac |
| Antenna gain dBi for 5 GHz/2.4 GHz | 6 |
| Wireless 5 GHz/2.4 GHz chip model | QCA9889 |
| Wireless 5 GHz/2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 24 | -97 |
| 11MBit/s | 21 | -91 |
| 6MBit/s | 24 | -93 |
| 54MBit/s | 21 | -77 |
| MCS0 | 24 | -93 |
| MCS7 | 20 | -72 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -93 |
| 54MBit/s | 21 | -78 |
| MCS0 | 26 | -93 |
| MCS7 | 21 | -74 |
| MCS9 | 19 | -69 |
#4: Test-Resultate nach RFC2544
Ethernet test results
| RBGrooveGA-52HPacn | QCA9556 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 576.7 | 295.3 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 123.7 | 506.7 | 117.8 | 60.3 |
| Routing | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 454.8 | 232.9 |
| Routing | 25 simple queues | 81.2 | 986.1 | 152.6 | 625.0 | 137.2 | 70.2 |
| Routing | 25 ip filter rules | 69.4 | 842.8 | 66.3 | 271.6 | 68.7 | 35.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktvideo & Tipps
- Produktvideo: -
- Hinweise für den Start und Umgang mit RouterOS in unserem Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RBGrooveGA-52HPacn-Brochure.pdf (0.38 MB)
RBGrooveGA-52HPacn-Block-Diagramm.pdf (0.04 MB)
