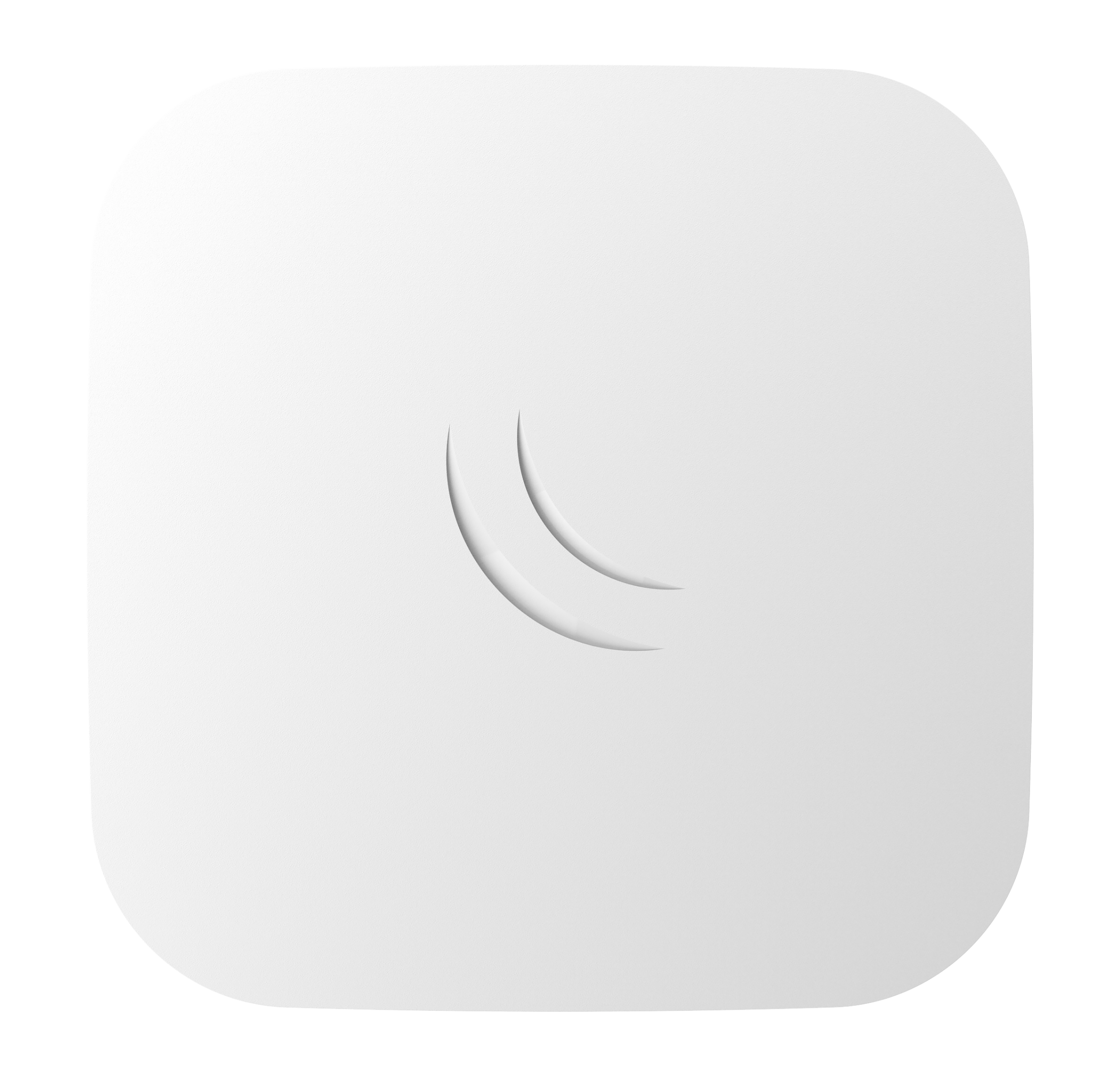

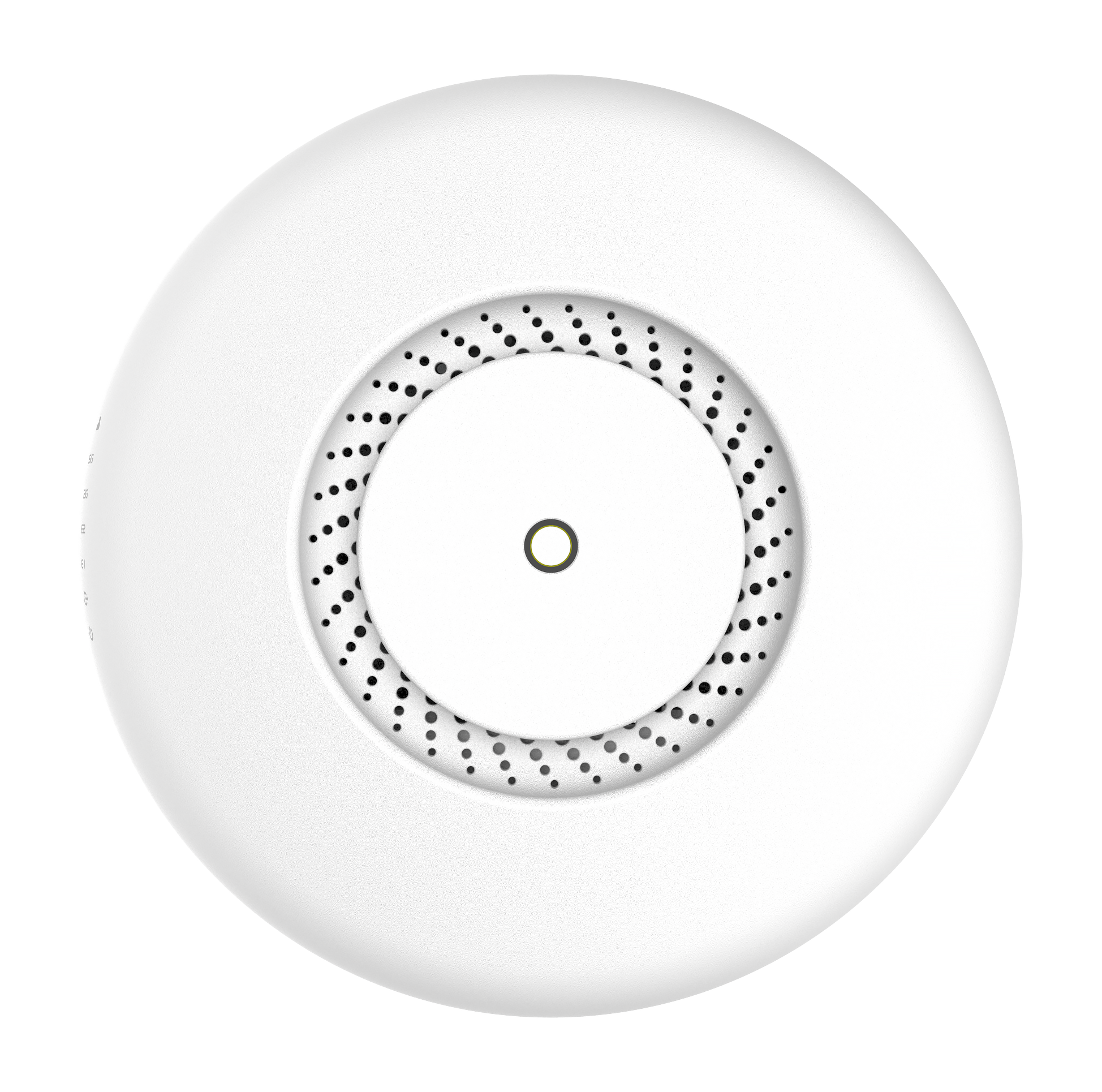

MikroTik RBcAPGi-5acD2nD - cAP ac

Name: MikroTik RBcAPGi-5acD2nD - cAP ac
Brand: MikroTik
SKU: RBcAPGi-5acD2nD
Price: 86.5 EUR
Availability: InStock

Art.Nr.: RBcAPGi-5acD2nD

Hersteller: MikroTik

86,50 EUR
incl. 19 % USt

zzgl. Versandkosten

Sofort versandfähig
Gewicht 0,85 kg

Produktbeschreibung

#1: RBcAPGi-5acD2nD - cAP ac

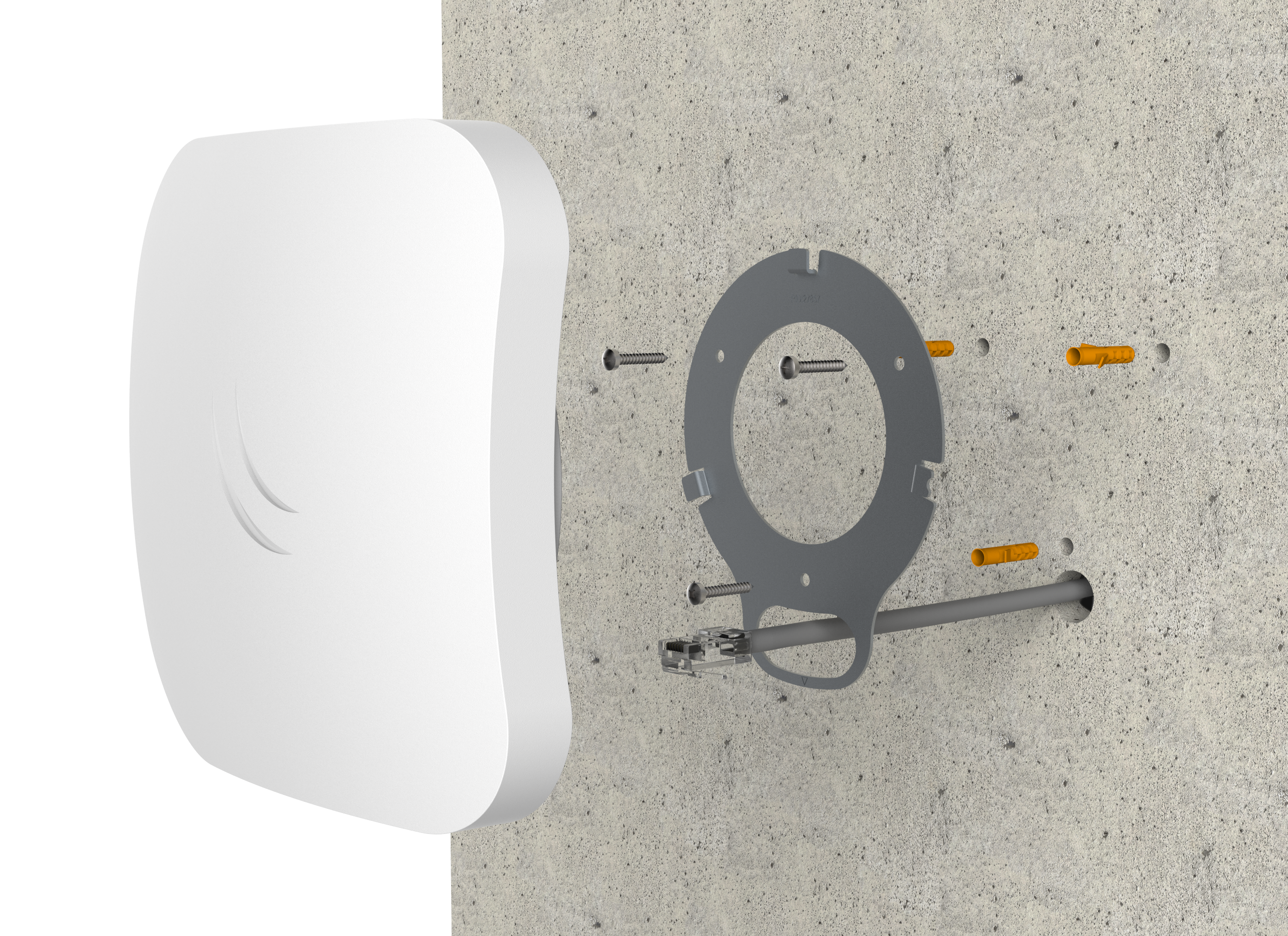

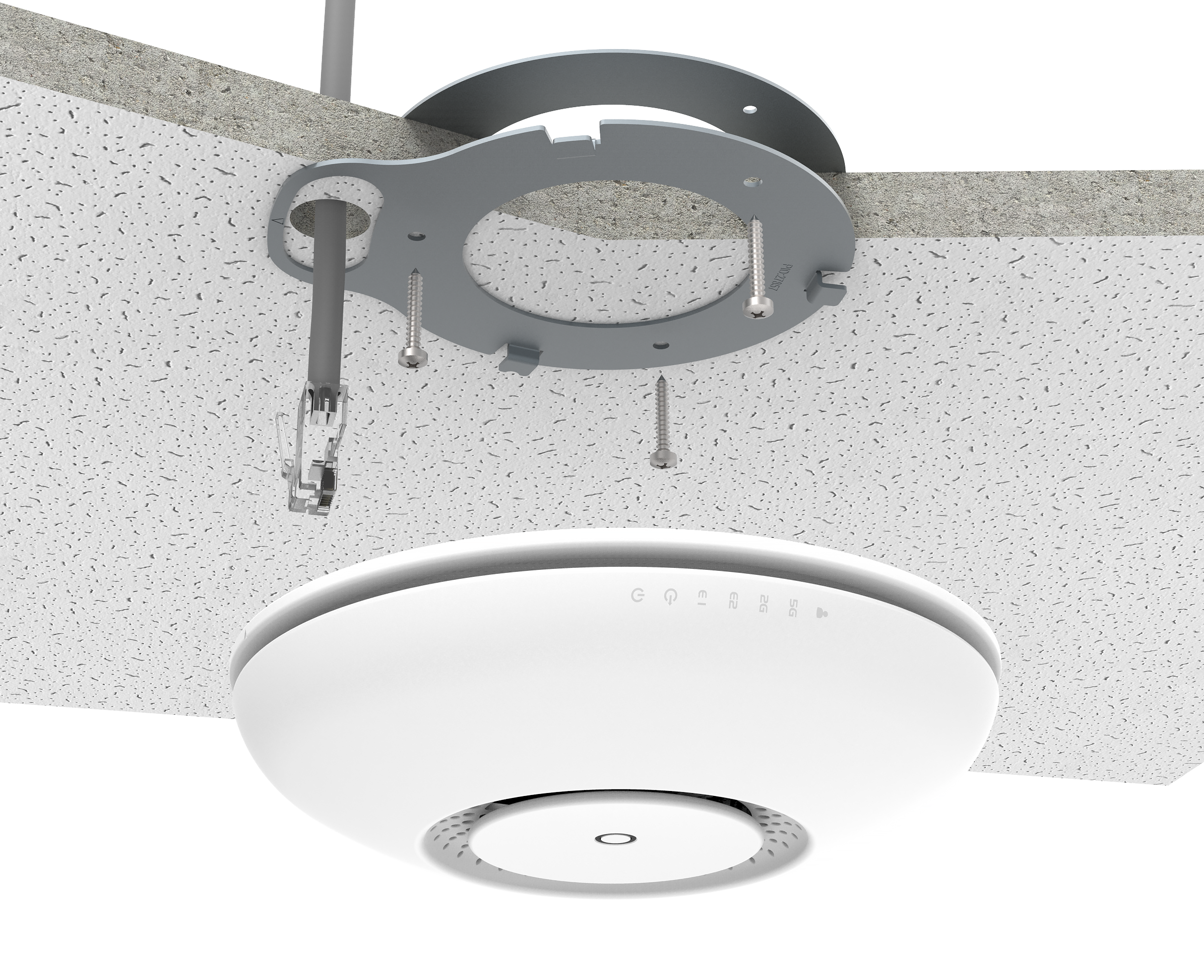

Mikrotiks cAP ac ist ein sehr zuverlässiger und leistungsstarker Wireless Access Point welcher vom Design her sehr gut in jedes Haus auch mit gehobenen Ansprüchen an Form und Design passt (sowohl an Decken als auch an Wänden). Der gleichzeitig (parallel in 2,4GHz und 5GHz in 802.11ac samt Vorgänger-Standards) als Dual-Band AP fungierende Wlan-Router bietet eine 360° Rundumversorgung an.

Trotzdem die Wlan-Interfaces auch den Repeater-Mode unterstützen, erweitern einem die beiden Ethernet Ports insofern die Möglichkeiten als dass man sein Netzwerk auch über Kabel anbinden kann, auch für den Falls, dass das Gerät mit PoE versorgt werden muss. Der cAP ac unterstützt 802.3af/at PoE Input auf dem ersten Port und passiven PoE Output (Mikrotik PoE Output) auf dem zweiten Port.

- cAP ac (International) unterstützt die Frequenzen 2412-2484MHz und 5150MHz-5875MHz abhängig vom jeweiligen Länderrecht.

#2: Im Lieferumfang enthalten

1xRBcAPGi-5acD2nD
1x 24V 1.2A Netzteil
1x Decken-/Wandbefestigungs-Set
1x Gigabit PoE-Injektor
K-46 Schrauben-Set

#3: Spezifikationen - Technische Details

Details
Product code	RBcAPGi-5acD2nD
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
Switch chip model	IPQ-4018
Dimensions	Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 50°C
IPsec hardware acceleration	Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	IPQ-4018
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2.5
Wireless 5 GHz chip model	IPQ-4018
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC1200

Ethernet

Details
10/100/1000 Ethernet ports	2

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	24 W
Max power consumption without attachments	13 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	17-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	500 mA
Max out per port output (input 30-57 V)	400 mA
Max total out (A)	500 mA

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS

Other

Details
Mode button	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	26	-100
11MBit/s	26	-94
6MBit/s	26	-96
54MBit/s	23	-78
MCS0	26	-96
MCS7	22	-73

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	26	-96
54MBit/s	21	-80
MCS0	26	-96
MCS7	20	-75
MCS9	18	-70

#4: Test-Resultate nach RFC2544

Ethernet test results

RBcAPGi-5acD2nD		IPQ-4018 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162.5	1973.4	469.9	1924.7	1484.8	760.2
Bridging	25 bridge filter rules	162.1	1968.5	352.9	1445.5	359.2	183.9
Routing	none (fast path)	162.5	1973.4	469.9	1924.7	1488	761.9
Routing	25 simple queues	162.5	1973.4	469.9	1924.7	506.3	259.2
Routing	25 ip filter rules	162.2	1969.8	240.8	986.3	242.9	124.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBcAPGi-5acD2nD		IPQ-4018 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	37.9	424.5	59	241.7	61.6	31.5
256 tunnels	AES-128-CBC + SHA1	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-128-CBC + SHA256	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-256-CBC + SHA1	34.4	385.3	37.9	155.2	39.8	20.4
256 tunnels	AES-256-CBC + SHA256	34.4	385.3	37.9	155.2	39.8	20.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
