MikroTik RB921GS-5HPacD-19S - mANTBox 19s
Art.Nr.: RB921GS-5HPacD-19S
Hersteller: MikroTik
199,90 EUR
incl. 19 % USt
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- Lieferzeit End of Life - Discontinued - Nichtmehr lieferbar!
- Gewicht 3,3 kg
Produktbeschreibung

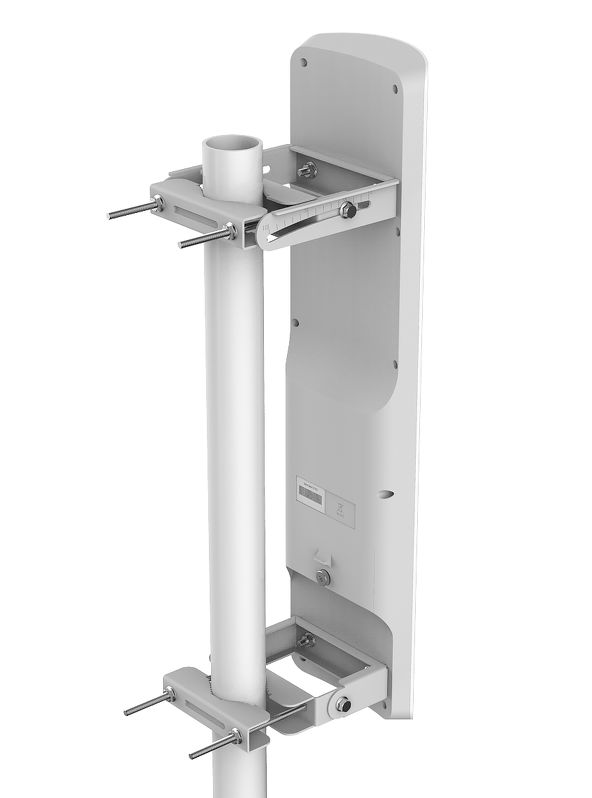

#1: RB921GS-5HPacD-19S - mANTBox 19s
Die mANTBox basiert auf MikroTiks mANT-Sektorantennen, hat aber auch einen Wireless Router eingebaut. Die mANTBox wird mit dem RB921-Gerät betrieben und ist sofort einsatzbereit, da alles im Lieferumfang enthalten ist. Das Gerät verwendet eine Hochgeschwindigkeits-CPU mit 720MHz und verfügt über ein eingebautes 802.11 ac/a/n Wireless-Gerät mit bis zu 31dBm Ausgangsleistung. mANTBox 19s wird mit einer 19dBi 120 Grad Sektorantenne geliefert.
- RB921GS-5HPacD-19S (International) unterstützt den Frequenzbereich von 5,17 - 5,835 GHz (Der spezifische Frequenzbereich kann durch länderspezifische Vorschriften eingeschränkt sein).
#2: Im Lieferumfang enthalten
- 1x RB921GS-5HPacD-19S (mANTBox 19s)
- 1x 24V 0.8A Netzteil
- 1x Gigabit PoE Injektor
- 1x Mastbefestigung
- 1x K-40 Kit
#3: Spezifikationen - Technische Details
| Details | |
|---|---|
| Product code | RB921GS-5HPacD-19S |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 152 x 598 x 78 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 13 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 19 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
#4: Test-Resultate nach RFC2544
Ethernet test results
| RB921GS-5HPacD-19S | QCA9557 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 477.7 | 244.6 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 118.4 | 485.0 | 119.5 | 61.2 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 408.2 | 209.0 |
| Routing | 25 simple queues | 81.2 | 986.1 | 158.3 | 648.4 | 165.8 | 84.9 |
| Routing | 25 ip filter rules | 64.8 | 786.9 | 70.4 | 288.4 | 60.9 | 31.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktvideo & Tipps
- Produktvideo: -
- Hinweise für den Start und Umgang mit RouterOS in unserem Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
