Produktbeschreibung

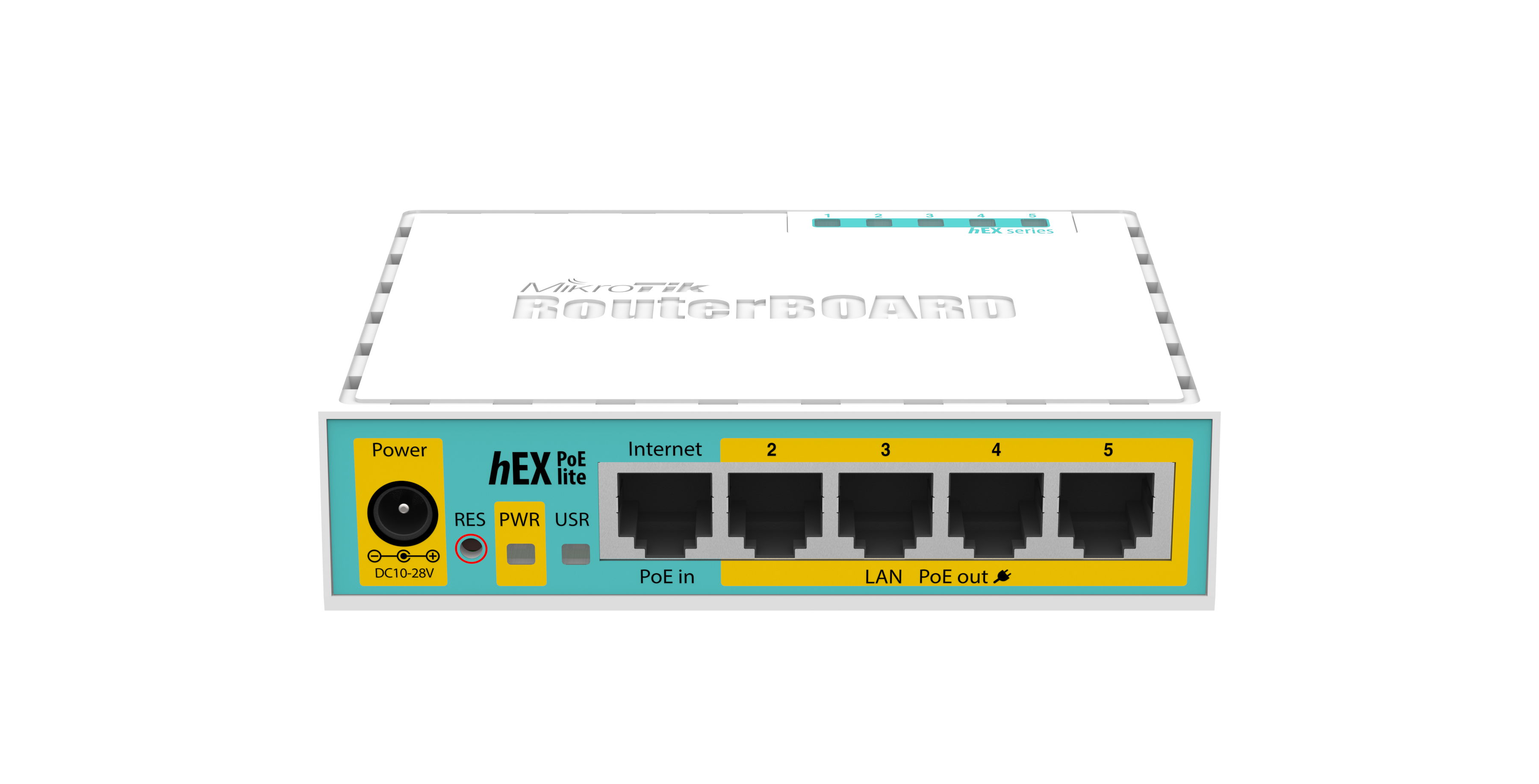

#1: RB750UPr2 - hEX PoE lite
hEX PoE lite ist ein kleiner Ethernet-Router mit fünf Anschlüssen in einem Kunststoffgehäuse. Er verfügt über einen USB 2.0-Anschluss und einen PoE-Ausgang. Die Ports 2-5 können andere PoE-fähige Geräte mit der gleichen Spannung versorgen, die auch am Gerät anliegt. Weniger Stromadapter und Kabel, um die man sich kümmern muss! Die maximale Stromstärke beträgt 1A pro Anschluss, die Ethernet-Anschlüsse sind abgeschirmt. Es ist erschwinglich, klein und einfach zu bedienen. Mit seinem kompakten Design und der klaren Optik passt er perfekt in jede SOHO-Umgebung.
#2: Im Lieferumfang enthalten
- 1x RB750UPr2 (hEX PoE lite)
- 1x 24V 2,5A Netzteil
- 1x Kaltgerätekabel (IEC Cord)
#3: Spezifikationen - Technische Details
Details | |
---|---|
Product code | RB750UPr2 |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Switch chip model | QCA9531 |
Dimensions | 113x89x28mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 8-30 V |
Max power consumption | 51 W |
Max power consumption without attachments | 3 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 8-30 V |
PoE-out
Details | |
---|---|
PoE-out ports | Ether2-Ether5 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 1 A |
Max total out (A) | 2 A |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
#4: Test-Resultate nach RFC2544
Ethernet test results
RB750UPr2 | QCA9531 (650Mhz) 100M all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 217.0 | 111.1 |
Bridging | 25 bridge filter rules | 40.6 | 493.0 | 70.1 | 287.1 | 70.9 | 36.3 |
Routing | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 200.8 | 102.8 |
Routing | 25 simple queues | 40.6 | 493.0 | 79.6 | 326.0 | 90.8 | 46.5 |
Routing | 25 ip filter rules | 40.6 | 493.0 | 42.2 | 172.8 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktvideo, Files & Tipps
- Produktvideo: -
- Files (RouterBoot Firmware): https://i.mt.lv/cdn/rb_bootloaders/qca9531L_3.41.fwf
- Tipps: Hinweise für den Start und Umgang mit RouterOS in unserem Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RB750UPr2-Brochure.pdf (0.29 MB)
RB750UPr2-Block-Diagramm.pdf (0.02 MB)
