MikroTik RB4011iGS+RM
Art.Nr.: RB4011iGS+RM
Hersteller: MikroTik
224,90 EUR
incl. 19 % USt
-
geringer Lagerbestand.
- Lieferzeit sofort lieferbar
- Lagerbestand 2
- Gewicht 1,2 kg
Produktbeschreibung
#1: RB4011iGS+RM

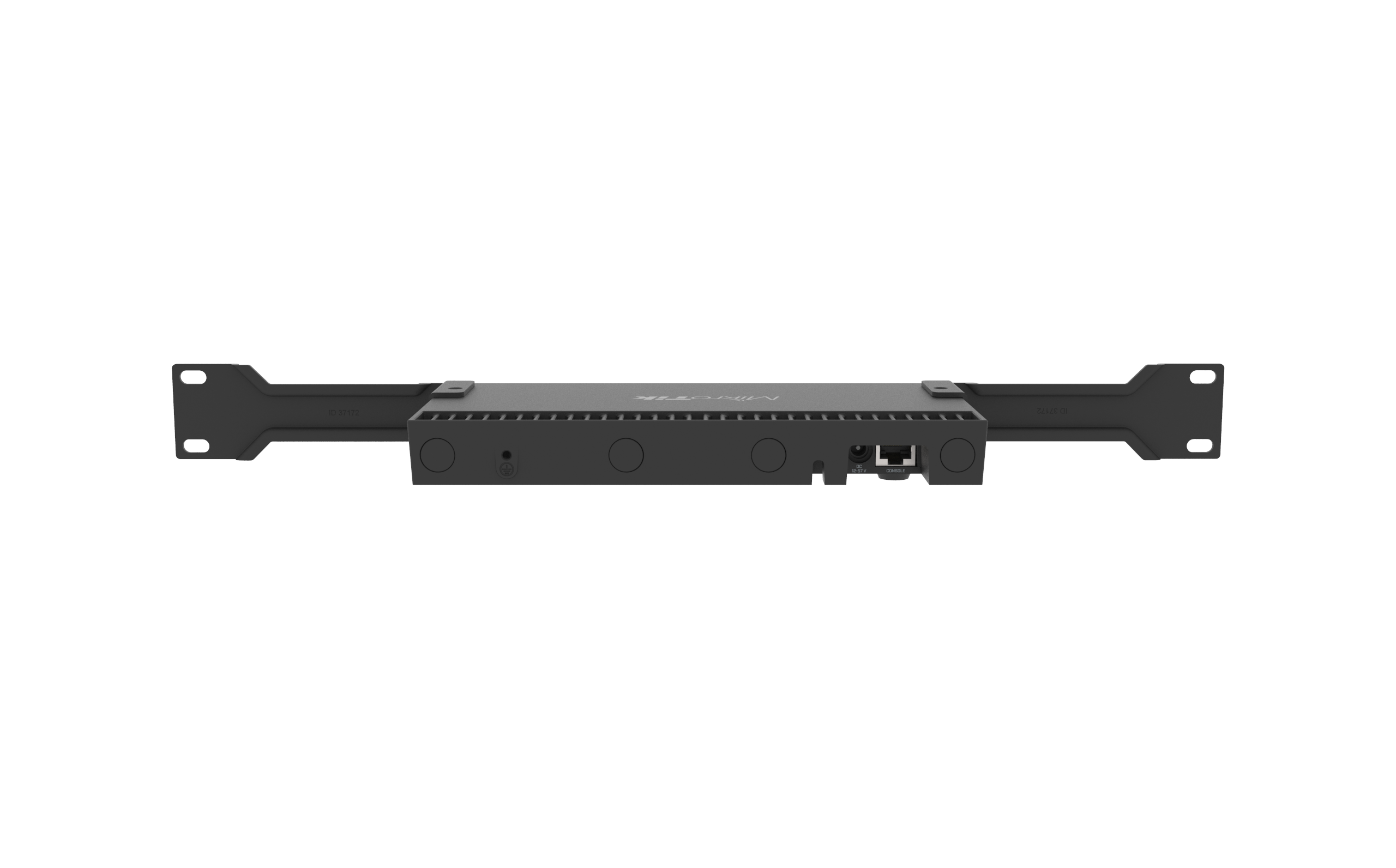

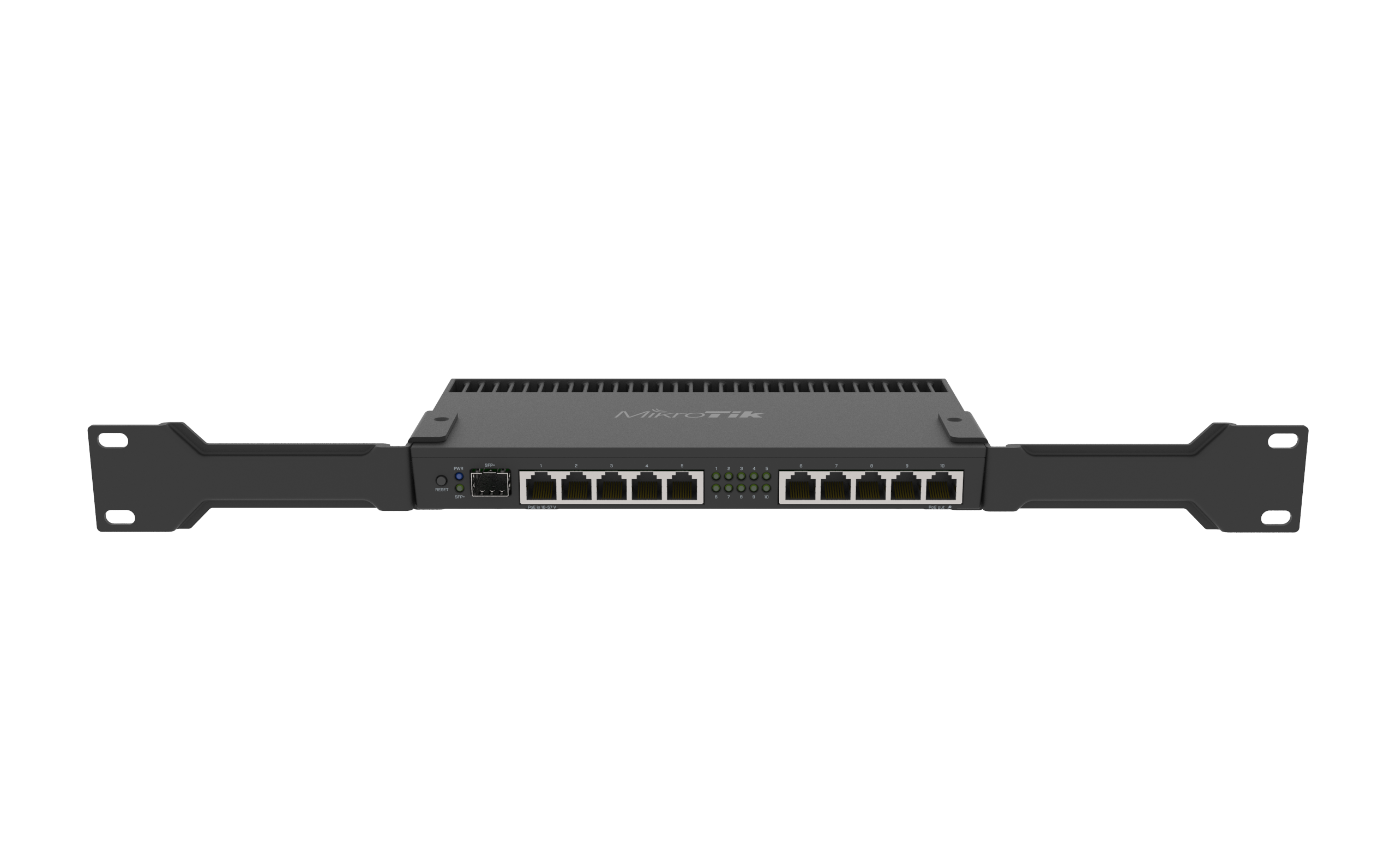

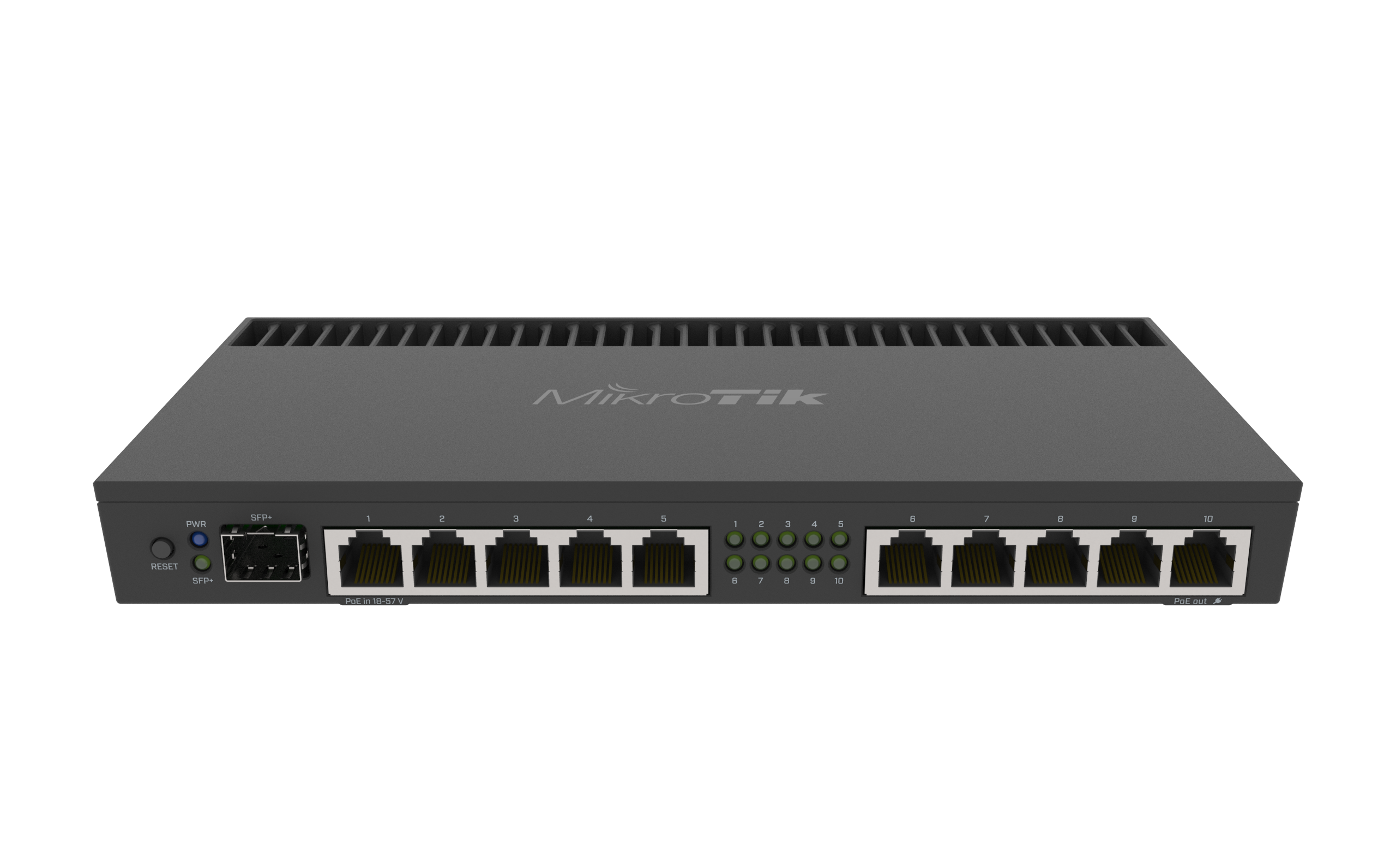

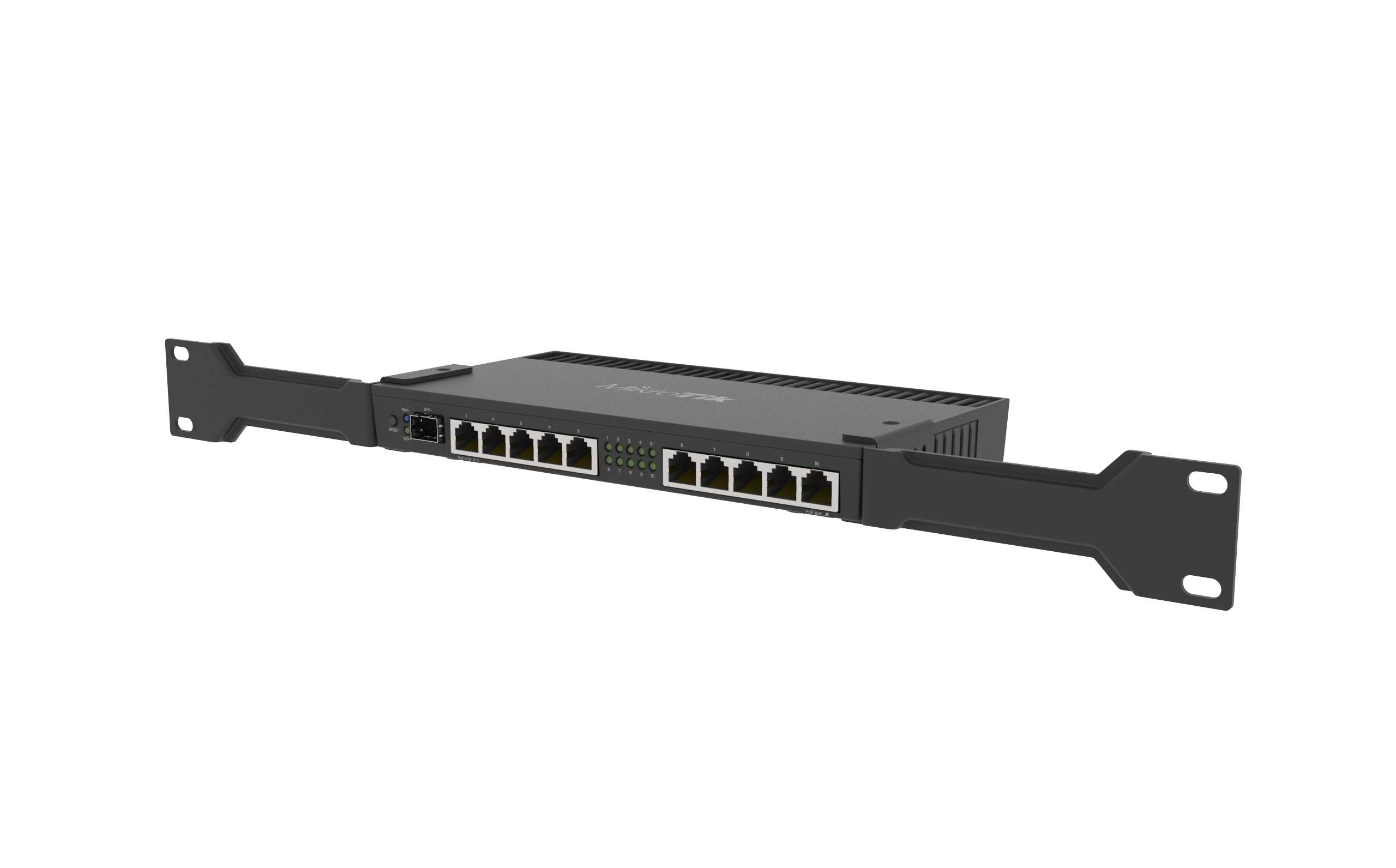

RB4011-Serie - erstaunlich leistungsstarke Router mit zehn Gigabit-Ports, SFP+ 10Gbps-Schnittstelle und IPsec-Hardwarebeschleunigung zu einem günstigen Preis! Der RB4011 verwendet eine Quad-Core-Cortex-A15-CPU, dieselbe wie in unserem Carrier-Grade-Gerät RB1100AHx4. Das Gerät ist mit 1 GB RAM ausgestattet, kann PoE-Ausgang an Port #10 bereitstellen und wird in einem kompakten und professionell aussehenden Metallgehäuse in mattem Schwarz geliefert. RB4011iGS+RM (Ethernet-Modell) enthält zwei Rackmount-Ösen, mit denen das Gerät sicher in einem Standard-1U-Rack befestigt werden kann.
Hinweis: Passive DAC (MikroTik S+DA0001/S+DA0003) werden nicht unterstützt.

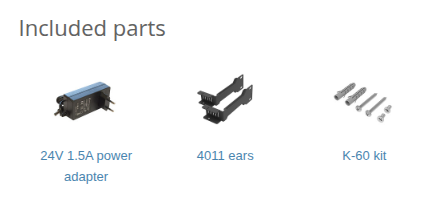

#2: Im Lieferumfang enthalten
- 1x RB4011iGS+RM
- 1x 24V 1.5A Netzteil

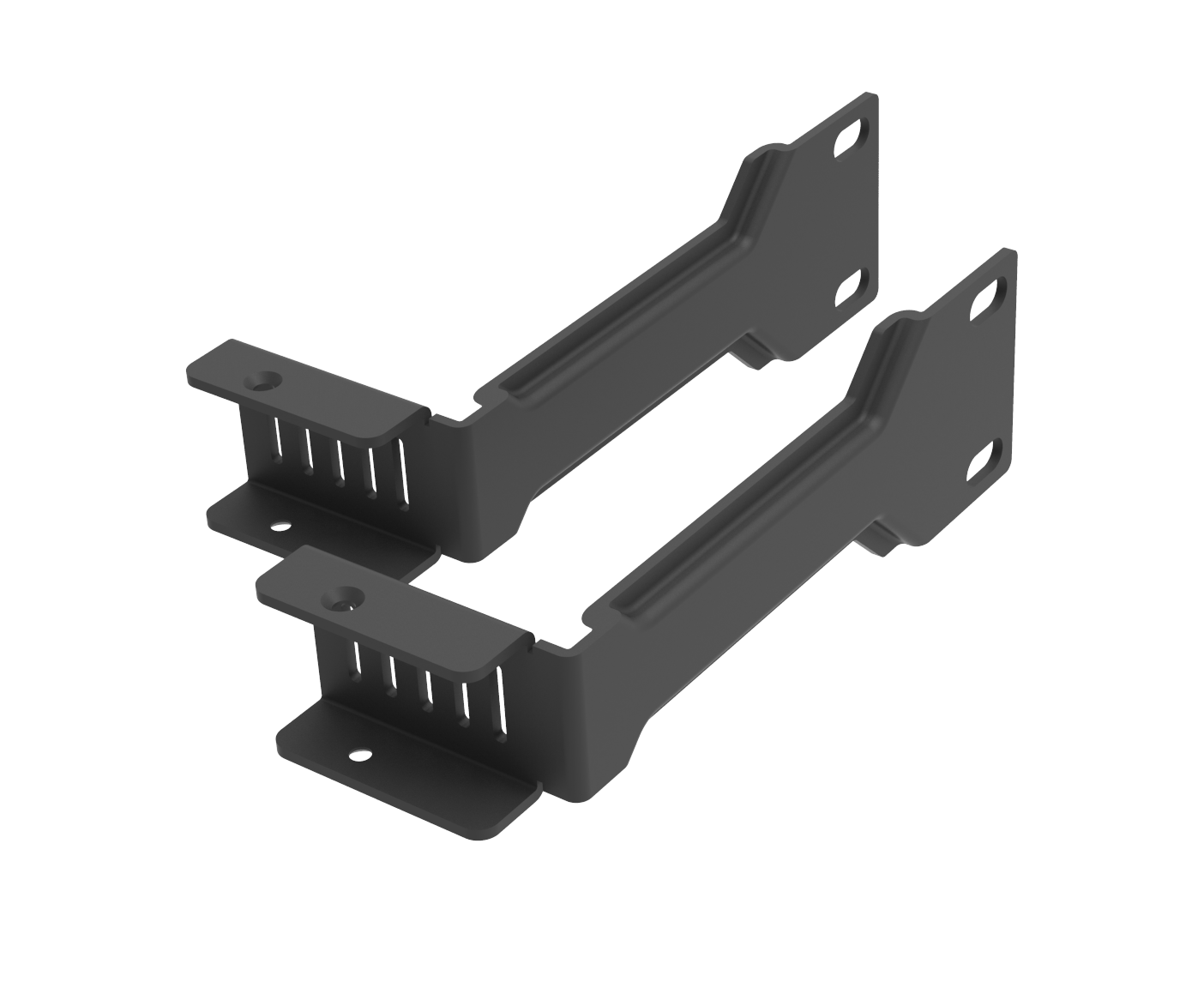

- 1x 1U Rackmount ears Set (4011)
- 1x K-60 screw kit
#3: Spezifikationen - Technische Details
| Details | |
|---|---|
| Product code | RB4011iGS+RM |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1400 MHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C .. +70°C |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 400 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 47 |
| Max power consumption without attachments | 19W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
#4: Test-Resultate nach RFC2544
Ethernet test results
| RB4011iGS+RM | AL21400 1G/S+ all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 806,4 | 9,792.9 | 2312,9 | 9,473.6 | 5509,7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 806,4 | 9,792.9 | 1037,4 | 4,249.2 | 1153,2 | 590.4 |
| Routing | none (fast path) | 806,4 | 9,792.9 | 1923,3 | 7,877.8 | 5092,3 | 2,607.3 |
| Routing | 25 simple queues | 806,4 | 9,792.9 | 1046,6 | 4,286.9 | 960,3 | 491.7 |
| Routing | 25 ip filter rules | 593,7 | 7,209.9 | 625,2 | 2,560.8 | 564,6 | 289.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#5: Produktvideo, Files & Tipps
- Produktvideo: -
- Files: -
- Hinweise für den Start und Umgang mit RouterOS in unserem Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
RB4011iGS-RM-Brochure.pdf (1.86 MB)
RB4011iGSRM-Mounting-Dimensions.pdf (0.53 MB)
RB4011iGSRM-Block-Diagramm.pdf (0.02 MB)
RB4011iGS-RM-IPSec-results.pdf (0.10 MB)
